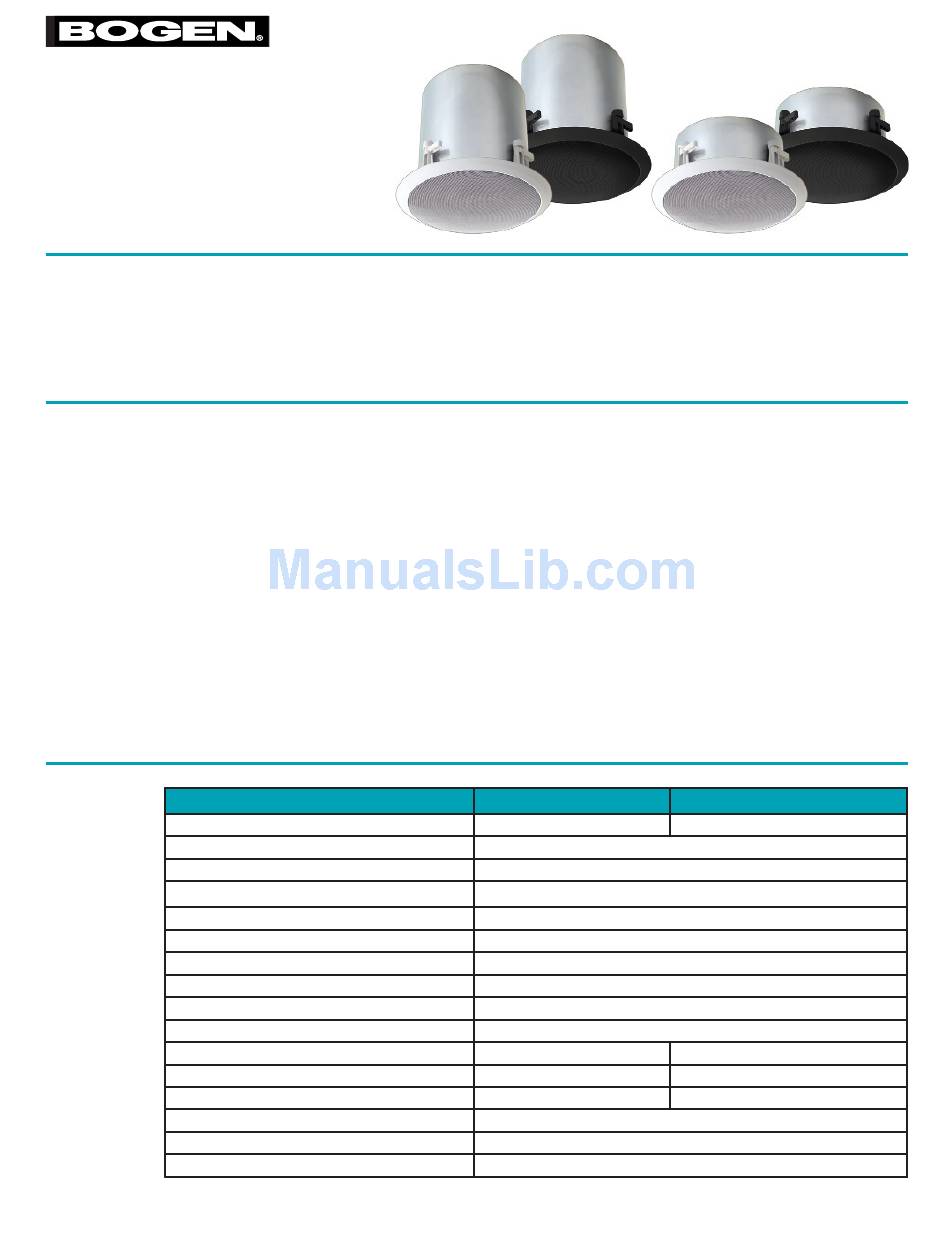

High-Fidelity
Ceiling Speakers
Models:
HFCS1 (Off-white) / HFCS1B (Black)
HFCS1LP (Off-white) / HFCS1LPB (Black)
The Bogen HFCS1(B) and HFCS1LP(B) ceiling loudspeakers deliver superior sound and clear intelligibility in a variety
Description
of ceiling environments.
The system can be easily installed in hard-surfaced ceilings, suspended ceilings, and new constructions.
Both speakers offer several levels of power output controlled via a front-mounted rotary tap selector switch (under grille).
The low-distortion speaker design, coupled with a computer-matched venting system, delivers high intelligibility and
exceptional low-frequency response for both music and speech reinforcement.
Features
• Wide-dispersion coaxial driver for broad, even coverage
• Good off-axis response with smooth contouring
• Computer-matched venting system for full bass output
• Large back can for deeper bass response (HFCS1/B)
• Low-profile housing allows greater range of installations
(HFCS1LP/B)
• High power handling capability for foreground sound
• Selectable power taps via front-mounted control
• Power taps (in watts): 32, 16, 8, 4, 2, and 1 for 70V;
32, 16, 8, 4, and 2 for 100V
• 16-ohm input for non-transformer, multi-speaker
systems (selectable via tap selector switch)
• Compounded rubber surround, plus polypropylene and
polycarbonate drivers for lasting performance
• Easy wiring with plug-in connector
• Integral swing-out clamps for easy installation
Technical
Specifications
Frequency Response (-10 dB) *
Minimum Vertical Clearance Requirement
* Half-Space Response
† Front panel, switch-selected
SPECIFICATIONS
LF Driver
HF Driver
Sensitivity (1W/1m)
Impedance Ratings
Power Input (Max.)
Power Settings (in watts) †
Baffle Material
Back Can Material
Terminations
Product Weight
Speaker Dimensions
Included Accessories
Optional Accessories
Baffle Ring & Grille Color
HFCS1(B)
• Connector provides loop-through terminals for the
next speaker
• Attachment point for seismic cable (safety cable)
• Input terminal cover with knockouts and safety eyelet
provides protection for connections
• Off-white or Black textured finish easily painted to
match theme decor
• Attractive, contemporary, sturdy steel grille assembly
with fine perforations
• Listed to UL Standard 60065 for US and Canada
• Independently tested and meets requirements of
UL-2043 (report available)
• Accessory tile bridge support ring (Model TBCR,
sold separately)
• Accessory 10-foot long cable kit (Model CK10,
sold separately)
HFCS1
65 Hz to 19 kHz
6-1/2" (165mm) Polypropylene Cone
3/4" (20mm) Polycarbonate Dome
89 dBspl (Average 100 Hz - 10 kHz)
Low (16 ohms) / High (70V/100V)
75W @ 16 ohms; 32W @ 70V/100V
70V: 32, 16, 8, 4, 2, 1 / 100V: 32, 16, 8, 4, 2
4 Terminal Plug-in Input Connector
9 lb.
12-5/16" dia. x 12" D
11"
Input Terminal Cover (2 Halves); (4) Screws; (1) Plug-in Input Connector
Tile Bridge Support Ring (TBCR); Cable Kit (CK10)
HFCS1LP(B)
HFCS1LP
78 Hz to 19 kHz
Fire-rated (94VO) ABS
Heavy-Gauge Steel
8 lb.
12-5/16" dia. x 7-3/4" D
6-3/4"
Off-white or Black
Specifications subject to change without notice.
© 2006 Bogen Communications, Inc.
54-8016-03D 1302
