GRAPHTEC CE6000 Replacement Manual page 3

New procedure to replace the main board

Hide thumbs Also See for CE6000:

How to backup the main board value to the Sub-NVRAM

Prepare following items before backup.

1. PC

2. SEND.EXE

3. USB cable

4. The CE6000 series of USB driver must be installed before using the SEND.EXE.

5. Serial number of CE6000 (The serial number is "E" and 9 digits of numbers.)

6. The backup command file. (This file has to create by the text editor such as word pad.)

How to create the backup command file

Type the following character by using the text editor.

a10,1,Exxxxxxxxx,

The "Exxxxxxxxx" is serial number of the CE6000.

For example if the serial number is "E209200001", type as below.

a10,1,E209200001,

Save the file after type it.

Procedure

The back up command should be sent in the READY menu of maintenance mode.

(1) Connect the CE6000 and the PC via the USB.

(2) Load a paper into the CE6000.

(3) Turn on the power while pressing the FAST key and the ENTER key.

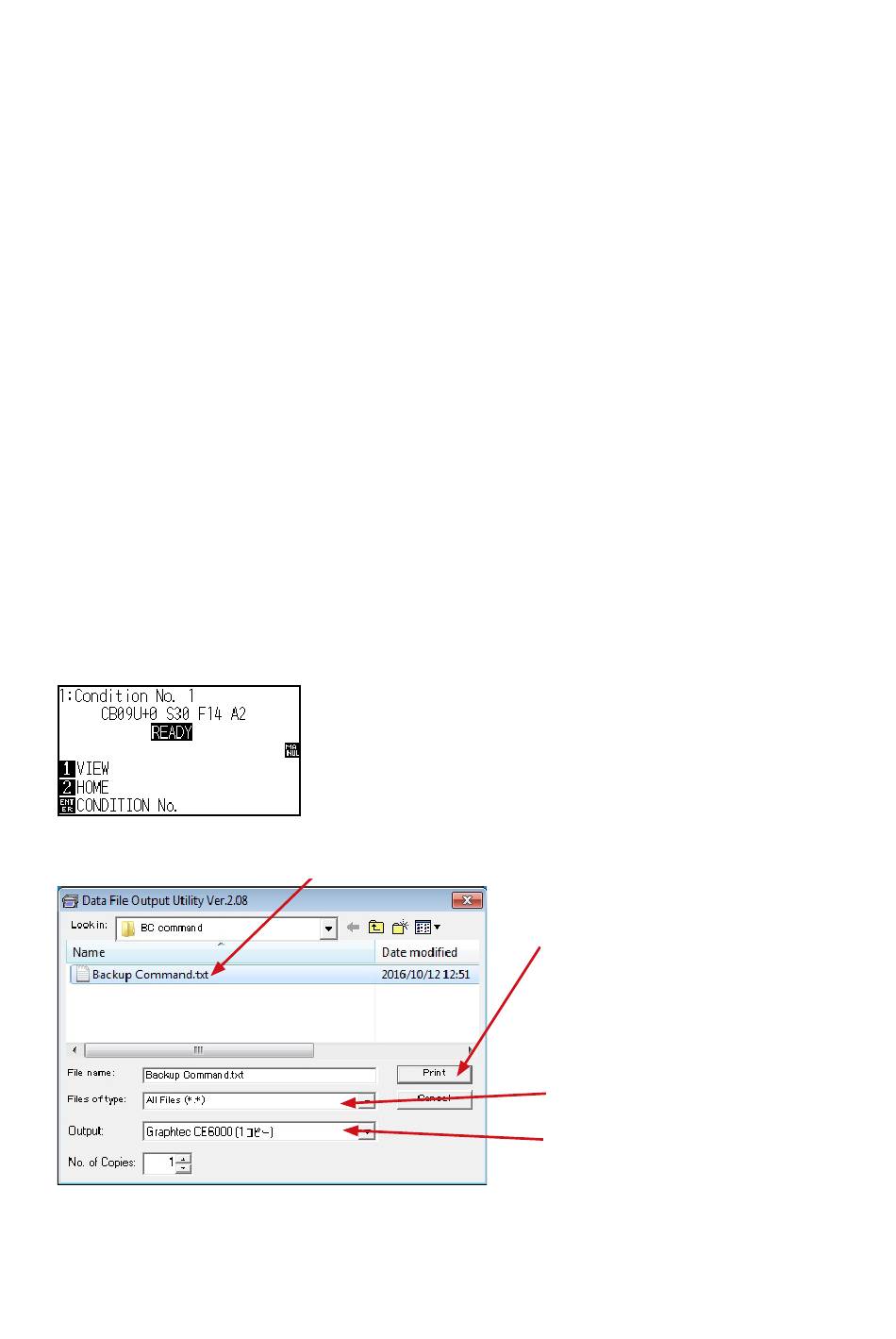

The following menu is displayed.

(4) Send the backup command file to the CE6000 by using the SEND.EXE.

Select the backup command file

3/4

Press the Print button after the

backup command file and the

output device were selected.

Select all files

Select the CE6000.

Confirm the active device at the

"Device and Printers" before

selecting the output device.
