GRAPHTEC CE6000 Replacement Manual page 2

(8) Turn on the power while pressing the down arrow key and the ENTER key.

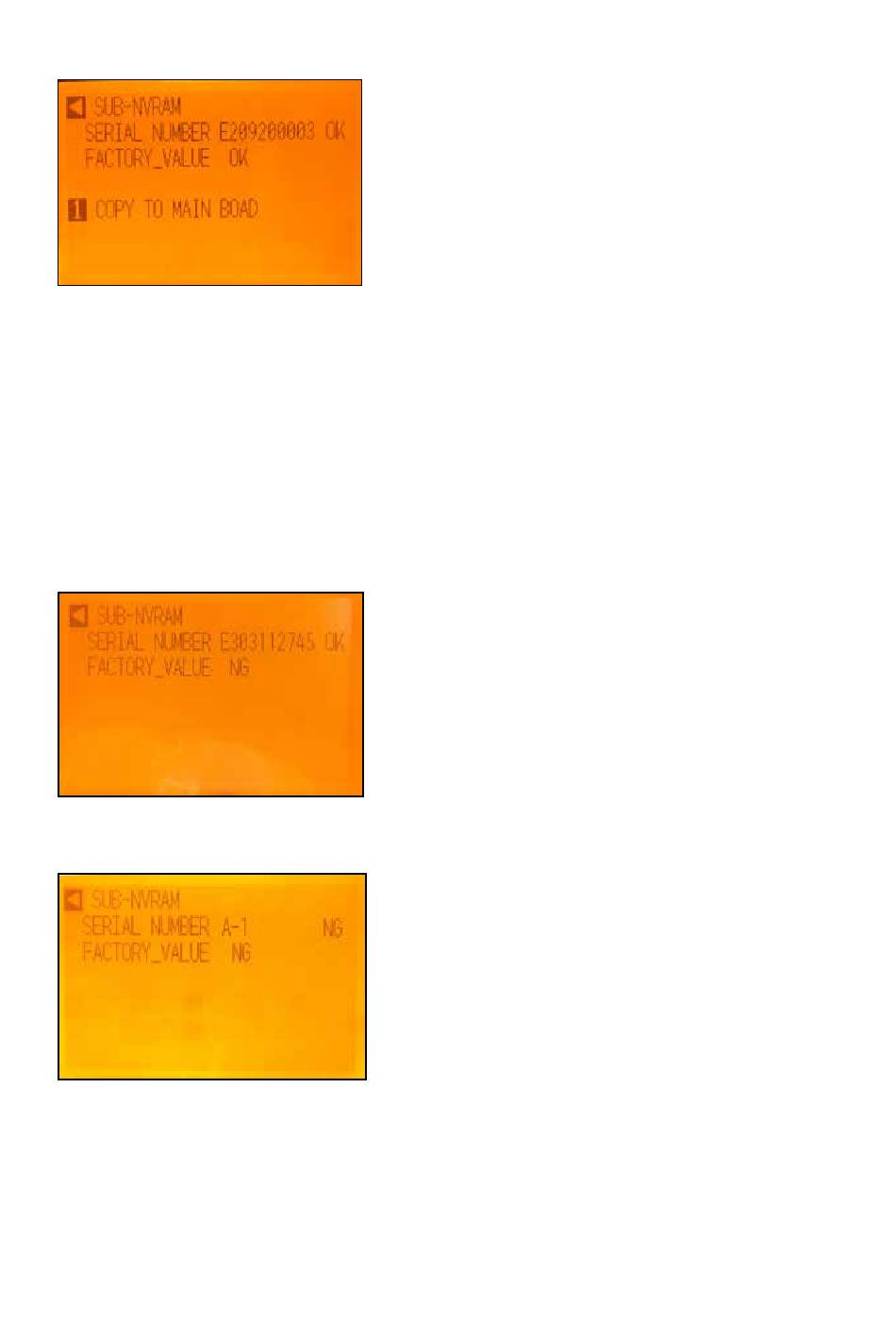

The following menu is displayed.
(9) If the above status of SERIAL NUMBER and FACTORY VALUE is OK, the adjustment values are able
to copy from the Sub-NVRAM to the main board.
(10) Press F1 key to copy the value to the main board.
(11) The plotter will be initialized automatically after the values are copy to the main board.
This will finish in a few second.
(12) Turn off the power.
(13) End of replacing the main board.
When the Sub NV-RAM values were not able to copy to the main board
The Sub-NVRAM valuer are not able to copy to the main board when the following menu was displayed.
This menu will be displayed when the previous main board setting values were not copied from the Sub-
NVRAM.
This menu will be displayed when the cam sensor was replaced without backup to the Sub-NVRAM.
All adjustments have to perform when above menus were displayed (Refer to the service manual of CE6000
to adjust all adjustments.).
And all adjustment values must upload to the Sub-NVRAM.
2/4
