Connection Diagram; Set Up The Camera - Reolink RLC-410-B500 Operational Instruction

Connection Diagram

Before using the camera, please connect your camera as instructed
below to finish initial setup.

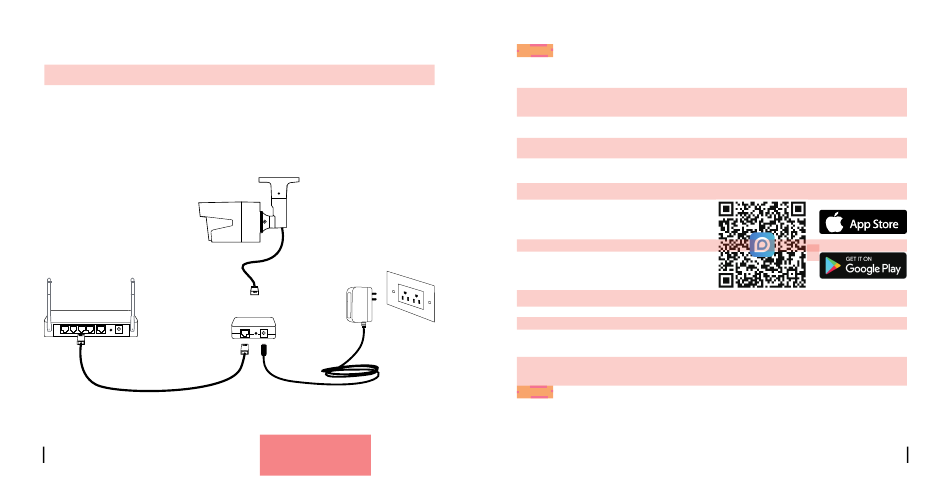

1. Connect the camera to a PoE injector with an Ethernet cable.
2. Connect the PoE injector to your router, and then power on the PoE
injector.
PoE IP Camera
Router
Ethernet Cable
*You may also connect the camera to a PoE switch or Reolink PoE NVR.
5 English
Ethernet Cable
PoE Injector*
Power Adapter
NOTE: The camera should be powered with a 12V DC adapter or a PoE
powering device such as PoE injector, PoE switch or Reolink NVR
(not included in the package).

Set up the Camera

Download and Launch the Reolink App or Client software, and follow the
onscreen instructions to finish initial setup.
• On Smartphone
Scan to download the Reolink App.
• On PC
Download path of the Reolink Client: Go to
> App & Client.
NOTE: If you are connecting the camera to a Reolink PoE NVR, please
set up the camera via the NVR interface.
Available on the
https://reolink.com > Support
English 6
