Advanced Setup - MACDEV CLONE Owner's Manual

Replacing the battery
Remove the three screws holding the wrap around grip onto the left hand side
of your grip frame. Gently lever the battery out of the frame from the bottom.
Take care that the terminals are not caught on the battery.
Place the replacement battery into the marker, NOTE: make sure you put the
bottom of the battery in first then push it onto the terminals. Only use high
quality alkaline 9V batteries, the best possible choice is to use a MacDev
Militia PowerPack (type 6LR61).

ADVANCED SETUP

About the tourney lock
The Clone board is equipped with a tourney lock system. When the tourney
lock system is activated, the gun cannot be reprogrammed on the field -
making it tournament legal.
Your marker has a tourney lock status indicator:
unlocked locked
When in unlocked mode, settings on the board my be changed, when in the
locked mode settings cannot be changed.
The lock status can be changed by opening the right hand side of the marker
wrap around grip to gain access to the back of your circuit board. The tourna-
ment lock is a black button. Hold the button until you see the tournament lock
status change.
Programming the Clone software
To program the board, first ensure that the tournament lock is off, then turn the
marker off. Hold down the trigger whilst turning the marker on. When done cor-
rectly, you will see a message on your display screen indicating that program-
ming mode is loading.
When in the programming mode, settings will be displayed ready to be adjusted.
If you would like to adjust the setting displayed, hold the trigger until the word
"Set" appears before the setting value. Press the scroll button (

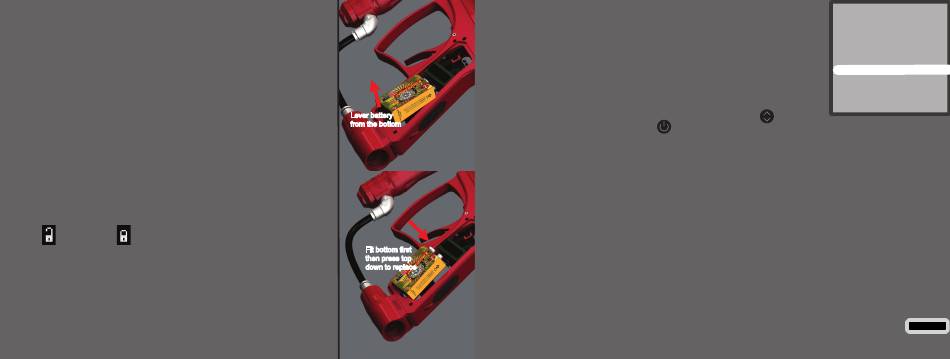

Lever battery
from the bottom
the set value, and the power button (
value. When you are satisfied with the new setting, hold the trigger until the word "Set" is removed.
If you would like to advance to the next setting, press the scroll button. If you would like to go backwards,
press the power button.
When you are finished with the program mode, hold the power button until the display goes blank (marker
is powered down).
Each setting is described in detail below:
Debounce
Fit bottom first
The debounce setting of your marker is used to control the amount of "bounce" in your trigger. A very
then press top
down to replace low debounce setting will result in a lot of bounce. In some tournaments or fields, it will be necessary to
reduce the amount of bounce by increasing the debounce setting. Always increase the debounce slowly,
because settings higher than 15 may result in your marker feeling unresponsive.
