MACDEV CLONE Owner's Manual page 12

O-ring
retainer
Swivel o-ring
(015)
Filter
Adjuster
Sleeve
Swivel o-ring
(015)
Adjuster o-ring
(008)
Bottomworks
Bottomworks
o-ring (018)
End cap
Push fitting
Topworks
o-ring (015)
Piston
Retainer
outer o-ring
(017)
Topworks
Piston
o-ring (016)
Spring
Seat
Retainer
inner o-ring
(008)
Maintaining the inline regulator
Your inline regulator (otherwise know as Gladiator reg), regulates the pres-
sure from your air system down to the pressure used to fire your Clone. It is
very important that your inline regulator is working well, if not, you may experi-
ence problems with velocity fluctuation or shootdown.
Before working on your Gladiator reg, make certain that the air supply is
turned off (via the venting ASA), and safely fire any gas out of the gun to en-
sure it does not have any residual pressure.
Remove the hose from the fitting in the bottom of the Gladiator reg - you do this by pushing the collar
in, whilst pulling the hose out. Once the hose is removed, you can unscrew the Gladiator reg from your
Clone. Put your Clone aside so that you can concentrate on your Gladiator reg.

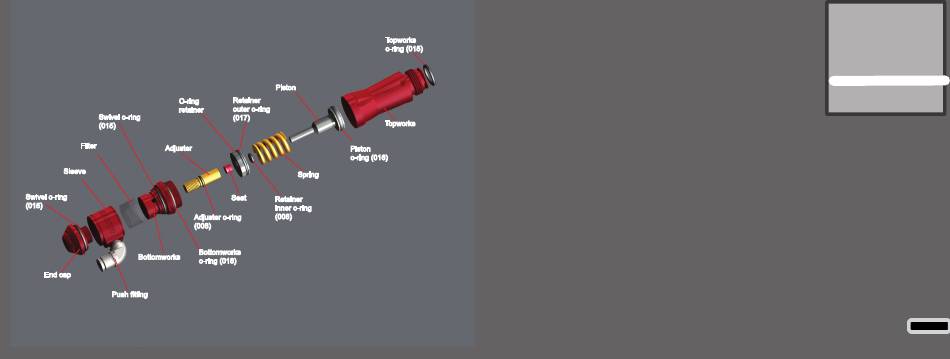

A picture of the parts inside your Gladiator reg are shown on the adjacent page, disassemble the regula-
tor and lean and relubricate the piston and retainer inner o-rings. Also, clean and relubricate the bore
inside the topworks where the piston slides. Please note that to complete this simple maintenance, you
do not need to completely disassemble the regulator as shown, all the parts are shown to help you if
you need it for troubleshooting.
Re-assemble your regulator and re-assemble your Clone by attaching the Gladiator inline reg and hose.
Push the hose in firmly until it stops. Re-chronograph your Clone before use on the field.
