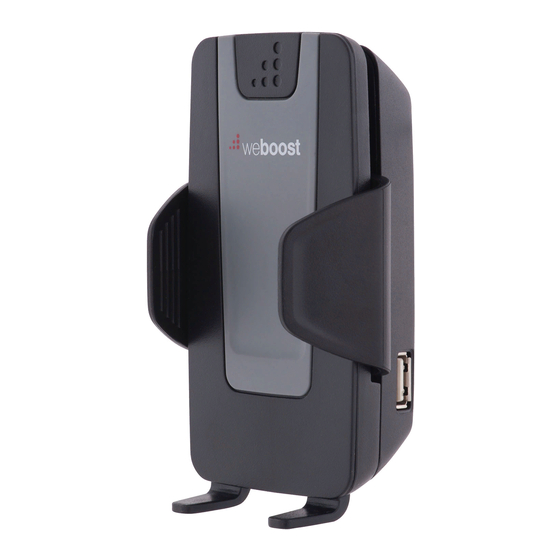

weBoost Drive 3G-S User Manual
Cellular signal booster
Hide thumbs
Also See for Drive 3G-S:
- Manual (24 pages) ,
- Installation instructions manual (20 pages) ,
- Quick install manual (2 pages)
Related Manuals for weBoost Drive 3G-S
Summary of Contents for weBoost Drive 3G-S

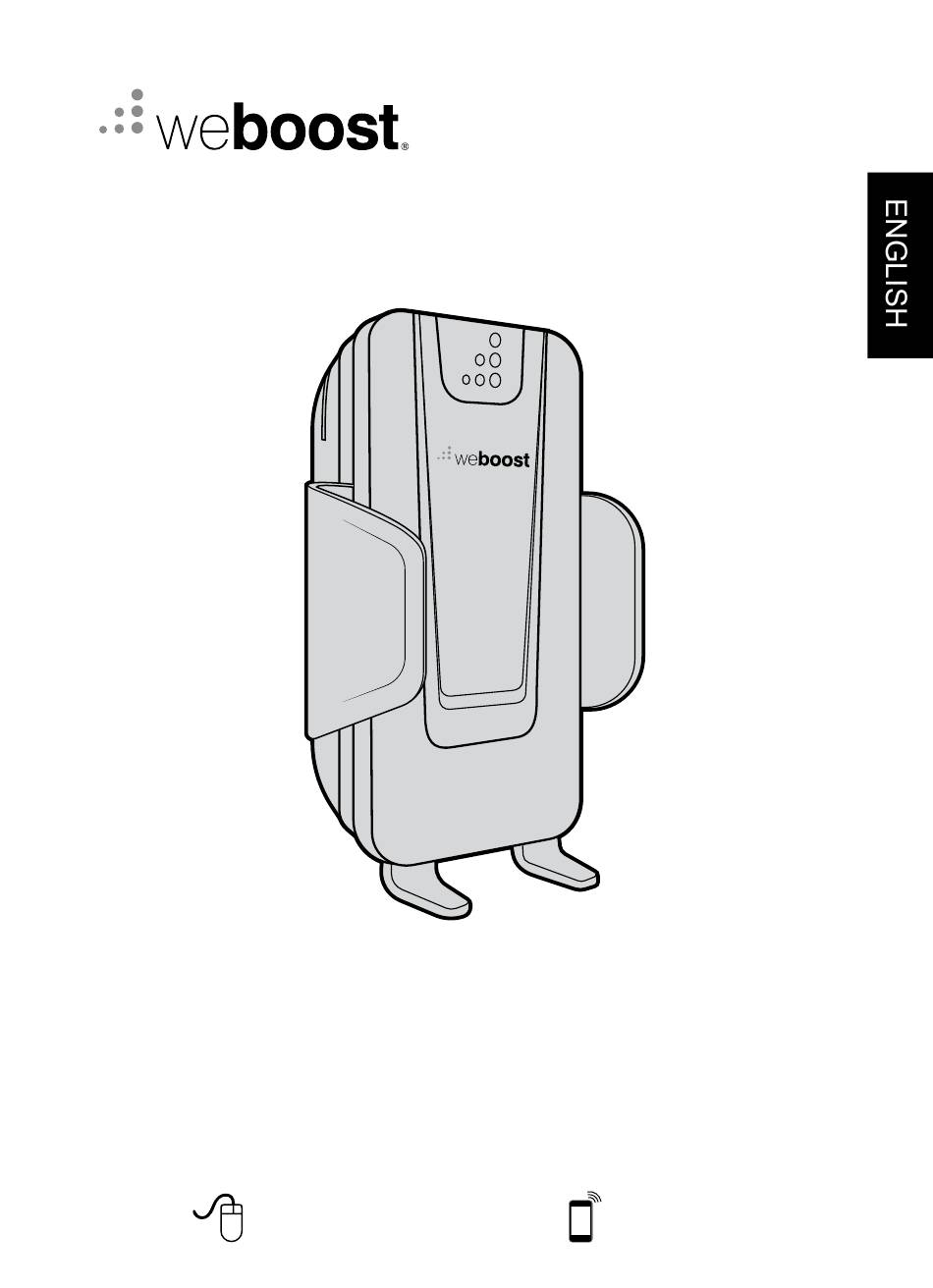

- Page 1 Drive 3G-S ™ Cellular Signal Booster Need help? https://cellphonesignalbooster.us Customer Support 800-501-3153 Mon.- Fri. Hours: 7 am to 6 pm MST...
-
Page 2: Table Of Contents
Adjusting the Drive 3G-S Arms ........ -
Page 3: Package Contents
Inside this Package DC Plug-In Power Supply Vehicle Dash Mini-Magnet Mount Antenna Adhesive & USB cable (301126) Drive 3G-S Mounting Bracket ™ (2D9910 / 291170) Appearance of device and accessories may vary. Optional Accessories Antenna Window Mount Adjustable AC Power Supply... -
Page 4: Installation Options
Allow the area to dry. the Drive 3G-S by aligning the rectangular • Peel the backing to expose the adhesive hole on the back of the Drive 3G-S with and press the bracket onto the desired the tab on the Mounting Bracket, grasping location on the dashboard. -
Page 5: In-Building Installation Option
The location should be at least three feet from the Outside Antenna to avoid oscillation (feedback). Your cell phone must be in the cradle for the Drive 3G-S to amplify the signal. Use a Bluetooth headset, wired hands-free device or speakerphone for In-Building Installation Option talking on the phone. -
Page 6: Adjusting The Drive 3G-S Arms
If using a DC power supply in your The Signal Boost includes a indicator light on vehicle, ensure the power supply is the side of the Drive 3G-S. The indicator light properly inserted. Then check the 12 volt will either be green or red. -
Page 7: Optional Accessories
1900 MHz bands? How do I know which MHz geographical location. band my cell phone uses? The Drive 3G-S works with all major North American cellular providers on the 800 & 1900 MHz frequencies. Traditionally, 800/1900MHz are Mobile Antennas... -
Page 8: Safety And Recommendations
WARNING: Connecting the Signal Booster directly to the cell phone with use of an adapter will damage the cell phone. WARNING: Use only the power supply provided in this package. Use of a non-weBoost product may damage your equipment. WARNING: To uphold compliance with network protection standards, all active wireless devices must maintain at least 18”... -
Page 9: Signal Booster Specifications
Signal Booster Specifications Drive 3G-S Model Number 470006 Connectors SMA-Female Antenna Impedance 50 Ohms Frequency 824-894 MHz/1850-1990 MHz 800 MHz 1900 MHz Passband Gain (nominal) 20.8 18.6 800 MHz 1900 MHz 20 dB Bandwidth (MHz) Typical 42.1 82.2 Maximum 43.6 83.4... - Page 10 Returned Material Authorization (RMA) number supplied by weBoost. weBoost shall, at its option, either repair or replace the product. weBoost will pay for delivery of the repaired or replaced product back to the original consumer if located within the continental U.S.
