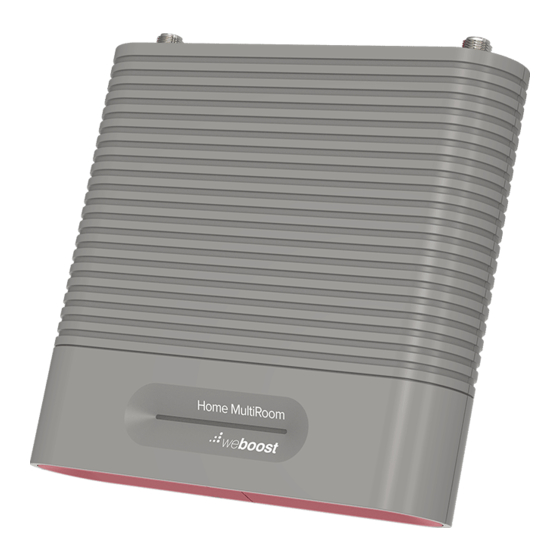

- Page 1 A WILSON ELECTRONICS BRAND Home MultiRoom Cell Signal Booster Home MultiRoom Installation Guide support.weboost.com 866.294.1660 NEED HELP? BU-GDE000144-003-012120.indd 1 BU-GDE000144-003-012120.indd 1 1/21/2020 3:34:10 PM 1/21/2020 3:34:10 PM...
- Page 2 ______ Index Package Contents Preparation Inside Antenna & Booster Placement STEP 1-A & B: Mount & Point Outside Antenna Toward Nearest Cell STEP 2: Tower Route & Connect Outside Antenna To Booster STEP 3-A: Route & Connect Inside Antenna To Booster STEP 3-B: Power Up The Booster &...
- Page 3 (YX030-15W w/971129 Barrel Connector) Window Entry Outside Antenna Wall Mount Brackets Power Cable Mounting Bracket w/Command Strips Supply (951177) (850018) Cable Mounting Clips Qty. 15 HOME MULTIROOM CELL PHONE SIGNAL BOOSTER BU-GDE000144-003-012120.indd 1 BU-GDE000144-003-012120.indd 1 1/21/2020 3:34:11 PM 1/21/2020 3:34:11 PM...
- Page 4 NOTE: These instructions will walk you through a “soft” install process to find the optimal locations for the inside and outside antennas, then through the process of the permanent installation. CELL PHONE SIGNAL BOOSTER HOME MULTIROOM BU-GDE000144-003-012120.indd 2 BU-GDE000144-003-012120.indd 2 1/21/2020 3:34:11 PM...
- Page 5 NOTE: Do not connect booster to power until the system is fully installed. TIP: The cable from the Inside Antenna can be routed into the ceiling and connected to the coax cable out-of-sight for a better look. HOME MULTIROOM CELL PHONE SIGNAL BOOSTER BU-GDE000144-003-012120.indd 3 BU-GDE000144-003-012120.indd 3...
- Page 6 Command strips can be used to secure mounting bracket. Inside Antenna Mounting Options Mounted Mounted Horizontal Vertical Command Strips Command Strips Or use the kickstand and set on desktop CELL PHONE SIGNAL BOOSTER HOME MULTIROOM BU-GDE000144-003-012120.indd 4 BU-GDE000144-003-012120.indd 4 1/21/2020 3:34:12 PM 1/21/2020 3:34:12 PM...
- Page 7 Outside Antenna Bracket Clamps Mount Pole (1.0”-3.0”dia.) NOTE: Mounting on existing roof exhaust pipe would be a good time-saver option. Watch out for power lines. HOME MULTIROOM CELL PHONE SIGNAL BOOSTER BU-GDE000144-003-012120.indd 5 BU-GDE000144-003-012120.indd 5 1/21/2020 3:34:13 PM 1/21/2020 3:34:13 PM...
- Page 8 Inside Antenna for best performance. Make sure the Inside Antenna and Outside Antennas are setup so they are facing away from each other. CELL PHONE SIGNAL BOOSTER HOME MULTIROOM BU-GDE000144-003-012120.indd 6 BU-GDE000144-003-012120.indd 6 1/21/2020 3:34:13 PM 1/21/2020 3:34:13 PM...
- Page 9 Mounting On Side Of Roof (Fascia) Using only the back Bracket Clamp for mounting Cable Mounting Clips provided HOME MULTIROOM CELL PHONE SIGNAL BOOSTER BU-GDE000144-003-012120.indd 7 BU-GDE000144-003-012120.indd 7 1/21/2020 3:34:13 PM...
- Page 10 Window Entry provided connection Cable Outside Antenna 15’ RG-6 Cable 15’ RG-6 Cable Booster Route cable to the Home MultiRoom Booster and connect to the port labeled ‘OUTSIDE ANTENNA’. Outside Antenna Cell Tower Booster CELL PHONE SIGNAL BOOSTER HOME MULTIROOM etter BU-GDE000144-003-012120.indd 8...
- Page 11 ______ Step 3-B: Route & Connect Inside Antenna To Booster Connect the white 30’ Cable to Inside Antenna and route to the Home MultiRoom Booster and connect to the port labeled ‘INSIDE ANTENNA’. Inside Antenna Cable Mounting Clips provided connection 30’...
- Page 12 Command Strips 50 FEET HORIZONTAL OR 20 FEET VERTICAL DISTANCE Outside Antenna Cell Tower Inside Antenna Booster to power CELL PHONE SIGNAL BOOSTER HOME MULTIROOM BU-GDE000144-003-012120.indd 10 BU-GDE000144-003-012120.indd 10 1/21/2020 3:34:15 PM 1/21/2020 3:34:15 PM...
- Page 13 Inside Antenna’s projected area. This is done best by having someone near the inside antenna taking signal measurements after the person outside makes each rotation. HOME MULTIROOM CELL PHONE SIGNAL BOOSTER BU-GDE000144-003-012120.indd 11 BU-GDE000144-003-012120.indd 11...
-
Page 14: Measuring Booster Performance
Network Type and Strength (exact options/wording depends on phone model). iPhone is a registered trademark of Apple Inc. Android is a trademark of Google Inc. All Other Phones & Alternate Methods Go to www.weboost.com/test-mode-instructions/ CELL PHONE SIGNAL BOOSTER HOME MULTIROOM BU-GDE000144-003-012120.indd 12 BU-GDE000144-003-012120.indd 12... -
Page 15: Compare Results
DID YOU KNOW a signal increase of just 3dB is 2 4G/LTE -105 -106 -110 -111 -119 -120 times the power and signal amplification! HOME MULTIROOM CELL PHONE SIGNAL BOOSTER BU-GDE000144-003-012120.indd 13 BU-GDE000144-003-012120.indd 13 1/21/2020 3:34:16 PM 1/21/2020 3:34:16 PM... -
Page 16: Light Patterns
Light Patterns Solid Green This indicates that your booster is functioning properly and there are Home MultiRoom no issues with installation. Blinking Green & Red Band has reduced gain. This indicates that one or more of the booster bands has reduced power due to a feedback loop condition called oscillation. -
Page 17: Troubleshooting
Outside Antenna to location of the home/building to see if the lights turn green. Un-plug and re-plug in power supply. Then secure in place. support.weboost.com 866.294.1660 NEED HELP? HOME MULTIROOM CELL PHONE SIGNAL BOOSTER BU-GDE000144-003-012120.indd 15 BU-GDE000144-003-012120.indd 15 1/21/2020 3:34:16 PM... -
Page 18: Safety Guidelines
Inside Panel and Dome antennas and at least four feet of separation distance from desktop Antenna. Use only the power supply provided in this package. Use of a non-weBoost product may damage your equipment. -
Page 19: Specifications
Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by weBoost could void the authority to operate this equipment. support.weboost.com 866.294.1660... -
Page 20: Year Warranty
2 YEAR WARRANTY weBoost Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase. Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material... -
Page 21: Antenna Kit Options
______ Antenna Kit Options The following accessories are certified by the FCC to be used with the Home MultiRoom. This radio transmitter 4726A-460059 has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum permissible gain indicated. - Page 22 Notes support.weboost.com 866.294.1660 NEED HELP? CELL PHONE SIGNAL BOOSTER HOME MULTIROOM BU-GDE000144-003-012120.indd 20 BU-GDE000144-003-012120.indd 20 1/21/2020 3:34:17 PM 1/21/2020 3:34:17 PM...
- Page 23 Notes support.weboost.com 866.294.1660 NEED HELP? HOME MULTIROOM CELL PHONE SIGNAL BOOSTER BU-GDE000144-003-012120.indd 21 BU-GDE000144-003-012120.indd 21 1/21/2020 3:34:17 PM 1/21/2020 3:34:17 PM...
- Page 24 3301 East Deseret Drive, St. George, UT 866.294.1660 www.weboost.com support.weboost.com Copyright © 2019 weBoost. All rights reserved. weBoost products covered by U.S. patent(s) and pending application(s) For patents go to: weboost.com/us/patents NOT AFFILIATED WITH WILSON ANTENNA GDE000144_Rev03_01.21.20 BU-GDE000144-003-012120.indd 22 BU-GDE000144-003-012120.indd 22...
