F-4300
Clamp-on Ultrasonic Flow Meter
Installation & Operation Guide
ONICON

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-4300 and is the answer not in the manual?

Questions and answers

Vernon Monger
March 17, 2025

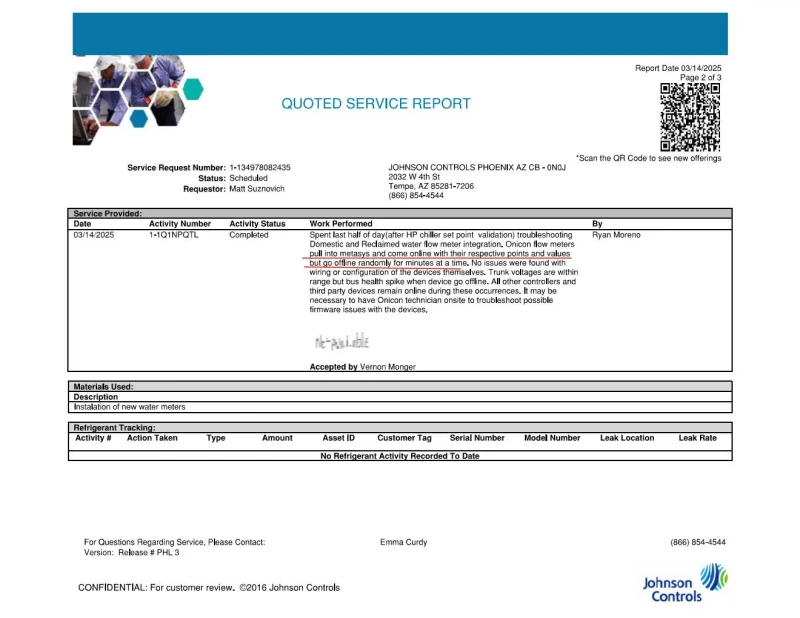

I have two F-4300 meters hooked to Johnson Control's BMS on a project. We are able to read them in the metasys, but they randomly go off line for several minutes then re-establish communication. I **** looking for a solution.

User image 67d84ec1232fb
0
1 comments:
Mr. Anderson
March 17, 2025

The Onicon F-4300 meters could be randomly going offline when connected to Johnson Control's BMS due to communication or signal-related issues. Possible causes include:

1. LOS (Loss of Signal) Time Setting: If there are high concentrations of undissolved gases or other signal interferences, the meter may hold the last valid reading for the LOS Time duration. If signal strength does not return within this time, the meter will report zero flow and trigger a Low Signal alarm, which could cause it to appear offline.

2. Flow Below Min Flow Setting: If the measured flow rate falls below the configured Min Flow value, the meter forces the reading and outputs to zero, which may be interpreted as the meter going offline.

3. MODBUS Communication Settings: If the BMS is using MODBUS, incorrect configuration of registers, unsupported function codes, or communication timeouts could cause intermittent disconnections.

4. APDU Timeout and Retries: The default APDU Timeout is 6000 ms, and the number of retries is 3. If the BMS does not handle timeouts well, it may drop the connection.

5. Segmentation Support: The F-4300 does not support segmentation. If the BMS expects segmented responses, it could cause communication failures.

6. Device Address Conflicts: If multiple devices on the network have the same address, communication conflicts may cause the meter to go offline.

Checking and adjusting these settings in both the F-4300 and the BMS may help resolve the issue.

This answer is automatically generated

0
