    Dear customer, Thank you for purchasing an ALFRA product. Please read these operation instructions closely before using your device for the first time and keep them along with the enclosed Product Control Card for later reference. SAFETY INSTRUCTIONS Dangers can occur when transporting loads by lifting devices due to improper handling and/or poor maintenance, which may cause serious accidents with fatal physical injuries.

  • Page 3: Proper Use

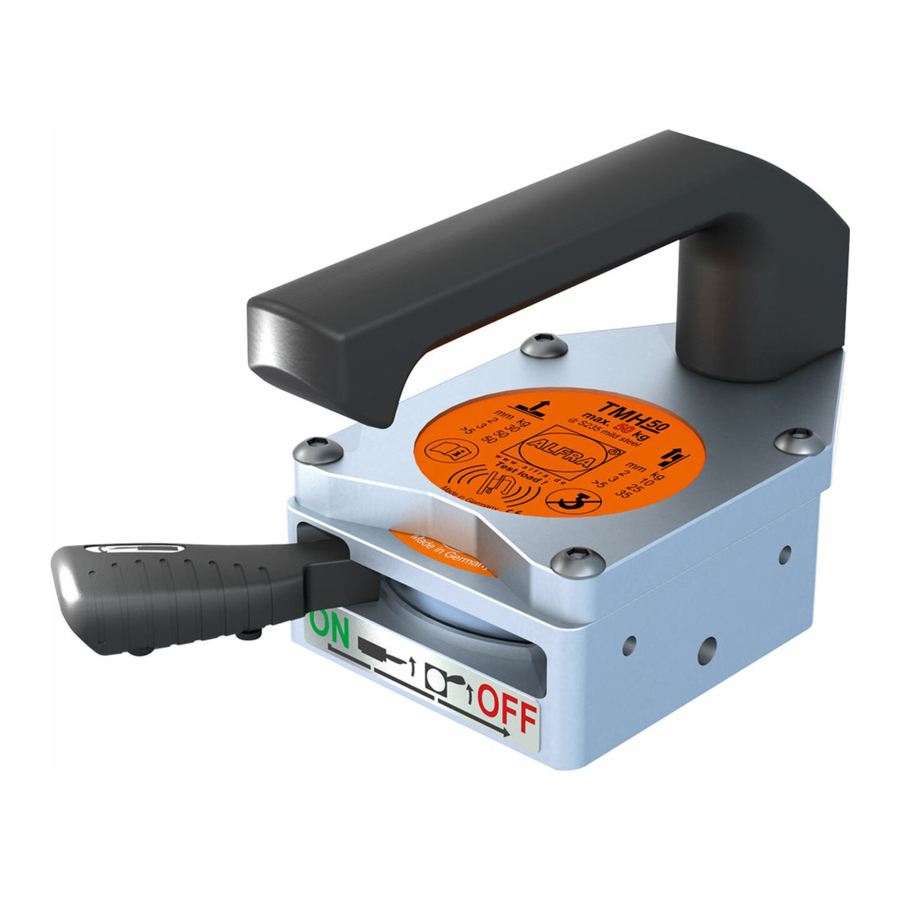

    The installed permanent magnet (B) generates a magnetic field in the lower magnetic plate area (D). Owing to the special design of the TMH 50, this magnetic field is very compact and develops excellent adhesive force especially on thin materials of less than 10 mm.

  • Page 4: Technical Data

    MARKINGS ON THE HAND-OPERATED LIFTING MAGNET Detailed descriptions for handling and operating conditions of the TMH 50 can be found on the upper side of the lifting magnet. This labeling must not be modified, damaged or removed. Otherwise the manufacturer cannot be held responsible for any personal injuries, property damage or accidents resulting from this fact.
  • Page 5 START-UP You receive a completely assembled lifting magnet and a detailed operating manual. Please check the condition of the goods upon receipt for any damage incurred during transport, and make sure the delivery is complete. If you have any problems, please contact the manufacturer immediately. 1.
  • Page 6 Furthermore, an increasein surface roughness or unevenness has an adverse effect on the magnetic holding force. Reference values for your TMH 50 can be found in table 2. Load dimensions When working with large workpieces such as girders or plates, the load canpartly become deformed during the lift.
  • Page 7 MAINTENANCE AND INSPECTION OF THE HAND-OPERATED LIFTING MAGNET The user is obliged to maintain and service the hand-operated lifting magnet TMH 50 in compliance with the specifications in the operating manual and according to the country-specific standards and regulations (e.g. ASME B30.20B, DGUV-Information 209-013; AMVO).
  • Page 8 1:3 in all cases. This manual does not contain any instructions for use on round material, as the TMH 50 is designed for flat material and round material or arched objects may not be lifted.
