- Page 1 Imán de eleVacIón de cargas Imán de eleVacIón de cargas hefmagneet hefmagneet løftemagnet løftemagnet US Patent Nr. 8350663B1 alfra tml 250 #41250 alfra tml 250 #41250 BedIenungsanleItung | operatIon manual mode d‘emploI | manual de InstruccIones | geBruIksaanwIJzIng | BruksanVIsnIng...
-
Page 2: Safety Instructions
safety InstructIons Danger can occur when transporting loads by lifting devices due to improper use and/or poor maintenance, which may cause severe accidents and serious injury or even death. Please read and follow the operation and safety information contained in this operating manual very carefully. If you have any questions, contact the manufacturer. -
Page 3: Proper Use

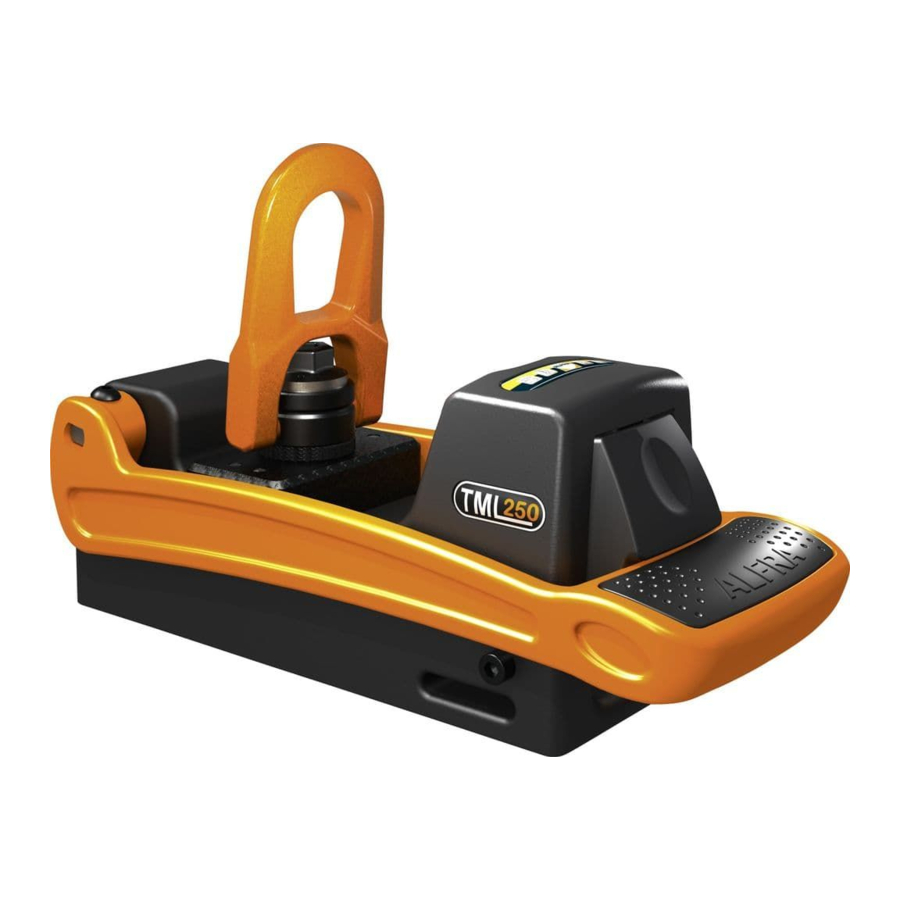

The permanent lifting magnet TML 250 has been designed for lifting ferromagnetic, metallic loads and may only be used within the context of its technical data and purpose. Proper use also includes adherence to the start-up, operating, environment and maintenance conditions specified by the manufacturer. Any use going beyond this is considered improper, and the manufacturer will not be liable for any damage resulting from such use. -
Page 4: Technical Data
Prod.-No. 41250 Designation TML 250 Lifting magnet >1650lbs on0, 4" AISI CRS 1020 Breakaway force >750 kg on 10 mm S235 Colled Rolled Steel Max. load-bearing capacity: 550 lbs on0, 4" AISI CRS 1020 (on flat material 250 kg on 10 mm S235... - Page 5 start-up You have received a completely assembled lifting magnet and detailed operating manual. Please check the condition of the goods upon receipt for any damage incurred during transport, and make sure the delivery is complete. If you have any problems, please contactthe authorized reseller or manufacturerimmediately. Be sure to read the operation instructions completely before using this magnet for the first time! 1.
- Page 6 BasIc InformatIon related to the handlIng of magnetIc lIftIng gear, In partIcular tml The magnetic surface is located on the underside of the lifting magnet and has multiple magnetic poles which generate the magnetic holding force when activated. The maximum holding force that can be achieved depends on different factors which are explained below: material thickness The magnetic flow of the lifting magnet requires a minimum material thickness to be able to flow completely...
- Page 7 We will be glad to perform this inspection for you in-house. Please send us an email to: tml-test@alfra.de You will then promptly receive an offer and have the assurance that the lifting magnet will be inspected in a process-reliable manner where it was actually produced.
- Page 8 6° inclined load in accordance with EN13155, in each case with a 3:1 safety factor. There are not instructions for round material, as the TML 250 is optimised for flat material and round material or arched objects may not be lifted.
- Page 9 2006/42/ec Alfra GmbH 2. Industriestr. 10 68766 Hockenheim/Germany hereby declare that the switchable permanent magnet-type lifting magnet tml 250 according to the serial number on your product control card complies with the following standards: en Iso 12100:2010 en 13155:2003+a2:2009 This certificate is no longer valid if the product is modified without the manufacturer's consent.
