- Page 1 Passion For Tools AMTE 400 ASSEMBLY TABLE U SER MAN UAL v 3. 1021...
-
Page 2: Table Of Contents
READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND SAFETY INFORMATION IN THIS MANUAL BEFORE OPERATING OR SERVICING THIS EQUIPMENT. ALFRA TOOLS, LLC SHALL NOT BE LIABLE FOR DAMAGES RESULTING FROM MISAPPLICATION OR MISUSE OF ANY PRODUCTS. WE RESERVE THE RIGHT TO MAKE UNANNOUNCED TECHNICAL CHANGES TO THIS PRODUCT AS PART OF OUR CONTINUOUS IMPROVEMENT PROCESS. -
Page 3: Safety Alert Types
SAFETY ALERT TYPES We use the following symbols and alerts in this document: This symbol is used to call your attention to hazards or unsafe practices which could result in an injury or property damage. The signal word, defined below, indicates the severity of the hazard. -
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION Safety is essential to the use and maintenance of Alfra Tools tooling and equipment. This instruction manual and any markings on the unit provide information for avoiding hazards and unsafe practices related to the use of this table. Observe all of the safety information provided. -
Page 5: Scope Of Delivery
14 in this user manual for a list of Vertical Upper Extension - 78” MAX commonly purchased accessories. Tilt Actuator Please contact your local Alfra Tools Distributor Vertical Upper Extension - 78” MAX for direct accessory recommendations or Linear Actuator... -
Page 6: Overview

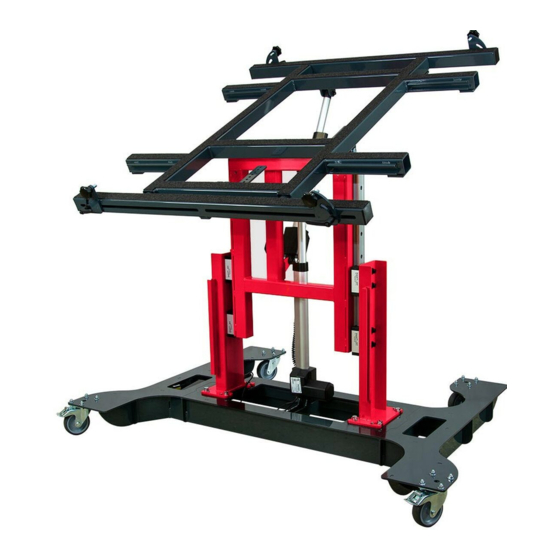

OVERVIEW The AMTE-400 is a versatile assembly table intended for the ergonomic, effective, and time-saving assembly of electrical panels and enclosures. THE AMTE-400 SHOWN WITH THE TOP IN THE HORIZONTAL POSITION THE AMTE-400 SHOWN WITH A PANEL MOUNTED TO THE TOP IN TILTED POSITION This table is designed as a tool to increase productivity, reduce assembly times, and prevent stress on the operator(s) during the... - Page 7 DISCLAIMER ALFRA TOOLS, LLC NOR ANY OF IT’S SUBSIDIARIES OR PARTNERS WILL BE HELD LIABLE FOR DAMAGES OR INJURY DUE TO TIPPING OF THE TABLE. AMT E-400 Use r Man ua l - v 3. 10 21 | w w w. ALF R ATO OL S .co m | 847.844.8900...
-
Page 8: Technical Information
TECHNICAL INFORMATION OPERATIONAL PARAMETERS Maximum load bearing capacity: 900 lbs (408 kg) Working height range: 31-⅞” to 45-⅞”(809 mm to 1165 mm) Adjustable angle of tilt: 0-70° ± 1.4° ACTUATOR SPECIFICATIONS Nominal voltage: 24-29 VDC Nominal load power consumption: up to 2.2 A, 50 W Maximum push force: 6000 N Maximum pull force:... -
Page 9: Operation
OPERATION NOTICE Your AMTE-400 table has been disabled for shipping purposes. In order to use your assembly table, please locate the ORANGE cable tie on the lower portion of your unit, found below the CONTROL actuator. This cable tie will need to be cut, and the extension cable here will need to be connected in order to power your assembly table. - Page 10 OPERATION (Continued) Setting up the work surface Take a moment to verify your AMTE-400’s surface is clear of foreign material, and the AMTE-400’s felt surface is clear of rips, tears, or other damage to avoid scratches or scuffing on your work-piece. Always secure all table extensions, accessories, wires, and any movable parts before operating the AMTE-400.
- Page 11 OPERATION (Continued) Mounting Hardware and Securing the Panel/Backplane/Enclosure 1. Verify all extensions are secured in place. Ensure the safety pin is properly installed. 2. Carefully lower the work-piece into place while the AMTE-400 is in the horizontal position. 3. Position the heaviest portion of the panel near the lower extension.
- Page 12 OPERATION (Continued) Changing Mounting Hardware WARNING! Standard backplane and flat panel Mounting Hardware is pre-installed on your AMTE table. ■ The work surface must remain in the Additional Mounting Hardware options are available horizontal position until the panel is safely to offer various ways to safely secure a wide variety mounted and secured using clamps and/or of potential work-pieces.
-
Page 13: Battery Maintenance
Battery Maintenance Rechargeable battery packs may be purchased INITIAL/IDLE BATTERY CHARGE CYCLE separately. Please contact your local supplier to purchase a battery pack for your AMTE table. IMPORTANT! Rechargeable battery packs should be stored at room temperature (app. 25°C or 77°F). Perform an initial 8-12 hour cycle to fully charge the battery Even if stored at room temperature, batteries will... -
Page 14: Safety And Maintenance Tips
SAFETY AND MAINTENANCE TIPS ■ Visual inspections should be performed regularly. Check for damaged wires, loose fittings, as well as cracks or deformities in any plastic components. ■ Full inspections should be performed every six months by an electrician or electrical engineer. The AMTE-400 is designed to be mostly maintenance free. -
Page 15: Troubleshooting
TROUBLESHOOTING The following table was developed to help identify common faults and their applicable solutions. Please contact your supplier for faults not represented in this table. Troubleshooting should only be performed by an expert engineer. PROBLEM POSSIBLE CAUSE SOLUTION Motor does not function. No Battery not charged Charge Battery fully •... -
Page 16: Declaration Of Conformity
CE-Declaration of Conformity The manufacturer: Alfra Tools, LLC 100 Chaddick Drive Wheeling IL 60090 declares herewith that the following product: Passion For Tools Product type: Mounting Assembly Table Product description: AMTE-300 AMTE-400 Relevant Guidelines: FCC Part 15 Subpart B conforms to the regulations of the above quoted guideline.
