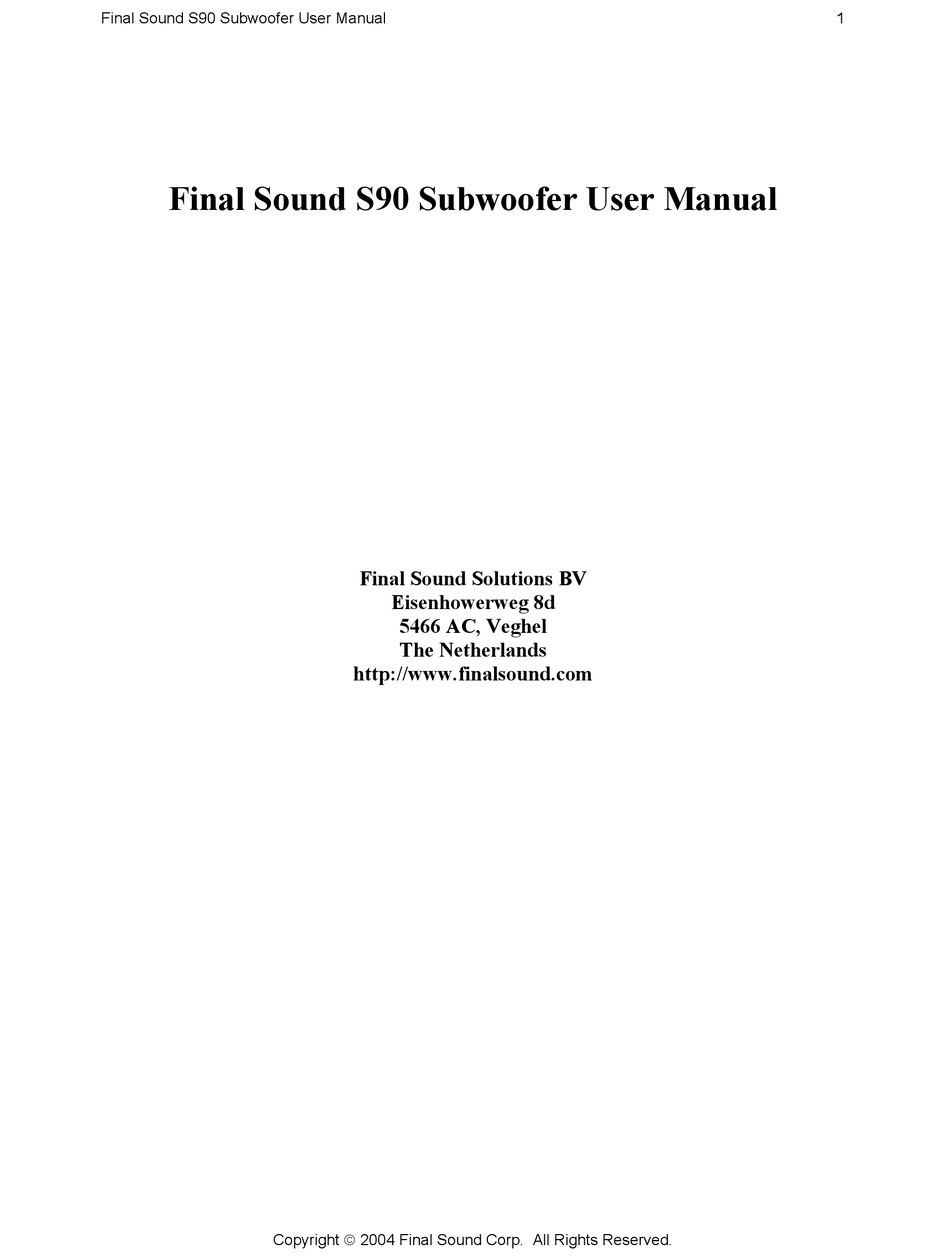

Final Sound S90 Subwoofer User Manual
1
Final Sound S90 Subwoofer User Manual
Final Sound Solutions BV
Eisenhowerweg 8d
5466 AC, Veghel
The Netherlands
http://www.finalsound.com
Copyright  2004 Final Sound Corp. All Rights Reserved.

Advertisement

loading

  Related Manuals for Final Sound S90

  Summary of Contents for Final Sound S90

  • Page 1 Final Sound S90 Subwoofer User Manual Final Sound S90 Subwoofer User Manual Final Sound Solutions BV Eisenhowerweg 8d 5466 AC, Veghel The Netherlands http://www.finalsound.com Copyright  2004 Final Sound Corp. All Rights Reserved.
  • Page 2: Table Of Contents

    ONNECTIONS 4.3. I ........................8 NSTALLATION OF FEET CONNECTING THE S90 TO YOUR SYSTEM................8 5.1. H ...........................8 EVEL NPUTS 5.2. L ..........................9 EVEL NPUTS ADJUSTING THE S90.........................9 OPERATIONAL GUIDELINES.......................10 CABINET CARE..........................10 SPECIFICATIONS..........................11 Copyright  2004 Final Sound Corp. All Rights Reserved.
  • Page 3: Important Safeguards

    Final Sound S90 Subwoofer User Manual 1. IMPORTANT SAFEGUARDS Please observe all the following safeguards when using your S90 subwoofer. 1. Save these instructions for future use. 2. Read all of these instructions. 3. Unplug from the wall socket before cleaning.
  • Page 4: Welcome

    Final Sound Home Theater setting by adding a Final Sound Center Speaker and/or another set of panels. The electronics are concentrated in one Central Unit.
  • Page 5 Final Sound S90 Subwoofer User Manual particular purpose. Final Sound shall not be liable for any special, incidental or consequential damages, whether in contract, tort, or otherwise. Copyright  2004 Final Sound Corp. All Rights Reserved.
  • Page 6: Design Safety

    High level outputs Switchable power supply (110/220V user selectable) The cabinet of the S90 uses 12mm thick high density composite walls. The cabinet is finished in a high gloss acrylic piano black finish. The amplifier is a 60W RMS at 4 ohm class A/B design. It is not a switching/class D amplifier, and as such has a very low noise floor.
  • Page 7: Control Panel

    Final Sound S90 Subwoofer User Manual 4.1. Control Panel The control panel of the S90 is labeled for easy identification and use. The most commonly adjusted controls are located the top of the amplifier, while the least accessed connections are located at the bottom.
  • Page 8: Installation Of Feet

    Final Sound S90 Subwoofer User Manual 4.3. Installation of feet The feet of the S90 are supplied loose. Installation of the feet is accomplished with 2 supplied screws for each foot. The cabinet and feet are pre-drilled for your convenience.
  • Page 9: Low Level Inputs

    6. ADJUSTING THE S90 Set the S90 in the desired location. Connect the S90 to the stereo or home theatre system (see the instructions in section 5). Set the volume control to a minimum, the crossover frequency to the 12 o’clock position and the phase to 0 degrees.
  • Page 10: Operational Guidelines

    Final Sound S90 Subwoofer User Manual 7. OPERATIONAL GUIDELINES As with all Final products, the S90 is designed to provide the highest level of performance. However, the S90 still has limits that should be observed. If the S90 begins to overload or heavily distort, turn down the bass or volume.
  • Page 11: Specifications

    Effective Internal Volume 12 liters sealed with 300 grams of polyester stuffing Driver 16,25cm long throw driver with XBL motor technology is a trademark of Extremis Audio, LLC, Lynnwood, WA, USA. Driver manufactured under license of Extremis Audio LLC, Lynnwood, WA, USA. Copyright  2004 Final Sound Corp. All Rights Reserved.
  • Page 12 Your FINAL SOUND Home Theatre System is provided with limited 3-year warranty coverage on the flat-panel speakers and 1-year warranty coverage for the Final Sound Central Unit and the subwoofer. The limited warranty will not be honored when the product has been used or handled other than in accordance with the instructions in the user manual.
