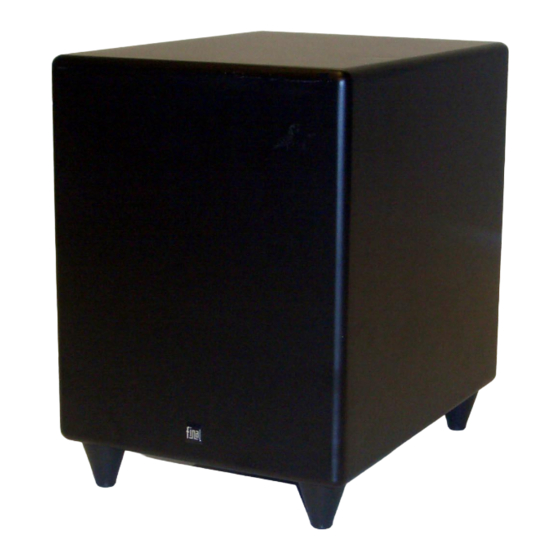

Final S95 Subwoofer User Manual
release 1.0 –US-
Final Sound Solutions B.V. Eisenhowerweg 8D 5466AC Veghel The Netherlands
http://www.finalsound.com
Final Sound, L.L.C. 500 West Cummings Park, Suite 2500 Woburn, MA 01801 T:(781) 938-6416 F:(781) 938-6415
FINAL SOUND SOLUTIONS S95 SUBWOOFER MANUAL vs. 1.0 -US-
1
c FSS 2007RJ
.

Advertisement

Table of Contents
loading

Related Manuals for Final Sound Final S95

Summary of Contents for Final Sound Final S95

  • Page 1 Final S95 Subwoofer User Manual release 1.0 –US- Final Sound Solutions B.V. Eisenhowerweg 8D 5466AC Veghel The Netherlands http://www.finalsound.com Final Sound, L.L.C. 500 West Cummings Park, Suite 2500 Woburn, MA 01801 T:(781) 938-6416 F:(781) 938-6415 FINAL SOUND SOLUTIONS S95 SUBWOOFER MANUAL vs. 1.0 -US-...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY INSTRUCTIONS..........................3 WELCOME ................................5 DESIGN SAFETY..............................6 LOUDSPEAKER & SUBWOOFER POSITIONING ...................6 FEATURES OF THE S95 SUBWOOFER.......................8 CONNECTING THE S95 TO YOUR SYSTEM ....................9 ADJUSTING THE S95 SUBWOOFER ......................10 PANEL LAYOUT..............................11 OPERATIONAL GUIDELINES........................11 CABINET CARE ...............................12 SPECIFICATIONS S95 ............................13 SUBWOOFER FAQ ............................14 LIMITED WARRANTY REGISTRATION ....................16 FINAL SOUND SOLUTIONS S95 SUBWOOFER MANUAL vs.

  • Page 3: Safety Instructions

    1. Safety Instructions WARNING: Do not exposure to rain, moisture or high humidity. Do not open - High voltage inside Do not cover the speaker. (e.g. with curtains) Use only a mains-adaptor approved for the country of use. Refer servicing to a qualified Final Sound dealer. Important Safety Instructions: 1) Read these instructions.
  • Page 4 The double insulation symbol indicates a double insulated product. In a double-insulated product, two systems of insulation are provided instead of grounding. The exclamation mark indicates that special attention has to be given to the indicated remark. FINAL SOUND SOLUTIONS S95 SUBWOOFER MANUAL vs. 1.0 -US- c FSS 2007RJ...

  • Page 5: Welcome

    2. Welcome Thank you for buying the Final Sound S95 subwoofer. The S95 is carefully hand built using the finest materials available and is designed for maximum performance. This manual contains important safety information as well as helpful advice and should be carefully studied before use.

  • Page 6: Design Safety

    3. Design Safety This subwoofer is supplied with a removable IEC power cord. Use only IEC power cords designed for the power receptacle of your country, and with a minimum current rating of 2.5A. For 220V operation, a 1A fuse is required. For 110V operation, a 2A fuse is required. In both cases the fuse must be rated for 250V operation.
  • Page 7 Typical room layout The following figure 0 represents a typical room set up for stereo and/or virtual surround. The figure shows: The subwoofer’s preferred positions. The base line between the front loudspeakers. The stereo loudspeaker’s position. A preferred unequal distance between the side walls and the panels (a, b). Figure 0 Daisy Chain subwoofers The S95 subwoofer presents the possibility for a daisy chain configuration.

  • Page 8: Features Of The S95 Subwoofer

    5. Features of the S95 SUBWOOFER PANEL CONTROLS (see figure 7) The S95 subwoofer has the following features, including: Variable volume (level) control (Min-Max) Auto turn-on Low level line-in Low level line out Switch able power supply (110-120/220-240V user selectable) The cabinet of the S95 uses 19mm thick high-density composite walls.

  • Page 9: Connecting The S95 To Your System

    6. Connecting the S95 to your system EXPLANATION OF AVAILABLE CONNECTIONS The line level input (LINE IN) is a standard RCA connector, and is compatible with the Final Sound FVSS-201 DVD Receiver’s Sub Out connector. WARNING: Eventually, the S95 can be driven by a standard AV-receiver’s LFE output. That’s only possible when this subwoofer output (LFE) is equipped with an internal low pass filter.

  • Page 10: Adjusting The S95 Subwoofer

    7. Adjusting the S95 subwoofer PROCEDURE - QUICK INSTALLATION- Position the subwoofer in the desired location. Connect the subwoofer according to this manual’s instructions. Set the sub’s volume control to a minimum. Follow the instructions in the Final Sound FVSS-201 DVD Receiver’s manual to set up the subwoofer, using the DVD Receiver’s menu.

  • Page 11: Panel Layout

    8. Panel Layout Figure 7 9. Operational Guidelines As with all Final products, the S95 is designed to provide the highest level of performance. However, the S95 still has limits that should be observed. If the S95 begins to overload or heavily distort, turn down the bass or volume. If the S95 overwhelms the output of the main speakers, turn down the volume.

  • Page 12: Cabinet Care

    Cabinet Care The finish on the S95 is a high strength, scratch-resistant acrylic. However, as with all fine furniture finishes the cabinet can still be scratched. Always unplug the S95 prior to cleaning. Do not clean or dust the cabinet with any abrasive cleaner. Use only a fine quality spray or wipe-on furniture/dust cleaner.

  • Page 13: Specifications S95

    Specifications S95 Size 36x27x33 with 5cm high feet Weight 11.5 kg Type Down firing + bass reflex Anechoic Frequency Response 35 Hz to 200Hz, 3 dB In-Room Frequency Response Typically 30 Hz to 243 Hz, 3 dB Less than 3% THD at 95 dB SPL from 35 Hz and up Maximum Output 105dB SPL in room Amplifier Type Discrete class A/B with linear power supply...

  • Page 14: Subwoofer Faq

    Subwoofer FAQ How can I connect my subwoofer and avoid hum and noise? Hum and noise in audio systems is caused by many interference sources. Most likely is the existence of a so-called ground loop. If there is more than one ground connection path between two pieces of equipment, a ground loop occurs.
  • Page 15 Should I unplug my subwoofer during lightning? Yes, but try to unplug the sub and the rest of your equipment before the lightning is straight above your house. Unplug the equipment physically from the AC-line. Switching it off or using the stand-by mode does not protect at all against lightning.

  • Page 16: Limited Warranty Registration

    Please fill in for warranty registration the serial number of the unit you have bought. (Serial number appear on labels at the back of the product) 1 Final S95 Subwoofer (e.g. S-95-A001 ): S95-A________________________________ To improve our products and customer service, we would greatly appreciate your answers to the following questions.
