Refridgerated catch pan raised rail pizza table

Advertisement

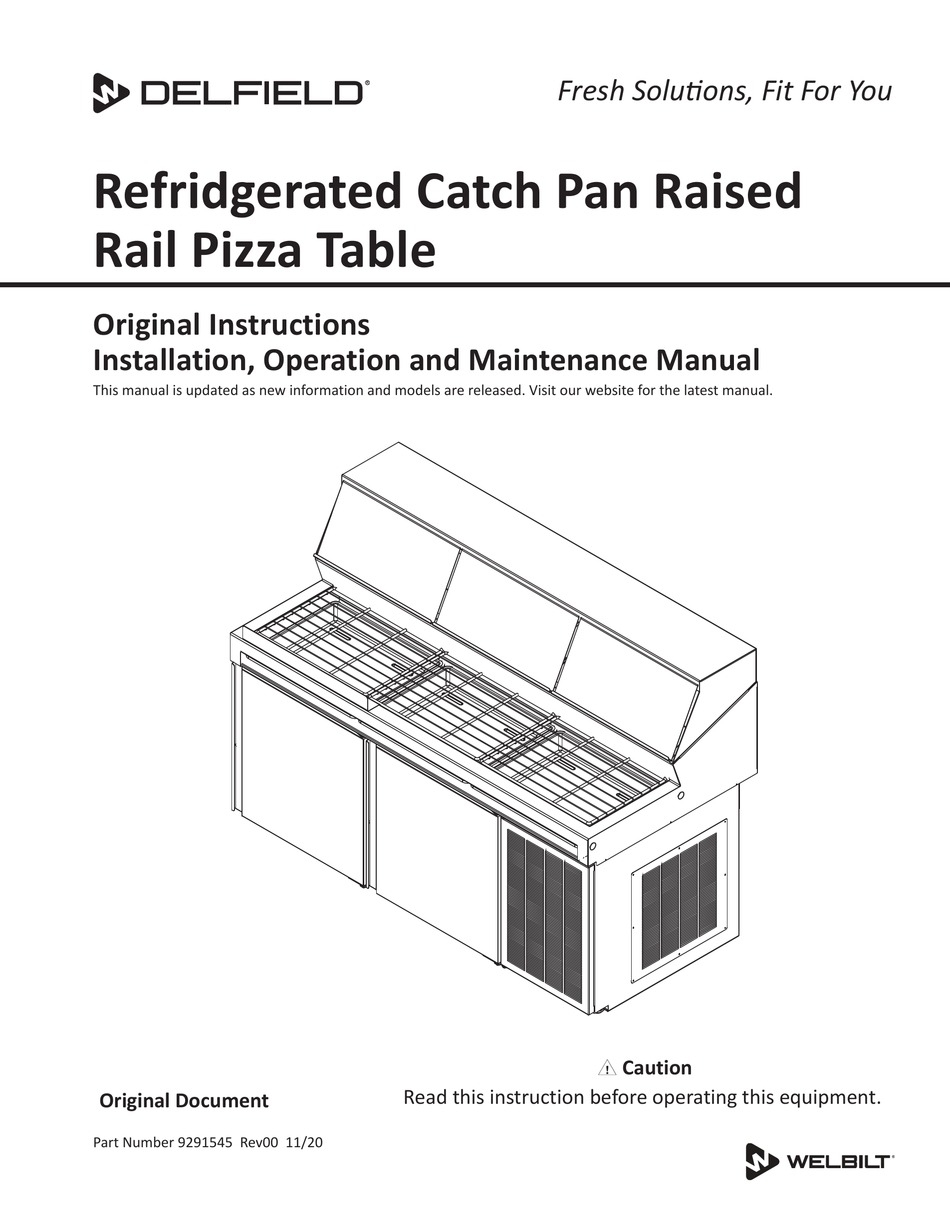

Fresh Solutions, Fit For You
Refridgerated Catch Pan Raised
Rail Pizza Table
Original Instructions
Installation, Operation and Maintenance Manual
This manual is updated as new information and models are released. Visit our website for the latest manual.
Caution
,
Read this instruction before operating this equipment.
Original Document
Part Number 9291545 Rev00 11/20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F18DC48P-RCPR and is the answer not in the manual?

Questions and answers

Summary of Contents for Delfield F18DC48P-RCPR

  • Page 1 Fresh Solutions, Fit For You Refridgerated Catch Pan Raised Rail Pizza Table Original Instructions Installation, Operation and Maintenance Manual This manual is updated as new information and models are released. Visit our website for the latest manual. Caution Read this instruction before operating this equipment. Original Document Part Number 9291545 Rev00 11/20...
  • Page 2 Safety Notices Warning This product contains chemicals known to the State of Warning California to cause cancer and/or birth defects or other Read this manual thoroughly before operating, installing reproductive harm. Operation, installation, and servicing or performing maintenance on the equipment. Failure of this product could expose you to airborne particles to follow instructions in this manual can cause property of glasswool or ceramic fibers, crystalline silica, and/...
  • Page 3: Table Of Contents

    Table of Contents Section 1 General Information Model Numbers ........................ 5 Serial Number Information ....................5 Warranty Information......................5 Regulatory Certifications ....................5 Section 2 Installation Location ..........................7 Weight Of Equipment ......................8 Clearance Requirements ....................8 Dimensions ........................8 Capacity ..........................
  • Page 4 Table of Contents (continued) Section 6 Service Information Wiring Diagrams For All Models ..................19 Replacement Parts ......................20 Mullion Coil Assemblies ....................20 Door Assemblies ......................21 Condensing Unit Assemblies .................... 21 Miscellaneous Replacement Parts ................... 22 Part Number: 9291545 REV00 11/20...
  • Page 5: General Information

    Always have the serial number of your unit available when calling for parts or service. Warranty Information Visit www.delfield.com/warranty to: • Register your product for warranty. • Verify warranty information. • View and download a copy of your warranty.
  • Page 6 General Information Section 1 THIS PAGE INTENTIONALLY LEFT BLANK Part Number: 9291545 REV00 11/20...
  • Page 7: Installation

    Section 2 Installation Warning DANGER Moisture collecting from improper drainage can create a Installation must comply with all applicable fire and slippery surface on the floor and a hazard to employees. health codes in your jurisdiction. It is the owners responsibility to provide a container or outlet for drainage.
  • Page 8: Weight Of Equipment

    • Casters or legs must be used and not removed DANGER Risk of fire/shock. All minimum clearances must be maintained. Do not obstruct vents or openings. Weight Of Equipment Custom Model Ship Weight F18DC48P-RCPR 485lbs (220kg) 485lbs (220kg) F18DC48P-RCPL F18DC72P-RCPR 718lbs (326kg) F18DC72P-RCPL...
  • Page 9: Electrical Service

    • Check all green ground screws, cables and wire connections to verify they are tight before start-up. Custom Model Amps H.P. Rail & Base / Catch Pan Volts/Hertz/Phase Plug F18DC48P-RCPR .35 / .20 115/60/1 5-15P F18DC48P-RCPL .35 / .20 115/60/1...
  • Page 10: Drain Connections

    Refrigeration Custom Model BTU System Capacity Heat of Rejection R290 Charge Base Rail Catch Pan Base Rail Catch Pan F18DC48P-RCPR 2676 1481 1093 2 x 5.3oz (150g) F18DC48P-RCPL 2676 1481 1093 2 x 5.3oz (150g) F18DC72P-RCPR 2676...
  • Page 11: Operation

    Never stand on the unit! They are not designed to hold Make Tables the weight of an adult, and may collapse or tip if misused Delfield refrigerated bases are designed to maintain an in this manner. operational temperature of 36°F to 40°F (2°C to 4°C). Self-...
  • Page 12: Instructions For Optimal Performance

    Operation Section 3 Instructions for Optimal Performance 5. At the end of the operation, the top rail/catch pan switch must be turned to the OFF position. The cabinet 1. The main switch is located behind the louvered door. It main switch remains ON. The rail frost will melt and flow controls the cabinet and must be in the ON position for down the drain line.
  • Page 13: Evaporator Fan Operation

    Section 3 Operation Evaporator Fan Operation as the evaporator fan will remain off until this initial defrost is complete. This initial defrost cycle may take up When the refrigerator is initially powered up or immediately to 35 minutes to complete. following a power outage the unit will begin cooling after a 3.
  • Page 14: Operation

    Operation Section 3 OPERATION All alarms sound for approximately 10 seconds and then are silent for 50 seconds. It will do that for 15 cycles and • Factory setting for the rail set-point is 10°F (-12°C). then remain silent. The alarm code will still be present on the •...
  • Page 15: Changing Display From Fahrenheit To Celsius On Erc112 Control

    Section 3 Operation CHANGING DISPLAY FROM FAHRENHEIT TO CELSIUS ON 6. -F should be displayed indicating Fahrenheit. Use the ERC112 CONTROL down arrow to change it to -C for Celsius and hit the stand-by button (lower left button) to enter the change. 1.
  • Page 16: Maintenance

    Section 4 Maintenance Warning DANGER When using cleaning fluids or chemicals, rubber gloves It is the responsibility of the equipment owner to perform and eye protection (and/or face shield) must be worn. a Personal Protective Equipment Hazard Assessment to ensure adequate protection during maintenance Caution procedures.
  • Page 17: Interior Cleaning

    Section 4 Maintenance Interior Cleaning DRAIN Drains can become loose or disconnected during normal use. The interior can be cleaned using soap and warm water. If Be sure all drain lines are free of obstructions. this isn’t sufficient, try ammonia and water or a nonabrasive liquid cleaner.
  • Page 18: Troubleshooting

    Section 5 Troubleshooting Troubleshooting Chart Problem Resolution Unit is not cooling Check main power switch. Make sure unit is plugged in. Check circuit breaker. Verify condenser coil is clean. Verify base evaporator fans are running. Top rail not holding temperature, Check rail on/off to make sure it is on.
  • Page 19: Service Information

    Section 6 Service Information Note: All wiring diagrams are for trained professional use only. Wiring Diagrams For All Models Control Schematic 000-SCH-0162 Compressor Schematic 000-SCH-0156 Part Number: 9291545 REV00 11/20...
  • Page 20: Replacement Parts

    Service Information Section 6 Replacement Parts MULLION COIL ASSEMBLIES F18DC48P-RCPR & F18DC48P-RCPL F18DC72P-RCPR & F18DC72P-RCPL Part # Description 48PL 48PR Part # Description 72PL & PR 000-248-003Z-S Coil Assembly, R290, Fan Lt, 000-248-003T-S Coil Assembly with probe, R290, EC Fans...
  • Page 21: Door Assemblies

    Section 6 Service Information Condensing Unit Assemblies DOOR ASSEMBLIES Part # Description Part # Description 000-BN5-004F-S Dual Condensing unit, 000-187-00FU-S Door assembly, 24”, RT 1/3hp & 1/4hp, 115V 23.75” x 25.72” (60cm X 65cm) 000-BN5-004G-S Dual Condensing unit, 000-187-00FV-S Door assembly, 24”, LT 1/3hp &...
  • Page 22: Miscellaneous Replacement Parts

    Service Information Section 6 Miscellaneous Replacement Parts Part # Description 263-BEU-0040-S Adapter bar MCP00175 Caster, 3” (8cm), with brake MCP00201 Caster, 3” (8cm), without brake 1703029 Catch Pan, gray, 21.75” x 18.58” (55cm x 47cm) 1703021 Catch Pan, gray, 22.50” x 18.58” (57cm x 47cm) 1703019 Catch Pan, gray, 23.62”...
  • Page 23 Section 6 Service Information Drawer Assembly KEY# PART NUMBER DISCRIPTION QUANTITY 000-373-004D DRAWER BOX ASSEMBLY 000-315-0036 DRAWER MULLION ASSEMBLY 000-328-0049 27” Drawer Front 2-Hi Part Number: 9291545 REV00 11/20...
  • Page 24 DELFIELD 980 SOUTH ISABELLA ROAD, MOUNT PLEASANT, MI 48858 800-733-8821 WWW.DELFIELD.COM ©2019 Welbilt Inc. except where explicitly stated otherwise. All rights reserved. Part Number 9291545 Rev00 11/20...
