Instruction Manual

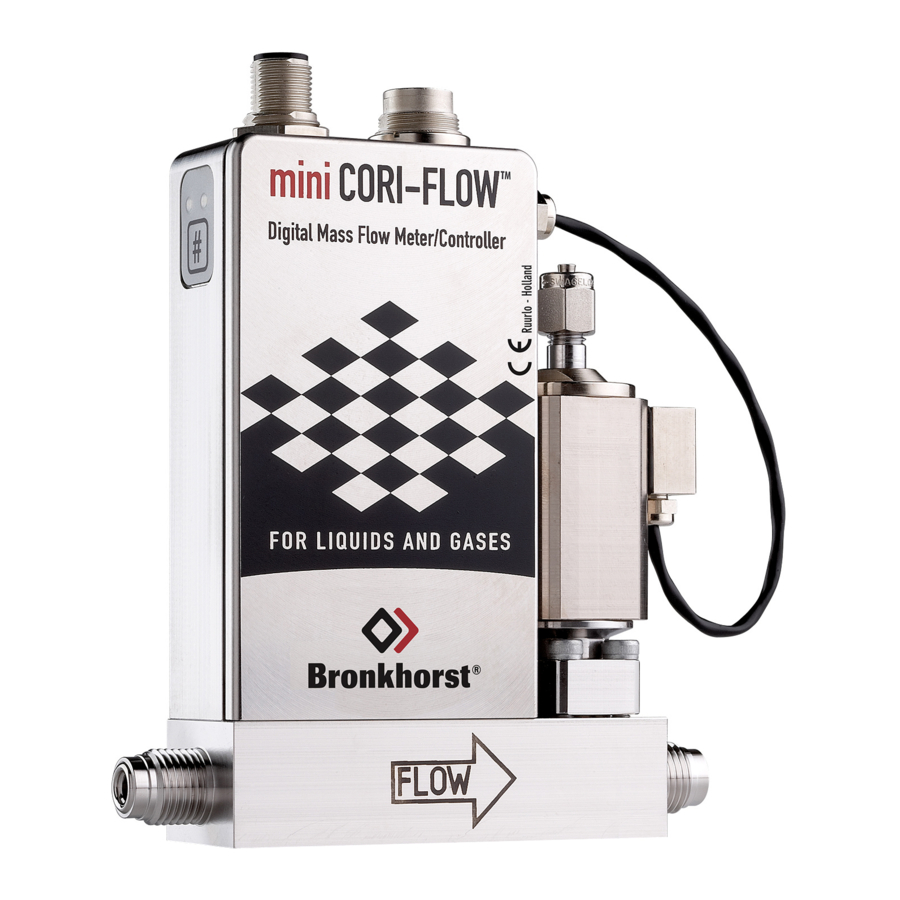

mini CORI-FLOW™ MI series
Industrial Coriolis Mass Flow
Meters/Controllers for Liquids and Gases
Doc. no.: 9.17.120 rev. D
Date: 31-05-2021
ATTENTION
Please read this document carefully before installing and operating the product.
Not following the guidelines could result in personal injury and/or damage to the equipment.
Advertisement
Table of Contents
Related Manuals for BRONKHORST mini CORI-FLOW MI Series
Summary of Contents for BRONKHORST mini CORI-FLOW MI Series
- Page 1 Instruction Manual mini CORI-FLOW™ MI series Industrial Coriolis Mass Flow Meters/Controllers for Liquids and Gases Doc. no.: 9.17.120 rev. D Date: 31-05-2021 ATTENTION Please read this document carefully before installing and operating the product. Not following the guidelines could result in personal injury and/or damage to the equipment.
- Page 2 Disclaimer This document has been reviewed and is believed to be accurate. Bronkhorst High-Tech B.V. does not assume liability for errors, inaccuracies or absence of information. The material in this document merely serves information and illustration purposes;...
- Page 3 Bronkhorst® Warranty Bronkhorst® products are warranted against defects in material and workmanship for a period of three years from the date of shipment, provided they are used in accordance with the ordering specifications and not subject to abuse or physical damage.
- Page 4 Bronkhorst® Instruction Manual MI Series Industrial mini CORI-FLOW™ 9.17.120D...
-
Page 5: Table Of Contents
Bronkhorst® Table of contents Introduction ......................7 Scope of this manual . - Page 6 Bronkhorst® 4.10 Adjusting zero point ......................27 4.10.1...
-
Page 7: Introduction
(e.g. pressure, temperature) as specified at ordering time. If you are planning to use the product (including any third party components supplied by Bronkhorst, such as pumps or valves) with other media and/or other conditions, always check the wetted materials (including seals) for compatibility. See the technical specifications of the product and consult third party documentation (if applicable) to check the incorporated materials. -
Page 8: Product Description
The analog output and the digital measured value are scaled accordingly. Switching between ranges can be done via the RS-232 interface or the fieldbus interface (if applicable), or with a Bronkhorst® readout and control unit (E-8000, BRIGHT). -
Page 9: Calibration
The MI Series comes with all necessary documentation for basic operation and maintenance. At some points this document refers to other documents, most of which can be downloaded from the Bronkhorst website. Insofar as agreed upon within the framework of the sales agreement, calibration certificates, test certificates and material certificates are included in the scope of delivery. - Page 10 Bronkhorst® The documentation listed in the following table can be downloaded from www.bronkhorst.com/downloads : Type Document Document no. General documentation EU Declaration of Conformity 9.06.059 Instruction manuals Manual CANopen 9.17.131 Manual DeviceNet™ 9.17.026 Manual EtherCAT® interface 9.17.063 Manual Ethernet/IP 9.17.132 Manual FLOW-BUS interface 9.17.024...
-
Page 11: Product Specifications
Pressure rating Bronkhorst® instruments are pressure tested to at least 1.5 times the specified operating pressure and outboard leak tested to at least 2 * 10 mbar l/s Helium. -
Page 12: Model Key
Bronkhorst® Model key The model key contains information about the technical properties of the instrument as ordered. The actual properties of your instrument can be retrieved from the diagram below. Instruction Manual MI Series Industrial mini CORI-FLOW™ 9.17.120D... -
Page 13: Customized I/O Options
Bronkhorst® Customized I/O options Optionally, MI Series instruments can be equipped with up to two additional input/output functions. These options are factory installed as specified at ordering time, and cannot be changed manually. model key on the serial number label contains information about the customized I/O configuration of your instrument. - Page 14 Bronkhorst® Code Description Digital frequency output, measure Measurement value is translated to a frequency within given frequency range. The default frequency range to represent 0…100% flow is 0…10000 Hz. Any other frequency range must be specified on order. Digital pulse output, batch counter M8/A2 is pulled down to 0Vdc when a given batch size is reached (during a given pulse length).
-
Page 15: Installation
If such a facility is not available, Bronkhorst can supply special suspension pads for stable, vibration free fixation. -
Page 16: Fluid Connections
For leak tight installation, follow the guidelines of the supplier of the fittings. · Bronkhorst® MI Series meters/controllers can be fitted with different fitting types (e.g. compression or face-seal) or special fitting types on request. Check the fluid system for leaks before applying full operating pressure, especially when using hazardous media (e.g. toxic or flammable). -
Page 17: Accessing Wiring Terminals
Bronkhorst® 3.2.1 Accessing wiring terminals · The instrument cover may only be opened in a clean, dry and non-hazardous environment. Before opening the cover, make sure that the operating environment is perfectly safe and that the electrical components · cannot be affected by moisture or aggressive atmospheric components. -
Page 18: Operation
Bronkhorst® Operation After correct installation and taking all necessary safety precautions, the MI Series can be used to measure and/or control flow. Powering up After cleaning at high temperature, allow the instrument to return to ambient temperature before turning it on. -
Page 19: Valve Safe State
Condensed water increases the tube's mass, causing a density measurement error. Continuous purging of the housing interior with a dry, inert gas like Nitrogen can help prevent condensation. Contact your Bronkhorst representative for setting up an optimal purging configuration. 4.7.2 Cleaning temperature The MI Series may be cleaned with high temperature fluids. -
Page 20: Communication
Bronkhorst® Communication The following table lists the communication modes the MI Series can be fitted with (ex factory): Connector/terminal Type Communication standard Fieldbus/protocol Main Analog 0…5Vdc 0…10Vdc 0…20mA 4…20mA Digital RS-232 ProPar RS-485 FLOW-BUS Modbus (RTU/ASCII) HART HART Fieldbus Digital... -
Page 21: Rs-232 Operation
USB to USB2.0 adapter cable to a Windows computer enables operation with the FlowWare software tools. Digital Bronkhorst® instruments can be monitored and operated via RS-232 using the free FlowWare software tools for Windows. These tools provide a graphical interface to the... -
Page 22: Led Indications
Bronkhorst® 4.9.1 LED indications The LED indications from the wiring terminal box are redirected to the exterior of the instrument. On the side of the fluid inlet, directly under the fieldbus connection glands (or sealing caps on instruments with no fieldbus interface), the instrument is equipped... -
Page 23: Multifunctional Switch
Bronkhorst® Mode and Error (alternating) Pattern Time Indication slow wink 1 sec on, Alarm indication; minimum/maximum alarm, power-up alarm, limit reached or batch 1 sec off size reached normal wink 0.2 sec on, Wink mode; by sending a command to the Wink parameter, the instrument flashes its 0.2 sec off... -
Page 24: Power-Up Functions
Bronkhorst® 4.9.2.2 Power-up functions In order to access these functions, press and hold the switch while powering up the instrument. · · The available functions are presented in a repeating sequence of patterns, where each pattern indicates a function. Indications in this sequence are flashing (0.2 sec on, 0.2 sec off). -
Page 25: Network Settings - Readout/Change
Bronkhorst® To execute a step, follow these instructions: Press and hold the switch (flashing slows) · · To select value 0 (zero), release the switch within 1 second, otherwise: · Count the number of LED flashes Release the switch when the required value is reached ·... -
Page 26: Rotary Switches
Bronkhorst® Changing network settings · By briefly pressing the switch 5 times with intervals of up to 1 second in normal operation mode, the instrument enters a state in which the node address and baud rate can be changed (non-Ethernet based protocols only; for Ethernet based protocols, network parameters are configured by the fieldbus master and cannot be set on the instrument). -
Page 27: Service Port
4.10 Adjusting zero point The zero point of a Bronkhorst® flow meter/controller (the measurement signal that indicates the absence of a flow) is factory adjusted at approximately 20 °C and atmospheric pressure (ambient conditions), with the instrument positioned upright. Under normal circumstances (i.e. when process conditions are constant), the zero point will remain stable. However, several factors might cause the instrument to develop a zero-stability error over time, causing it to detect a flow when actually there is none. -
Page 28: 4.10.1 Digital Procedure
Bronkhorst® 4.10.1 Digital procedure FlowPlot and FlowSuite provide an easy way to adjust the zero point of an instrument with RS-232 communication; the Autozero function automatically performs the procedure described here. To adjust the zero point using digital communication, set parameter values in the following sequence (see section... -
Page 29: Digital Parameters
Bronkhorst® Digital parameters This section describes the most commonly used parameters for digital operation of the MI Series. Descriptions are grouped by category in tables as shown below: Type Access Range FlowDDE FLOW-BUS Modbus [type] [x]…[y] [DDE par] [Pro]/[Par] [address]/[register] In this manual, parameter names are printed in italics (reverted to normal where embedded in italics, like in this tip). -
Page 30: Measurement And Control
Bronkhorst® Measurement and control Measure Type Access Range FlowDDE FLOW-BUS Modbus Unsigned int 0…41942 0x0020/33 (65535*) This parameter indicates the flow metered by the instrument. The value of 32000 corresponds to 100%, the maximum measured value output is 131.07%, which translates to 41942. - Page 31 Bronkhorst® Fsetpoint Type Access Range FlowDDE FLOW-BUS Modbus Float 0…3.4E+38 33/3 0xA119…0xA11A/ 41241…41242 Floating point variant of Setpoint. Fsetpoint shows the setpoint in the capacity unit for which the instrument is set. Like Fmeasure, Fsetpoint is dependent of Capacity, Capacity 0%, Capacity Unit and Sensor Type.
-
Page 32: Alarms
Bronkhorst® Alarms Alarm settings are most easily accessible using FlowPlot or FlowView or a Bronkhorst® readout and control unit. The built-in alarm functionality can be used to handle different alarm types: · system errors and warnings min/max alarms · ·... -
Page 33: Counter
Description Multifunctional switch Externally (deprecated) By parameter Reset Automatically (when alarm conditions no longer apply) Counter Counter settings are most easily accessible using FlowPlot or FlowView or a Bronkhorst® readout and control unit. Counter Mode Type Access Range FlowDDE FLOW-BUS... - Page 34 Bronkhorst® Available modes: Value Description Counter off (default) Counting up continuously Counting up until limit reached (set by Counter Limit) Counter Unit Type Access Range FlowDDE FLOW-BUS Modbus Unsigned char[4] see table 104/7 0xE838…0xE839/59449…59450 below This parameter contains the name of the counter readout unit.
-
Page 35: Network Configuration
Bronkhorst® Reset Counter Enable Type Access Range FlowDDE FLOW-BUS Modbus Unsigned char 0…15 104/9 0x0D09/3338 Available reset methods for counters. Up to 3 different methods can be specified. The value is a bitwise summation of the enabled reset methods; convert the value to binary to see which methods are enabled. -
Page 36: Fluid Set
Bronkhorst® Fieldbus 1 Address Type Access Range FlowDDE FLOW-BUS Modbus Unsigned char 0…255 125/10 0x0FAA/4011 Fieldbus 1 Baud Rate Type Access Range FlowDDE FLOW-BUS Modbus Unsigned long 0…1.0E10 125/9 0xFD48…0xFD49/64841…64842 Fieldbus 1 Parity Type Access Range FlowDDE FLOW-BUS Modbus Unsigned char 0…2... -
Page 37: Advanced Fluid Set Parameters
Bronkhorst® Available units: Mass flow Normal volume flow Standard volume flow Custom volume flow (1.01325 bar(a), 0 °C) (1.01325 bar(a), 20 °C) (Capacity Unit Type Pressure, Capacity Unit Type Temperature) ug/h, ug/min, ug/s, uln/h, uln/min, uln/s, uls/h, uls/min, uls/s, ul/h, ul/min, ul/s,... -
Page 38: Controller
Controller The picture below shows a basic diagram of the PID controller algorithm (proportional, integral, derivative) used by digital Bronkhorst® instruments. The controller speed controls the overall performance of the controller algorithm. Basically, to adjust the controller response, only the controller speed needs to be changed. -
Page 39: Master/Slave Configuration (Flow-Bus)
Bronkhorst® PID-Ti Type Access Range FlowDDE FLOW-BUS Modbus Float 0…1E+10 114/22 0xF2B0…0xF2B1/62129…62130 PID controller integral action in seconds. PID-Td Type Access Range FlowDDE FLOW-BUS Modbus Float 0…1E+10 114/23 0xF2B8…0xF2B9/62137…62138 PID controller derivative action in seconds. The default value is 0.0. -
Page 40: Device Identification
Instrument serial number for identification. BHT Model Number Type Access Range FlowDDE FLOW-BUS Modbus Unsigned char[35] 113/2 0xF110…0xF117/ 61713…61720 This parameter shows the Bronkhorst® instrument model type information. Firmware Version Type Access Range FlowDDE FLOW-BUS Modbus Unsigned char[6] 113/5 0xF128…0xF12A/ 61737…61739 Revision number of the firmware Instruction Manual MI Series Industrial mini CORI-FLOW™... -
Page 41: Special Parameters
Identification Number Type Access Range FlowDDE FLOW-BUS Modbus Unsigned char 0…255 113/12 0x0E2C/3629 Bronkhorst® (digital) device type identification number. Device Type Type Access Range FlowDDE FLOW-BUS Modbus Unsigned char[6] 113/1 0xF108…0xF10A/ 61705…61707 Device type information string; this parameter contains an abbreviation referring to the identification number. -
Page 42: Default Control Mode
Bronkhorst® Control Mode Type Access Range FlowDDE FLOW-BUS Modbus Unsigned char 0…255 115/1 0x0024/37 Control Mode is used to select different control modes of the instrument and determines from which source(s) it accepts a setpoint. The following control modes are available:... - Page 43 Bronkhorst® Changing from digital operation to analog operation: 1. Set parameter Init Reset to 64 (unlocked) 2. Read parameter IO Status 3. Add 64 to the read value 4. Write the new value to parameter IO Status 5. Set parameter Init Reset to 82 (locked) Changing from analog operation to digital operation: 1.
-
Page 44: Troubleshooting And Service
To track down problems in the fluid system, depressurize the fluid system and disconnect the suspected unit from the process line. Dirt or clogging might be quickly detected by visual inspection on disassembled fluid connections. If you suspect leakage, do not disassemble the device for inspection, but contact your Bronkhorst representative for service or repairs. -
Page 45: Restoring Factory Settings
(see Multifunctional switch) · with the restore function of a Bronkhorst® readout and control unit (BRIGHT, E-8000) Changes made to the network settings (bus address, baud rate, parity) will not be restored by a factory reset. 6.3.1 Manual procedure ·... - Page 46 Bronkhorst® Symptom Possible cause Action pressure to valve and slowly increase voltage. If valve does not open, clean parts and re-adjust valve Sensor failure Return equipment to factory Measurement disturbed by Control behavior unstable If possible, avoid installation in close ·...
- Page 47 Bronkhorst® Symptom Possible cause Action components (e.g. adapters, tubing, valves) Continuous maximum measured Inlet pressure too high Check inlet pressure value or output signal Valve fully open Close valve · · Check if valve is in safe state (normally open valves);...
-
Page 48: Service
If you have questions about a product or if you find the product does not meet the specifications as ordered, do not hesitate to contact your Bronkhorst representative. To enable us to help you quickly and effectively, make sure to have the serial number ready whenever seeking contact with your Bronkhorst representative about a specific item. -
Page 49: Removal And Return Instructions
Service & Support section of the Bronkhorst website (www.bronkhorst.com). Important: Clearly note, on top of the package, the customs clearance number of Bronkhorst High-Tech B.V.: NL801989978B01 (only if applicable, otherwise contact your Bronkhorst representative for local arrangements.) 9.17.120D... - Page 50 Bronkhorst® Instruction Manual MI Series Industrial mini CORI-FLOW™ 9.17.120D...
-
Page 51: Parameter Index
Bronkhorst® Parameters - Master/Slave Parameter index Master Node Slave Factor Parameters Parameters - Measurement and control Parameters - Alarms Analog Input Alarm Delay Time Density Actual Alarm Info Fmeasure Alarm Maximum Limit Fsetpoint Alarm Minimum Limit Measure Alarm Mode Pressure...
