Instruction Manual

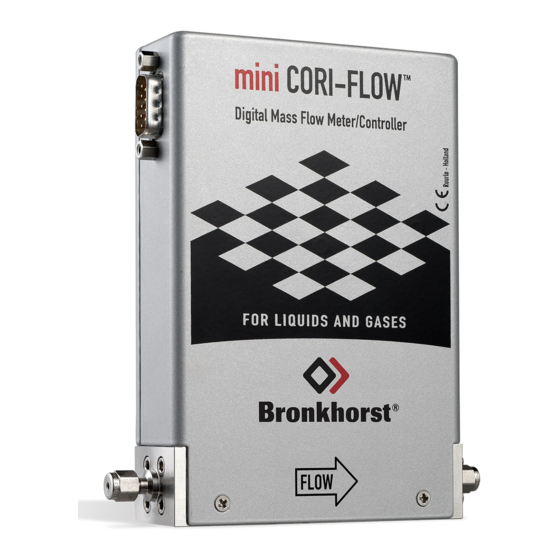

mini CORI-FLOW ML120
(Ultra) Low Flow Coriolis
Mass Flow Meters / Controllers
Doc. no.: 9.17.097E Date: 18-05-2016
ATTENTION
Please read this Instruction Manual carefully before installing and operating the instrument. Not
following the guidelines could result in personal injury and/or damage to the equipment.

Advertisement

Table of Contents
loading

Related Manuals for BRONKHORST mini CORI-FLOW ML120

Summary of Contents for BRONKHORST mini CORI-FLOW ML120

  • Page 1 Instruction Manual mini CORI-FLOW ML120 (Ultra) Low Flow Coriolis Mass Flow Meters / Controllers Doc. no.: 9.17.097E Date: 18-05-2016 ATTENTION Please read this Instruction Manual carefully before installing and operating the instrument. Not following the guidelines could result in personal injury and/or damage to the equipment.

  • Page 2: Receipt Of Equipment

    Subject to technical and optical changes as well as printing errors. The information contained in this document is subject to change at any time without prior notification. Bronkhorst® reserves the right to modify or improve its products and modify the contents without being obliged to inform any particular persons or organizations. The device specifications and the contents of the package may deviate from what is stated in this document.

  • Page 3: Safety Precautions

    Bronkhorst® Warranty Bronkhorst® products are warranted against defects in material and workmanship for a period of three years from the date of shipment provided they are used in accordance with the ordering specifications and not subjected to abuse or physical damage.

  • Page 4: Table Of Contents

    ......................20 mini CORI-FLOW ML120...
  • Page 5 ......................50 9.17.097 mini CORI-FLOW ML120...

  • Page 6: Scope Of This Manual

    Scope of this manual Introduction This manual covers the general part of digital mini CORI-FLOW ML120 mass flow instruments for gases and liquids. It treats the general instructions needed for the instruments. More information can be found in other documents.

  • Page 7: References To Other Applicable Documents

    Bronkhorst® References to other applicable documents Basic instructions Dimensional drawings Document 9.17.093 Document 7.05.925 Quick installation guide mini CORI-FLOW ML120 Dimensional drawing mini CORI-FLOW ML120 Advanced instructions Hook-up diagrams Document 9.17.024 Document 9.16.132 Instruction manual FLOW-BUS interface Hook-up diagram ML Series instruments RS232 and Analog Document 9.17.025...

  • Page 8: Starting Up

    If another liquid or gas is used, always make sure that the specified seals are compatible with this fluid. Bronkhorst® cannot be held responsible for any damages caused by the user, applying the instruments for fluids that were not specified during purchase, or caused by exceeding the indicated maximum operating pressure/temperature.

  • Page 9: Instrument Mounting

    EMC requirements is not possible without the use of proper cables and connector/gland assemblies. Bronkhorst® recommends the use of their standard cables. These cables have the right connectors and if loose ends are used, these will be marked to prevent wrong connection. When using other cables, cable wire diameters should be sufficient to carry the supply current and voltage losses must be kept as low as possible.

  • Page 10: Analog / Digital Operation

    - setpoint (controllers only) Connect the ML120 series instrument to the power supply/readout unit using a cable with 9-pin sub-D connector according to the Bronkhorst® standard for the Sub-D9 connector. The next two examples have the following electrical properties: : +15...+24 Vdc...

  • Page 11: Micro Switch Operation And Led Indication

    The red and green LED will blink turn-by-turn for a few seconds to indicate that the auto-zero wasn’t able to find a zero (because of too much noise in the signal). This is mostly the case when the instrument is placed in a vibrating 9.17.097 mini CORI-FLOW ML120...

  • Page 12: Zeroing Using Micro Switch

    If the signal is not stable zeroing, it will take a long time and the nearest point to zero is accepted. The procedure will take approx. 40 sec. Make sure there is no flow through the instrument when performing the zeroing procedure. mini CORI-FLOW ML120 9.17.097...

  • Page 13: Purging

    2.12 Calibration Each mini CORI-FLOW ML120 instrument is factory calibrated. Bronkhorst® certifies that all instruments meet the rated accuracy. Calibration is performed using measurement standards traceable to the Dutch Metrology Institute (VSL). Calibration certificates are included in the shipment. Periodical inspection, recalibration or verification of the accuracy may be subject to individual requirements of the end-user.

  • Page 14: Temperature Considerations

    (continuous): · Tfluid + Tambient < 130°C With: · Tfluid < 130°C · T ambient < 80°C In all situations: · Tfluid > 0°C · Tambient > 0°C · Storage temperature (dry tube) [-30 .. 80]°C mini CORI-FLOW ML120 9.17.097...

  • Page 15: Basic Operations

    Mass flow measurement and control After correct installation of the mini CORI-FLOW ML120 series Mass Flow Meter (MFM) or Mass Flow Controller (MFC) and all safety precautions have been taken into account (see chapter 2) the instrument can immediately be used for measuring/ controlling the required flow rate in the system by means of the selected communication interface(s).

  • Page 16: Valve Safe State

    · PROFINET interface (section 3.5 and document 9.17.095) Above documents can be found at: http://www.bronkhorst.com/en/downloads The interpretation of the LED indications and use of the micro switch button on top of the instrument is discussed in section 3.6 and section 3.7 respectively.

  • Page 17: Analog Operation

    Hook-up A special T-part cable (7.03.366) is required for connecting the 9- pin sub-D side connector of an mini CORI-FLOW ML120 series instrument to a COM port of a pc for RS232 communication. Optionally use an RS232 to USB2.0 converter (9.09.122) to connect to a USB port.

  • Page 18: 3.4.1.2 Bright

    Bronkhorst® Keep in mind that the 9-pin sub-D configuration of a Bronkhorst® instrument differs from the 9-pin sub-D configuration of a PC COM-port. Make sure the correct cables are used for hook-up. When in doubt, always check the hook-up diagrams associated with the instruments.

  • Page 19: Software

    Baud rate setup mini CORI-FLOW ML120 series instruments support the following baud rates for RS232 communication. The factory selected baud rate is indicated on the instrument back-side label. Refer to section 4.2.2 for changing the baud rate settings for the instrument.

  • Page 20: Basic Rs485 (Flow-Bus/Modbus) Operation

    3.4.6 Hook-up The illustrations below show examples of a number of mini CORI-FLOW ML120 Series instruments in an RS485 bus-system. Note that many other bus configurations are possible, contact your local sales representative for more information. Please check the total power consumption of your instruments and do not exceed the maximum power of the power supply.

  • Page 21: Software

    3.4.7 Software When using a pc to communicate with an mini CORI-FLOW ML120 instruments only the FLOW-BUS protocol is supported by Bronkhorst® software. When using Modbus operation, software from third parties, such as LabVIEW, ModScan or a Modbus PLC must be used to serve as Modbus master.

  • Page 22: Baud Rate, Node Address And Parity Setup

    Baud rate, node address and parity setup mini CORI-FLOW ML120 Series instruments are configured from the factory. If there is a need of changing any of the specified RS485 settings, see the tables below for the supported configurations. The default selections are presented in bold.

  • Page 23: Hook-Up

    Changing EtherCAT® Second Address EtherCAT® supports the use of a Second Address. Bronkhorst® instruments have 3 rotary switches, with which a Second Address can be set in the range of 0 – 4095 (0xFFF). This value of the rotary switches will be copied to the Configured Station Alias register (address 0x0012:0x0013) at instrument start-up.

  • Page 24: Led Indications

    PROFIBUS DP: Not used Modbus: Not used DeviceNet Not used EtherCAT®: Not used PROFINET: Not used • 2 sec on, Long flash Field bus specific warning message mini CORI-FLOW ML120 9.17.097...

  • Page 25: Micro Switch Functions

    Using digital RS485 operation via the 9-pin sub-D side connector it is also possible to read/set: · Bus-address (node-address) (only required for RS485) The micro switch on top of the mini CORI-FLOW ML120 can be operated with a thin, metal or hard plastic pin, for example the end of a paperclip.

  • Page 26: Basic Parameters And Properties

    Most instrument parameters can only be accessed with digital communication. For each communication protocol the instrument parameters are accessed differently. When using Bronkhorst software programs FlowView or FlowPlot, easy access is provided to the mostly used parameters by menu interfaces. When using other communication methods the...
  • Page 27 [address] Hexadecimal PDU Address [index] Decimal register number For the Modbus protocol every two bytes are addressed separately. PROFIBUS DP, DeviceNet , EtherCAT® or PROFINET Refer to the specific field bus manual for reading/changing parameters via field bus communication. 9.17.097 mini CORI-FLOW ML120...

  • Page 28: Basic Identification Parameters

    Basic alarm and counter settings The alarm and counter settings are most easily accessible via FlowPlot or FlowView software or any of the Bronkhorst readout/control units (BRIGHT, E-8000). For more information about the alarm parameters see section 4.1.4, for the counter parameters see section 4.1.5.

  • Page 29: Instrument Parameter List

    Bronkhorst® 3.8.5 Instrument parameter list The table below lists the relevant parameters for the mini CORI-FLOW ML120, sorted by FlowDDE parameter number. FlowDDE Parameter name Purpose Section parameter Wink Special instrument parameter Section 4.1.2 Init Reset Special instrument parameter Section 4.1.2...

  • Page 30: Basic Measurement And Control Parameters

    Basic measurement and control parameters The list below provides the most basic parameters for digital communication with the instrument. The parameters below are most easily accessible via FlowPlot or FlowView software or any of the Bronkhorst® readout/ control units (BRIGHT, E-8000).
  • Page 31 Fsetpoint’, is also available in the capacity and capacity unit for which the instrument has been set, see section 4.1.1. Actual Density Type Access Range FlowDDE FLOW-BUS Modbus Float -3.40282E 116/15 +38... 3.40282+38 Thi s pa ra meter s hows the Actua l Dens i ty mea s ured by the (mi ni ) CORI-FLOW. 9.17.097 mini CORI-FLOW ML120...

  • Page 32: Advanced Operation

    Description Controller/Sensor Pressure (no counting allowed Controller Liquid volume Liquid/gas mass Gas volume Other sensor type (no counting allowed) Pressure (no counting allowed Sensor Liquid volume Liquid/gas mass Gas volume Other sensor type (no counting allowed) mini CORI-FLOW ML120 9.17.097...

  • Page 33: Special Instrument Parameters

    Special instrument parameters All parameters described in this section have influence on the behavior of the mini CORI-FLOW ML120. Please be aware that wrong settings can disrupt the output. To avoid unintentional changes, some parameters are locked (shown by the B symbol).
  • Page 34 Control Mode’ will be set to ‘Analog input’ or ‘BUS/RS232’, depending on the customer’s default setting for analog or digital operation. If however the ‘ Control Mode’ is set to a value other than 0, 1, 9 or 18 the actual control mode setting is maintained after power-up. mini CORI-FLOW ML120 9.17.097...

  • Page 35: Advanced Fluidset, Range And Operating Conditions Parameters

    (configurable) properties, such as ‘ Fluid Name’, ‘ Capacity’, etc. Default value = 0 (fluid 1). The ' Fluid Number' parameter is also accessible via FlowPlot or FlowView software or any of the Bronkhorst® readout/ control units (BRIGHT, E-8000). Fluid Name Type...
  • Page 36 FlowDDE FLOW-BUS Modbus Unsigned char[7] See below 1/31 0x81F8...0x81FB/33273...33276 For mini CORI-FLOW ML120 the following units can be set: Mass flow Normal volume flow Standard volume flow Actual volume flow (1.01325 bar(a), 0 °C) (1.01325 bar(a), 20 °C) Capacity Unit Pressure,...
  • Page 37 · Value 0: Volume fraction · Value 1: Mass fraction · Value 2: Mole fraction Mix Fraction Temperature Type Access Range FlowDDE FLOW-BUS Modbus RW B Float -250...500 126/5 0xFE28...0xFE29/65065...65066 Temperature for the mixture specification in °C 9.17.097 mini CORI-FLOW ML120...

  • Page 38: Advanced Alarm Parameters

    · Gas name, e.g. 'N2', 'He', 'C3H6 #2'. · CAS number, e.g. '7727-37-9', '7440-59-7', '115-07-1' 4.1.4 Advanced alarm parameters Bronkhorst® digital instruments have a built-in alarm function. It is used to indicate several types of alarm: · System errors · System warnings · Min/max alarms ·...
  • Page 39 · Value 1: New setpoint at alarm enabled (set at value ‘ Alarm New Setpoint’) Alarm New Setpoint Type Access Range FlowDDE FLOW-BUS Modbus Unsigned int 0…32000 97/6 0x0C26/3111 New (safe) setpoint during an alarm until reset. Range 0…32000 represents 0…100% setpoint. Default value = '0'. 9.17.097 mini CORI-FLOW ML120...

  • Page 40: Advanced Counter Parameters

    Counter New Setpoint’) Counter New Setpoint Type Access Range FlowDDE FLOW-BUS Modbus Unsigned int 0…32000 104/6 0x0D06/3335 New (safe) setpoint when a counter limit is reached until reset. Range 0…32000 represents 0…100% setpoint. Default value = '0'. mini CORI-FLOW ML120 9.17.097...

  • Page 41: Field Bus Operation

    4.2.1 FLOW-BUS master/slave controller operation mini CORI-FLOW ML120 instruments offer possibilities for master/slave control via FLOW-BUS. The output value of any instrument connected to FLOW-BUS is automatically available to all other instruments (without extra wiring). To setup master/slave control the ‘...

  • Page 42: Changing Baud Rate, Node Address And Parity

    For the accepted values see the applicable field bus in chapter 3. Fieldbus 2 baudrate Type Access Range FlowDDE FLOW Modbus -BUS Unsigned long RW B 0…10000000000 124/9 0xFC48...0xFC49/64585...64586 For the accepted values see the applicable field bus in chapter 3. mini CORI-FLOW ML120 9.17.097...
  • Page 43 Bronkhorst® Fieldbus 2 parity Type Access Range FlowDDE FLOW-BUS Modbus RW B Unsigned char 0…2 124/12 0xFC60/64609 The following values are accepted: 0 – no parity 1 – odd parity 2 – even parity 9.17.097 mini CORI-FLOW ML120...

  • Page 44: Special Instrument Features

    Customized IO options (pin 5) mini CORI-FLOW ML120 instruments offer various customized input/output functions through pin 5 of the 9-pin sub-D side connector as an option. A number of the (factory installed) programmable IO options are offered as standard, these options are described in this section.
  • Page 45 Digital input, reset counter The counter resets when pin 5 is connected to 0 Vdc. Example for -I1R- or -I2R- hook-up Digital input, reset alarm The alarm resets when pin 5 is connected to 0 Vdc. 9.17.097 mini CORI-FLOW ML120...

  • Page 46: Changing Default Control Mode

    Troubleshooting and service Diagnostics When errors or warnings occur, connect the instrument to the Bronkhorst® support software to determine the cause of the error or warning. For errors/warnings, connect the instrument to FlowPlot and open the 'Alarm & Count' section under 'Instrument Settings' to determine the cause of the alarm/warning message.

  • Page 47: Troubleshooting

    - This only applies to external proportional valves. Piping or filters blocked 2f) clean system Sensor failure 2g) return to factory Maximum output signal Output stage damaged 3a) return to factory Sensor failure 3b) return to factory 9.17.097 mini CORI-FLOW ML120...
  • Page 48 10c) Measure long enough to get a reliable measurement Right reference instrument 10d) The mini CORI-FLOW is a mass-flow meter/controller and should not be checked with a volume-meter. Totalization error Pulsating or fast changing flow Use dampener to stabilize inlet pressure. mini CORI-FLOW ML120 9.17.097...

  • Page 49: Service

    Bronkhorst® Service For current information on Bronkhorst® and service addresses please visit our website: ü http://www.bronkhorst.com Do you have any questions about our products? Our Sales Department will gladly assist you selecting the right product for your application. Contact sales by e-mail: ›...

  • Page 50: Removal And Return Instructions

    All instruments must be dispatched with a completely filled in 'declaration on contamination form'. Instruments without this declaration will not be accepted. Important: Clearly note, on top of the package, the customer clearance number of Bronkhorst High-Tech B.V., namely: NL801989978B01 If applicable, otherwise contact your distributor for local arrangements.
