Summary of Contents for BRONKHORST MASS-STREAMT D-6300

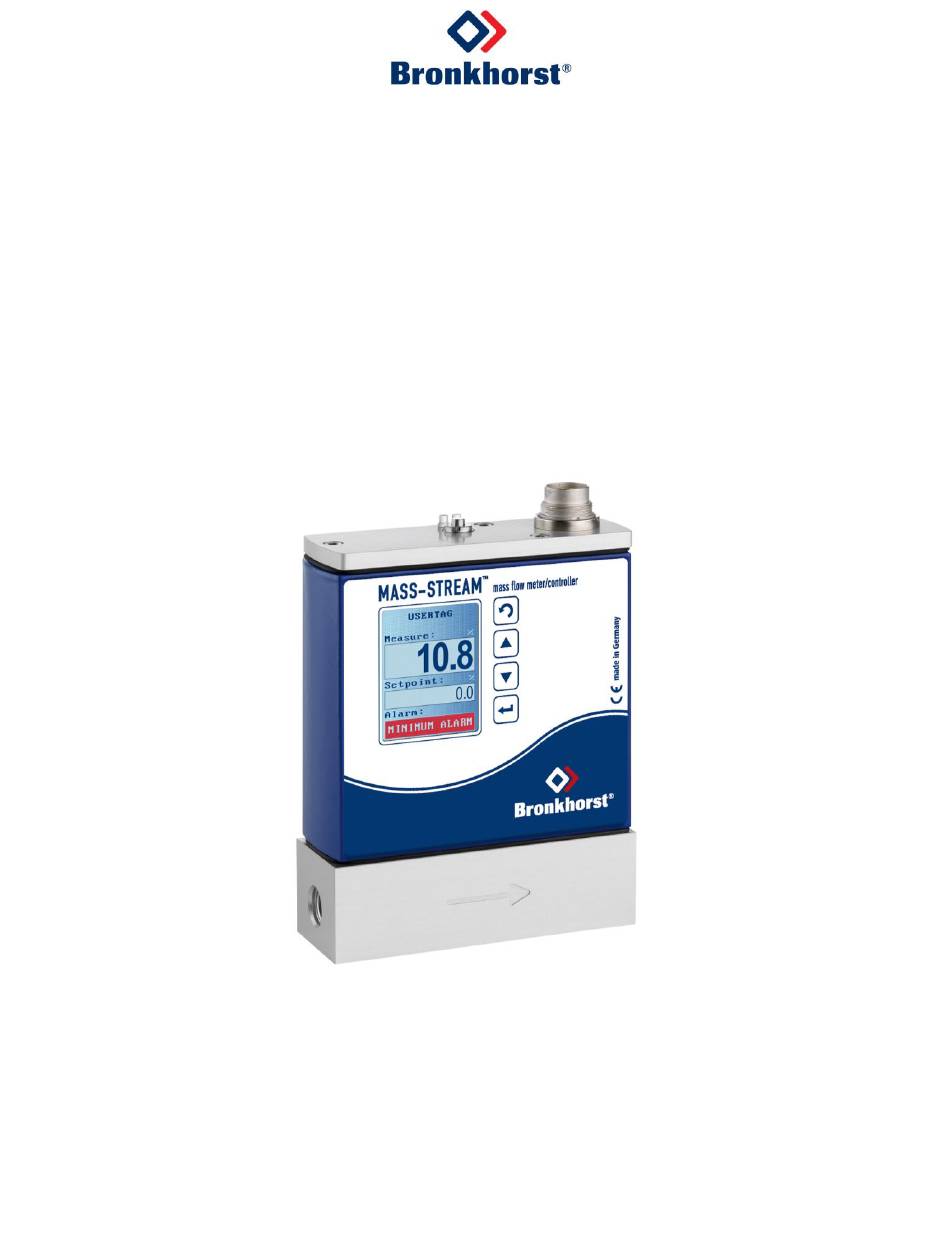

Page 1

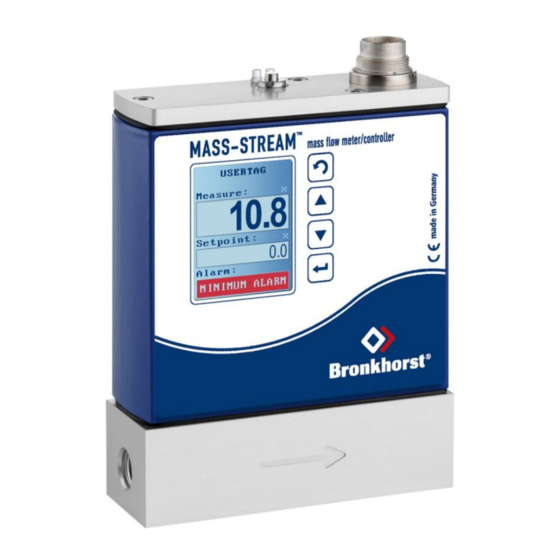

MASS-STREAM Instruction Manual D-6300 Digital Mass Flow Meters / Controllers Doc. No.: 9.17.104B Date: 27-12-2018 ATTENTION Before installing and operating the instrument it is strongly recommended that this instruction manual should be read carefully. Not following the guidelines could result in personal injury and/or damage to the equipment.
Page 2
D-6300 for mass flow measurement and control of gases and the communication between the instrument and the operator according to the specific (fieldbus) protocol. ® Further information can be found in the Bronkhorst manuals, which are also valid for the Mass-Stream model series D-6300.
Page 3
The opening of the instruments is only permitted by certified service personnel authorized by the Customer Service Department (CSD) of our parent company Bronkhorst High-Tech B.V. The products of M+W Instruments GmbH are warranted against defects in material and...
Page 4
See also paragraph A-V and B-II of the Terms and Conditions of sales of the M+W Instruments GmbH. The warranty includes all initial and latent defects, random failures, and indeterminable internal causes. It excludes failures and damage caused by the customer, such as contamination, improper electrical hook-up, physical shock etc.
4.1 Input Signal via FlowView..................19 MANUAL INTERFACE: Micro Switches and LED’s……………………………… 23 The dimensional drawings and hook-up diagrams of the MASS-STREAM Digital Instruments D-6300 available download website www.bronkhorst.com. MASS-STREAM Instruction Manual D-6300 Page 5 off 34 9.17.104B – Date of issue: 2018-12...
Baud rate = 38400 Baud, no parity, 8 data bits, 1 stop bit. ® In case of any trouble during installation or to set up the communication Bronkhorst programs like FlowDDE or Hyperterminal (available in MS-Windows) could be very useful.
DIGITAL INSTRUMENTS 2.1 General The digital instruments of M+W Instruments GmbH are measurement devices for thermal mass flow and control of gases. They are equipped with a digital electronic multi-bus pc-board and consist of a micro-controller with peripheral circuitry for measuring, controlling and communication.
Page 8
In case of any damages the supplier and the freight forwarder have to be contacted without delay. In the event of any discrepancies please get in touch with your local distributor (see www.bronkhorst.com) or contact us directly: M+W Instruments GmbH Dorfstr. 1 D-85391 Leonhardsbuch Tel.: +49 8166 9921 0...
The declaration of decontamination is available on our accompanying CD with each instrument shipment or it can be downloaded from our website www.bronkhorst.com. Please mention the instrument’s model code and the serial number on your order, as well as your VAT number when needed.
Page 10
All devices have Withworth pipe threads – type RP – according to ISO228-1 (cylindrical G-threads in inches according to BSPP). The mounting of NPT-fittings will destroy the inlet threads in the instrument’s body. Using an inlet pipe with sufficient piping diameter is recommended. The length of the inlet pipe should be at least 10 times the piping diameter.
2.3 Operation and Maintenance When the power is switched on a warm-up period of at least 30 sec is required allowing the instrument’s thermal stabilisation. Afterwards the instrument will work with an accuracy of approximately 4% FS. It takes around 30 minutes until the optimal stability is reached and the instrument will work with an accuracy of <...
The instrument compares setpoint and actual value and controls the valve, until both values match within the tolerances. 2.5 Specifications of MASS-STREAM Digital Instruments D-6300 Measurement System Accuracy ± 2% FS including non-linearity (based on calibration with Air) (± 1% FS or ± 1.5% FS on request) Repeatability <...
Page 13
Mechanical Parts Sensor Stainless steel 1.4404 (AISI 316L) Aluminium EN AW-6082-T6 anodized Instrument body Stainless steel 1.4404 (AISI 316L) Sieves Stainless steel Distance parts Teflon or Stainless steel IP65 Protection (with & without display) (IP40 with Profibus Sub-D9 connector) Operating Limits up to 1…100% (1:100) for meters Measuring range...
2.5.1 8DIN Connector, 8-pin round (female) 8 DIN CONNECTOR BINDER SERIE 423 99.5672.19.08 BLACK TUBING DETAIL FOLD THE SHIELD OF THE CABLE BACK OVER THE CABLE.(THE SHIELD MUST BE AROUND THE CABLE) SHIELD OF THE CABLE SHOULD BE CONNECTED TO THE CONNECTORHOUSING O-RING DETAIL solder-side...
MEASUREMENT PRINCIPLE AND CALIBRATION 3.1 CTA Through-Flow Measurement The direct through-flow measurement with CTA (Constant Temperature Anemometry) is also named inline measurement. The working principle is based on King’s law of the ratio between the heater energy and the heat degradation by means of gas flow or liquid flows published in 1914.
3.2 Calibration and Look-up Table The calibration is processed with a mass flow controller which functions as a reference. The controller and the gas inlet pressure forward a defined gas flow, thus a raw signal of the sensor can be allocated to each specific mass flow. To generate and store the look-up table in the instrument up to 21 measurement points are recorded and equally arranged over the total measurement range.
OPERATION VIA RS232 To operate the device from a personal computer via the serial interface it is recommended to install the FlowDDE software. Like other software it can be found on the CD which is accompanying the despatched goods. FlowDDE is required for the following software operations.
Page 18
Having selected the COM-Port and Baud-Rate you need to start the communication between a personal computer and the instrument via ‚F3’ or by clicking on the menu “Communication“, being followed by a second click on “Open communication“. FlowDDE on your monitor should show the following picture: MASS-STREAM Instruction Manual D-6300 Page 18 off 34...
® The Bronkhorst FlowView software is ideal for easily used standard operations. FlowView can be found on the CD which is accompanying the despatched goods and can be down-loaded from http://downloads.bronkhorst.com. Covered Functions: Setpoint adjustment Actual reading Gas selection for multi-gas instruments ...
Page 20
With analogue pre-settings the setpoint can be set via the designated pin 3 in the DIN8 connector or, following the changeover to the control mode, via RS232. To change over in the above named control mode click on “Advanced“ to open further options.
Page 21
Alarm functions / Counter adjustments The adjustment of alarm and counter functions is well supported by FlowView. Click on the button “Alarm & Counter“ to open a frame for the adjustment of all settings. MASS-STREAM Instruction Manual D-6300 Page 21 off 34 9.17.104B –...
Page 22
Example of counter adjustments: MASS-STREAM Instruction Manual D-6300 Page 22 off 34 9.17.104B – Date of issue: 2018-12...
MANUAL INTERFACE: Micro Switches and LED’s The micro-switch on top of the digital instrument can be used to start a certain function on the instrument. When the switch is pressed down, both LED’s will start indicating different patterns in a loop. The switch has to be pressed down until the 2 LED’s are indicating the right pattern.
Page 24
Table 1: Green LED indications on digital instruments (without using the micro switch) green LED Time Indication continuously Power-off or program not running continuously normal running/operation mode Special mode, see specific fieldbus for more details FLOW-BUS PROFIBUS DP / DeviceNet Modbus-RTU short 0.1 sec on /...
Page 25
Table 2: Red LED indications on digital instruments (without using the micro switch) Red LED Time Indication continuously No error Bus communication warning. Instrument functions o.k. See specific fieldbus for more details FLOW-BUS PROFIBUS DP / DeviceNet short 0.1 sec on / Modbus-RTU flash 2 sec off...
Page 26
Table 3: LED indications using micro switch at normal running mode of an instrument green Time Indication Pressing a switch shortly by accident will not cause unwanted reactions of instrument 0 – 1 sec Pressing the switch 3 times briefly with intervals of max.
Page 27
Table 4: LED indications using micro switch at power-up situation of an instrument green LED red LED Time Indication No action 0 – 4 sec Pressing a switch shortly by accident will not cause unwanted reactions of the instrument Restore parameters normal All parameter settings (except fieldbus settings) 4 –...
Page 28
Readout of bus-address/MAC-ID and baud rate: Pressing the micro switch 3 times briefly with intervals of max 1 second in normal running/operation mode will trigger the instrument to “show” its bus address/MAC-ID and baud rate. For the indication of the bus-address/MAC-ID the green LED will flash the amount of tens and the red LED the amount of units in the number.
Page 30
Table 7: Procedure for changing bus address/MAC-ID and baud rate Step Action Signal Time Handling both LED’s force instrument Press micro switch during 12–16 into flash normal power-up and release when sec after “remote/manual both LED’s indicate normal 0.2 sec on / power-up install mode“...
Page 31
The instrument returns to the “normal running/operation mode“. Changes are valid when they are made within the time-out period (60 sec). The actual setting of the bus address/MAC-ID and baud rate can be checked by pressing the switch 3 times briefly with intervals of max 1 sec. For more details see also table 5. Note 1: The value zero will be indicated by a period of 1 sec off (0.5 sec off / 0.5 sec.
Page 32
Table 8: Overview of setpoint/control modes Slave Setpoint Master Mode Instrument action factor source Source source Bus/RS232 controlling Bus/RS232 external input controlling analogue input controlling as slave FLOW-BUS / Master/Slave FLOW-BUS from other instrument FLOW-BUS RS232 slave process RS232 on bus valve close closed valve stand-by on...
Page 33
Change setpoint/control mode For switching between different control mode functions for a digital meter or controller several modes are available. The output signals (sensor signals) on both the analogue and the fieldbus interface are available at the same time. Pressing the micro switch 4 times briefly with intervals of max 1 sec in normal running/operation mode will trigger the instrument to “change”...
Page 34
Table 10: Procedure for changing the setpoint/ control mode number Step Action Indication Time Handling green LED Press switch and count green flashes flashes for tens of setpoint/control 0.2 sec on / mode number. 0.2 sec off set tens of Release when wanted amount has setpoint/ time-out...
