- Page 1 Summit SB-1150 Wheelchair Scale Version 11439 Technical Manual PN 158041 Rev G...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
-
Page 3: Table Of Contents
Course descriptions and dates can be viewed at www.ricelake.com/training or obtained by calling 715-234-9171 and asking for the training department. © Rice Lake Weighing Systems. All rights reserved. Printed in the United States of America. Specifications subject to change without notice. - Page 4 Contents Specifications ..........................27 SD-1150-WP Scale Warranty......................28 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars Summit SB-1150...
-
Page 5: Introduction

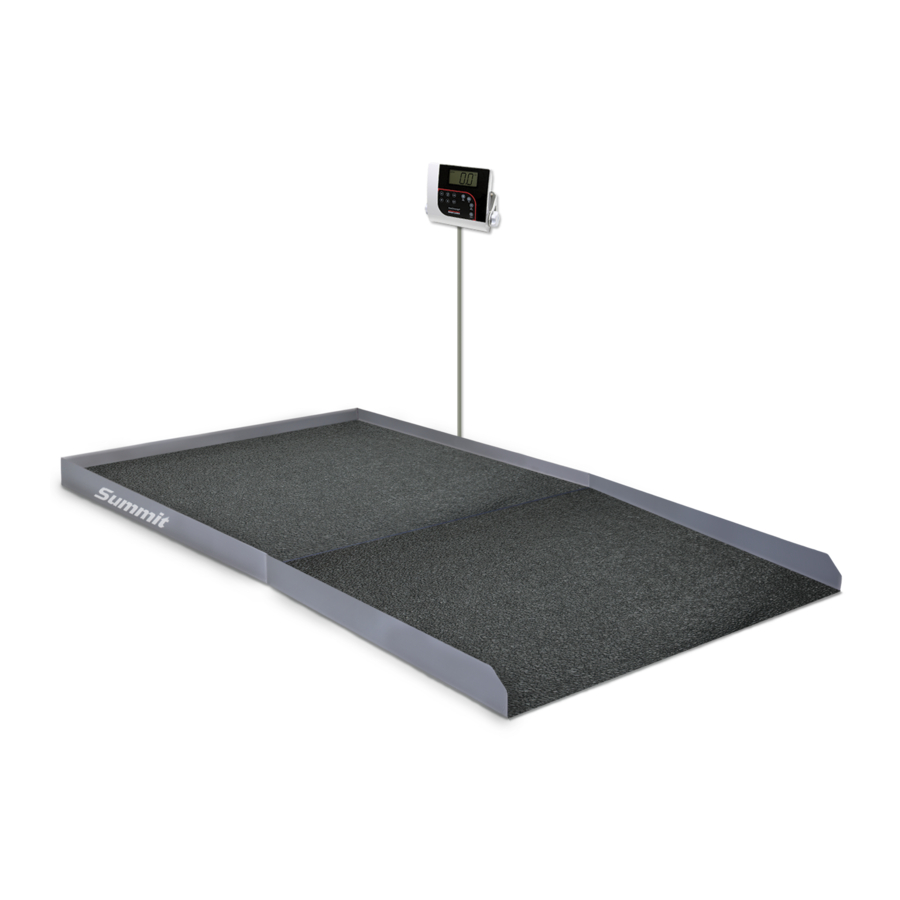

The Summit SB-1150 Bariatric Wheelchair Scale is a fully electronic, low profile floor scale that measures 36 in x 36 in (.91 m x .91 m), and has a capacity up to 1000 lb (500 kg). The SB-1150 uses four corner-mounted, alloy steel shear beam load cells, with the cells recessed into the frame channels for protection. -
Page 6: Safety
Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals. WARNING Failure to heed may result in serious injury or death. -
Page 7: Installation
10-ft length of load cell cable. The Summit SB-1150 has one threaded hole located in the center of the deck to allow for the installation of an eyebolt. An eyebolt hook and chains can then be used to lift the scale. It is recommended to use a 1/2 in-20NF eyebolt for lifting the scale. -
Page 8: Assembly
7. The cable must be routed to the indicator in a manner that will protect the cable from damage. The method of cable protection in non-washdown applications is shown in Figure 2-3 on page 5. Leave a loose coil of excess cable under the scale to facilitate lifting of the scale for servicing and cleaning Summit SB-1150 Scale... - Page 9 SCALE FLOOR LOAD CELL CABLE Figure 2-3. Cable Protection 8. Complete the connections to the indicator once the cable is protected and in its final position. 9. Trim corners, if necessary. See Figure 6.3 on page 10. Ensure all strain relief fittings are tight. 11.
-
Page 10: Indicator
1. Unscrew and remove the tilt stand bracket from the indicator. Unscrew tilt stand knobs and remove tilt stand from indicator Figure 2-5. Remove Tilt Stand 2. Remove the four back retaining screws remove the back cover to the indicator. Summit SB-1150 Scale... - Page 11 Figure 2-6. Remove Back Cover of Indicator 3. Plug the end of the load cell cable into the load cell connection. When it clicks the load cell cable is properly seated into the connection. Load Cell Connection Figure 2-7. Load Cell Connection Point 4.
-
Page 12: Inserting Batteries
Batteries must be removed from the unit prior to long periods of disuse or long term storage. Optional Power Connections Rice Lake Weighing Systems offers optional AC adapters to use when power is available. USB power can also be used. -
Page 13: Operation
Operation This section describes the indicator, functionality of each button and basic scale operations. Figure 3-1. Indicator Front Panel Item Function Access the BMI (Body Mass Index) function. The BMI function must be enabled in configuration and a sta- ble weight must be displayed. Subtract weight off the scale. -
Page 14: Powering The Scale
ENTER 3. Press to accept the entered value and start the tare function. The weight is displayed with a negative symbol to the left of it and the annunciator is displayed. Summit SB-1150 Scale... -
Page 15: Body Mass Index
4. Step on the scale with the additional items. The weight is displayed and the annunciator remains on. The weight of the additional items remain stored in memory. TARE 5. To cancel the tare weight, press and hold until the annunciator is no longer displayed. -
Page 16: Configuration
• When a parameters selections/values are correct, press the key. displays. ENTER SAVE • When all parameters selections/values are correct, press the key again. displays ENTER DONE • Press the key to cycle back to the top level menu choices Summit SB-1150 Scale... -
Page 17: Programming Mode Menu
Programming Mode Menu Power Off Power On-Off Press and START Kg-Lb Key hold Press and hold the OP1=X OP2=X Software Version Kg-Lb key = DEF = Software ID to advance OP3=X SET=X to option 0.000 2 through OP4=X T-OFFX option 8. Full xxx OP5=X SAVE... -
Page 18: Default Menu
ENTER DONE 4. Press the key to return to main menu. Selecting YES and pressing the ENTER key will reset to factory defaults settings without changing the calibration and returns the indicator to weigh mode. Summit SB-1150 Scale... -
Page 19: Scale Calibration
Done 16. Press the key to return to weigh mode. ENTER To exit calibration without changing zero or span existing calibration, press the key, then the key. CLEAR Summit SB-1150 Scale... -
Page 20: Test Menu
Test Menu To access the menu: TEST 1. Ensure the scale is off. 2. Press and hold the key and the key until displays. On/Off ENTER 3. Press the key again. ENTER 4. Continue to press the key to scroll through the various menu items. 5. -
Page 21: Communication
Communication The indicator comes with an RS-232 port which enables weight data to be transmitted to other equipment, such as a computer or printer. The RS-232 cable with DB-9 connector (PN 100719) is available from Rice Lake Weighing Systems. Figure 5-3 on page 20 shows where the RS-232 connection is located on the indicator. -
Page 22: Escape Protocol
Sets the value of the scale’s global settings. value) Example: <ESC><CUOM=m><ESC><E sets the unit of measurement. Table 5-2. ESC Characters Name of Control Identifier Unit Unit of Measure (metric or constitutional) c (m or c) Table 5-3. Scale Global Values List and Identifiers Summit SB-1150 Scale... -
Page 23: Maintenance Protocol
Samples of Escape Protocol Examples of what is sent to the computer from the scale. direction of communication <SCALE> <PC> <SCALE> <PC> <ESC> R <ESC> W0210.9 <ESC> Nm <ESC> E <ESC>R <ESC>E Reading Reading Unit of Measure (request) (Command) = Metric Weight = 0210.9 Escape Protocol Example 1 Escape Protocol Example 2... -
Page 24: Usb Connection
Basic information on USB driver installation using Windows is described in the following steps and serves only as an example. A USB driver can be downloaded from the Rice Lake Weighing Systems website at: https://www.ricelake.com/resources/software-firmware 1. Click on Software Figure 5-4. - Page 25 3. Find the . Click on to open and download the driver to a local computer. Titanium USB Driver Download Figure 5-6. Example of Drivers List Page 4. When the USB cable is connected to the indicator and the scale is turned on, a display prompts to navigate through the software install process.
- Page 26 A single print ticket has four spaces after PATIENT WEIGHT, one space between the weight value and units (lb), and seven <CR><LF> after Figure 5-10. IT Example Ticket Important Figure 5-10 is for IT information only. The tickets print as in Figure 5-9. Summit SB-1150 Scale...
-
Page 27: Maintenance And Troubleshooting
Maintenance and Troubleshooting Maintenance The following section provides instructions for maintaining and cleaning the Rice Lake line of scales. Do not immerse the scale in cleaning or other liquid solutions. Important Do not use Isopropyl alcohol or other solutions to clean the indicator display surface. -
Page 28: Load Cell Replacement
Load Cell Replacement Replacement load cells can be ordered from Rice Lake Weighing Systems. To replace a load cell, lift the scale with a chain and remove the foot and then remove the defective load cell. Disconnect the load cell cable from the junction box and cut the cable ties. -
Page 29: Wiring Load Cell To Junction Box
Ensure the threaded holes for the load cell screws are free of debris. Use compressed air to blow out the holes, if necessary. Position the load cells with alignment arrows pointed up toward the deck and loosely install the provided hex head cap screws as shown in Figure 6-1 on page 24. - Page 30 Rezero the indicator and repeat the test until all corners read within ±.1% of the test weight used. The scale must be calibrated after the load cell trimming process is complete. See Section 4.4 on page 15 Summit SB-1150 Scale...
- Page 31 Specifications Electrical Grounding For systems where the scale is connected to a 115 VAC circuit, the indicator must be directly connected to an earth ground with a ground interface cable of no more than 3W resistance throughout its length. Load Cell Excitation Rated Excitation: 10 VDC Maximum Excitation: 15 VDC Grade Level Requirements...
- Page 32 SD-1150-WP Scale Warranty Rice Lake Weighing Systems (RLWS) warrants that all RLWS equipment and systems properly installed by a Distributor or Original Equipment Manufacturer (OEM) will operate per written specifications as confirmed by the Distributor/OEM and accepted by RLWS. All systems and components are warranted against defects in materials and workmanship for two years.
- Page 34 Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319 www.ricelake.com...
