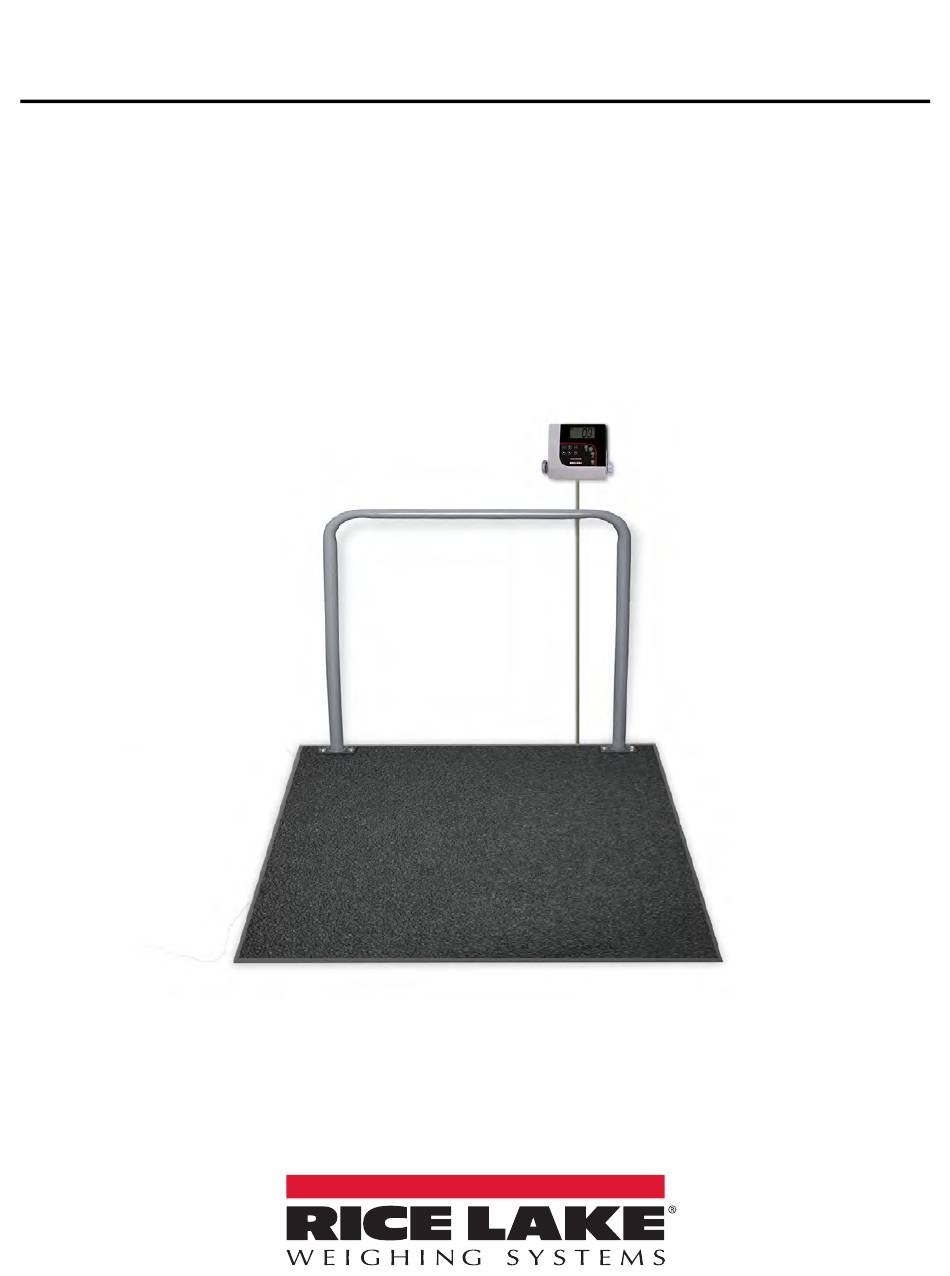

- Page 1 Summit SD-1150-WP ™ Dialysis Wheelchair Scale Software Version 11525 Operation Manual August 18, 2022 PN 197294 Rev A...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
- Page 3 Established a revision history; formatted content to match other medical manuals; software version 11525 Table i. Revision Letter History Technical training seminars are available through Rice Lake Weighing Systems. Course descriptions and dates can be viewed at www.ricelake.com/training or obtained by calling 715-234-9171 and asking for the training department.
-
Page 4: Table Of Contents
6.0 Specifications ............... . . 15 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. -
Page 5: Introduction

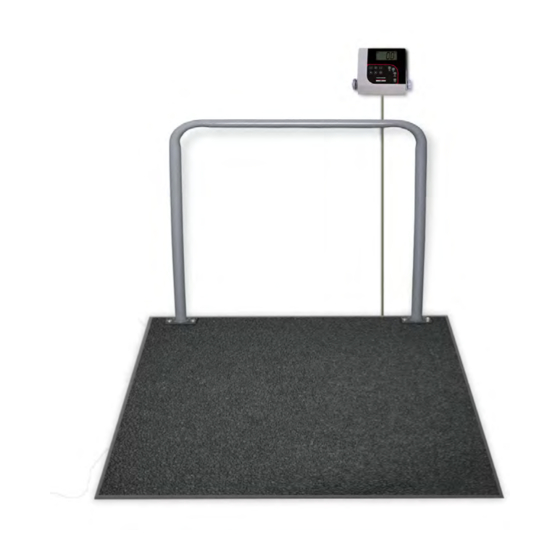

The Summit SD-1150-WP dialysis wheelchair scale is a heavy-duty scale that offers exceptional performance measuring 36 in x 36 in (0.91 m x 0.91 m) and has a capacity of up to 1000 lb (500 kg). The Summit SD-1150-WP dialysis wheelchair scale is designed to be mounted in a pit flush with the floor. -
Page 6: Safety
Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals. -
Page 7: Installation
10 ft length of load cell cable. The Summit SD-1150-WP dialysis wheelchair scale has one threaded hole located in the center of the deck to allow for the installation of an eyebolt. An eyebolt hook and chains can be used to lift the scale. It is recommended to use a 1/2 inch-20NF eyebolt for lifting the scale. -
Page 8: Assembly
Summit SD-1150-WP Wheelchair Scale Assembly The scale feet are shipped attached to the scale. 1. Ensure each foot is screwed in until the foot touches either the load cell or the underside of the deck. 2. Unscrew each foot three complete turns and level the scale so all of the feet are in contact with the floor. -
Page 9: Insert Batteries
Power Connection An optional AC power adapter can be used when a power outlet is available. Only use power adapters supplied by or purchased from Rice Lake Weighing Systems. The use of a power IMPORTANT adapter not from Rice Lake Weighing Systems voids the warranty. -
Page 10: Load Cell Connections
Summit SD-1150-WP Wheelchair Scale Load Cell Connections The indicator and scale comes factory installed with a load cell cable connection. Follow the procedure below if the load cell cable needs to be replaced or reconnected to the indicator. 1. Unscrew and remove the tilt stand bracket from the indicator to gain access to the load cell connection. -
Page 11: Pit Installation
A 1:24 slope is recommended for the pit with full grouting under the corner pads. Load Cell Foot Assembly Grout 1:24 Slope Figure 2-10. Installed Summit SD-1150-WP and Pit Frame Section Dimensions Dimensions for the Summit SD-1150-WP are provided in Figure 2-11. -
Page 12: Operation
Summit SD-1150-WP Wheelchair Scale Operation This section describes the front panel and includes procedures for operation of the scale. Figure 3-1. Front Panel Keypad Key Descriptions The display has 10 front panel keys. Key functions are described in the table below. -
Page 13: Weighing
(default is programmed to be 33.0 lb/15.0 kg). 2. Use to adjust the value. Press to start the tare function. The NET annunciator turns on instead ENTER of the GROSS annunciator. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 14: Using The Body Mass Index (Bmi) Function
Summit SD-1150-WP Wheelchair Scale Using the Body Mass Index (BMI) Function Use the following steps in determining the BMI. 3.6.1 LB Mode 1. Ensure that the scale is at zero. 2. Place the patient on the scale to obtain a weight. The LOCK annunciator appears on the display. -
Page 15: Troubleshooting
Note: Load cell connection point is located underneath the curved plastic cover of the indicator. Remove four back retaining screws, remove curved back cover to access load cell connection point. Table 3-2. Troubleshooting Table © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 16: Communications
The unit comes with an RS-232 port that enables weight data to be transmitted to other equipment, such as a computer or printer. The RS-232 cable with DB-9 connector (PN 100719) is available from Rice Lake Weighing Systems. That connection is shown in USB Connection section on the next page. -
Page 17: Usb Connection
5. With weight on the scale, press and hold the Print button on the indicator for three seconds. The patient’s weight is sent to the PC. Figure 4-3. Patient Weight Displayed © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 18: Maintenance
Summit SD-1150-WP Wheelchair Scale Maintenance The following section provides instructions for maintaining and cleaning the unit. Basic Maintenance Before the first use of the scale and after periods of non-use, check the scale for proper operation and function. If the scale does not operate correctly, contact a qualified service personnel. -
Page 19: Specifications
Rated Excitation 10 VDC Maximum Excitation 15 VDC Grade Level Requirements The supporting surface for the four feet of the scale must be level within 1/4'' of horizontal. Certifications and Approvals E113896 © Rice Lake Weighing Systems ● All Rights Reserved... - Page 20 Summit SD-1150-WP Wheelchair Scale www.RiceLake.com Visit our website...
- Page 22 © Rice Lake Weighing Systems Specifications subject to change without notice. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319 August 18, 2022 PN 197294 Rev A...
