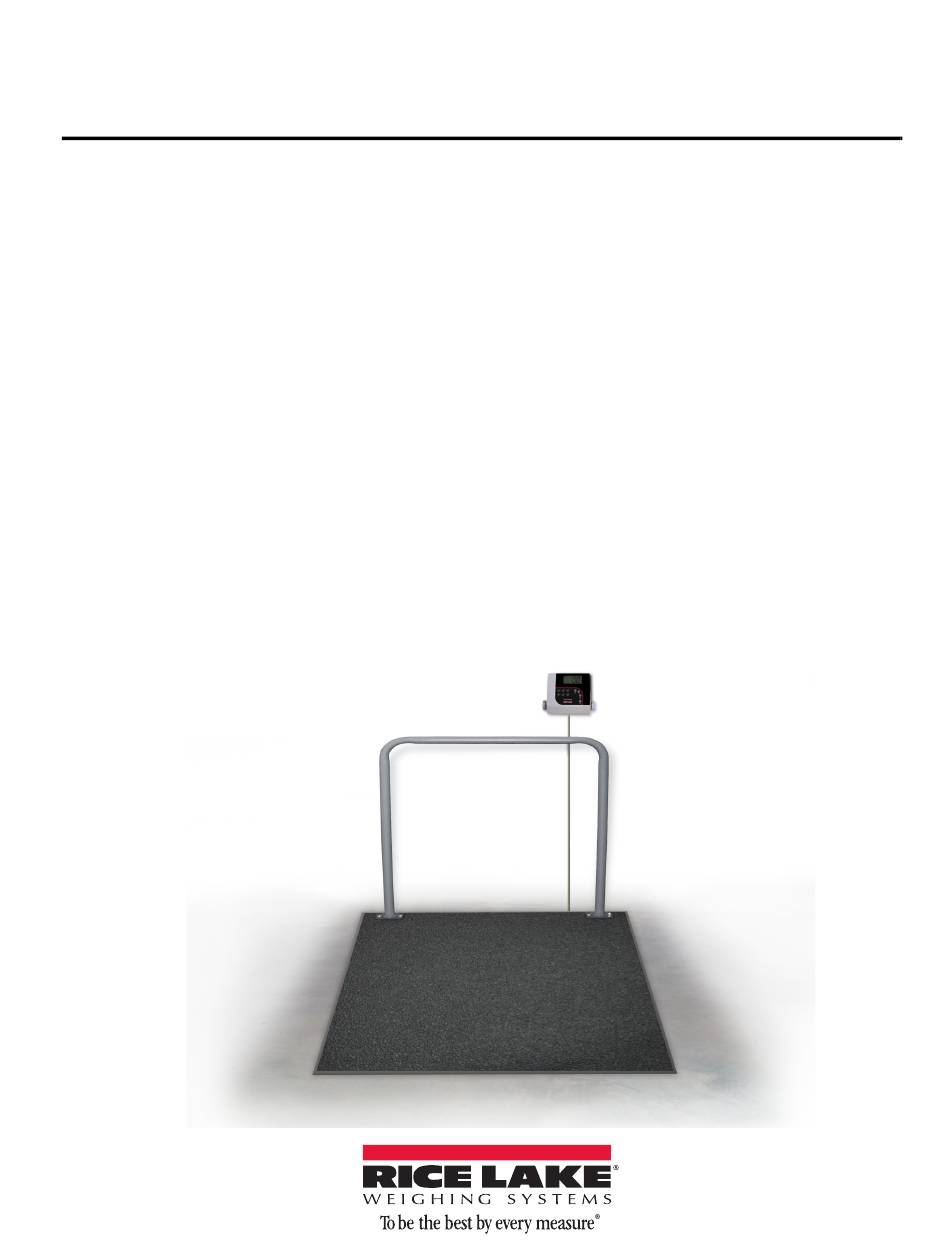

- Page 1 Summit SD-1150-WP ® Dialysis Scale Software Revision 11439 Technical Manual 156445 - Rev B...
-
Page 3: Table Of Contents
715-234-9171 and asking for the training department © 2014 Rice Lake Weighing Systems. All rights reserved. Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. Software revision 11439, September 2014 Rev. B... - Page 4 Summit SD-1150-WP Dialysis Scale Installation & Operation Manual...
-
Page 5: Introduction And System Overview
The patient simply walks, or is wheeled onto the weighing platform and is weighed. The Summit SD-1150-WP Dialysis Scale is a fully electronic, low profile floor scale that measures 36 in x 36 in (.91 m x .91 m), and has a capacity up to 1000 lb (500 kg). The SD-1150-WP uses four corner-mounted, alloy steel shear beam load cells, with the cells recessed into the frame channels for protection. -
Page 6: Safety
Do not operate or work on this equipment unless you have read and understand instructions in the manual. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals. Proper care is your responsibility. -
Page 7: Scale Installation
10-ft length of load cell cable. The Summit SD-1150-WP Dialysis Scale has one threaded eyebolt hole located in the center of the deck to allow installation of an eyebolt hook for use when lifting the scale with chains. It’s recommended to use a 1/2 in-20NF eyebolt to lift the scale. -
Page 8: Assembly
Ten feet of 4-wire cable to connect the scale to the weight indicator is supplied with each scale. The junction box is easily accessible through an access plate located on the side of the Summit SD-1150-WP. Use the following steps to wire up the junction box. -
Page 9: Pit Installation
Debris, floor sweepings, or material spills may accumulate in the pit and interfere with scale operation. You should periodically clean the pit. The Summit SD-1150-WP has a threaded hole centrally located for eyebolts so the scale can be easily lifted from the pit. - Page 10 A 1:24 slope is recommended for the pit, with full grouting under the corner pads as shown in Figure 3-5. Figure 3-5. Section Showing Installed Summit SD-1150-WP and Pit Frame SD-1150-WP Installation & Operation Manual...
-
Page 11: Adjustments And Calibration
Adjustments and Calibration The following sections describe adjustments that need to be made to the Summit SD-1150-WP Dialysis Scale. Mechanical Adjustments To accommodate minor floor unevenness, the scale feet can be used to adjust scale height up or down a fraction of an inch. -
Page 12: Calibration Procedure
With all potentiometers at full signal, place the test weight over one corner and record the indicated weight. Repeat the process for each of the other three corners. The load cell with the lowest corner reading is used as a reference point and will not be trimmed. -
Page 13: Indicator Installation
AC Power Connection The Summit SD-1150-WP Scale has an optional 120 VAC adapter or 230 VAC adapter to use when power is readily available. The optional AC power adapter plugs into the back of the indicator as shown in Figure 5-1. -
Page 14: Scale Operation
Scale Operation The Summit SD-1150-WP Dialysis Scale display has various front panel keys as shown in Figure 6-1. Figure 6-1. Front Panel Display Keys Key Descriptions Table 6-1 describes each of the key functions. Name Function On/Off Switches the scale on or off. -
Page 15: Weighing
Used to adjust height input (0.5 in/0.5 cm) while in BMI mode. Adjusts the value of the flashing digit/number. Table 6-1. Summit SD-1150-WP Dialysis Scale Key Functions The keys on the front panel display are very sensitive so only a gentle pushing motion is required to Caution obtain results. -
Page 16: Toggle Tare
Toggle Tare Use the following steps to use the Toggle Tare function. 1. When the weight is set to , press the key. TARE 2. The default tare value is displayed (default is programmed to be 33.0 lb/15.0 kg), while the zero is flashing. -
Page 17: Scale Configuration
Scale Configuration Options and parameter setup are done through the scale configuration section and is used for setting values, parameters, and options that are essential for the functioning of the scale. Access to the setup switch is located under the tilt stand cover. Use a Phillips head screwdriver to remove the four screws holding the cover in place. (shown in Figure 7-1—... -
Page 18: Programming Mode Menu
Programming Mode Menu Various parameters can be set while in programming mode. Those parameters are shown in Figure 7-3. Power Off Power On-Off Press and START Kg-Lb Key hold Press and hold the OP1=X OP2=X Software Version Kg-Lb key = DEF = Software ID to advance OP3=X... - Page 19 Parameter Description Choices Steps LOAD This is the amount of weight Value (200 Lb) The display toggles between a numeric value and LOAD. applied during calibration. If you don’t want to change this value, press the BMI key to Can also be changed in the move to the next setting.
- Page 20 Parameter Description Choices Steps ROUND Scale Resolution — The display toggles between a numeric value and ROUND. Values in kg: 1, 2, 5, 10, 20, The decimal point location is set to the DISP parameter 50, 100 display decimal point location. Values in lb: 1, 2, 5, 10, 20, If you don’t want to change this value, press the BMI key to 50, 100, 200...
- Page 21 Parameter Description Choices Steps ATOUT Algorithm maximal exponent Value (10) The display toggles between a numeric value and ATOUT. — Maximum value is 15. If you don’t want to change this value, press the BMI key to Values above 15, will not let move to the next setting.
-
Page 22: Default Menu
Default Menu The default menu is used to return the scale back to its factory settings and is shown in Figure 7-4. DONE PROG CALIB TEST Figure 7-4. Default Menu Use the following steps to return the settings back to their factory default. 1. -
Page 23: Test Menu
9. Once all the digits have been entered, press the key and is displayed. ENTER Clear 10. Make sure the scale platform is clear of weight and press the key again and ===== is displayed. ENTER 11. A request to put the chosen load on the platform is displayed by Put xxx.xx 12. -
Page 24: Rs-232 Communication
The scale comes with an RS-232 port that enables weight data to be transmitted to other equipment, such as a computer or printer. The RS-232 cable with DB-9 connector (PN 100719) is available from Rice Lake Weighing Systems. Figure 5-1 on page 9 shows where the RS-232 connection is. -
Page 25: Communication Protocols
Communication Protocols The Rice Lake Digital Wheelchair Scale has two communication protocols, escape and maintenance protocol. 9.2.1 Escape Protocol An escape protocol is where the escape (0X1B or ASCII 27) is used to indicate that there is a command following. On the PC side there must be a listener created by the vendor that will interpret this protocol. This listener must also take care of all the issues regarding data integrity, etc. - Page 26 Samples of Escape Protocol Figure 9-1 and 9-2 show what the diagrams will look like on the PC as the scale measures weight and sends over this communications line: Figure 9-1. Sample of Escape Protocol Figure 9-2. Sample of Escape Protocol When the user wants to diagnose the problems on the scale, it looks like the Figure 9-3 and 9-4.
-
Page 27: Maintenance Protocol
USB On/Off (not available on USB communication Table 9-4. Maintenance Protocol Commands USB Connection The Summit SD-1150-WP scale has the capability of connecting to a PC using a USB connection and a USB cable (not included). That connection location is shown below. USB Connection... - Page 28 2. Select and then select 4. The following screen appears while the driver No, not this time Next is installing on to your system. 5. The following screen appears when installation is 3. Select , then Install the software automatically complete.
- Page 29 7. To print a ticket using the USB driver, open the software driver (shown above) and the port assigned to that driver is shown. 8. Ensure that the USB cable is properly connected and unit is on. 9. Another terminal type program (such as Hyperterminal) needs to be opened and connected through the USB driver to the indicator to be able to see the information being sent to the PC.
-
Page 30: Troubleshooting And Testing
Table 10-1. Troubleshooting Table for the Rice Lake Scale Line 11.0 Maintenance The following section provides instructions for maintaining and cleaning the Rice Lake line of scales. Maintenance operations other than those described in this section should be performed by qualified service personnel. -
Page 31: 11.3 Load Cell Replacement
11.3 Load Cell Replacement Replacement load cells can be ordered from Rice Lake Weighing Systems. To replace a load cell, lift the scale with a chain and remove foot, then remove the defective load cell. Disconnect load cell cable from the junction box and cut cable ties. -
Page 32: Load Cell Wiring To Junction Box
11.3.1 Load Cell Wiring to Junction Box The four load cells are each wired to their respective terminals in the junction box according to the corner numbering system shown in Figure 11-4, and the coloring code in Table 11-1. Pull excess cable out of the junction box enclosure and tighten the cable grips with a wrench. -
Page 33: Summit Sd-1150-Wp Scale Specifications
Automatic power-off can be configured Environmental Operating Temperature 50 to +104°F (14 to 40°C) Storage Temperature 32 to 158°F (0 to 70°C) Humidity 85% relative humidity Certifications and Approvals RoHS Compliant SD-1150-WP Installation & Operation Manual - Summit SD-1150-WP Scale Specifications... -
Page 34: For More Information
Fax Number 715-234-6967 Email • U.S. sales and product information at prodinfo@ricelake.com • International (non-U.S.) sales and product information at intlsales@ricelake.com Mailing Address Rice Lake Weighing Systems 230 West Coleman Street Rice Lake, WI 54868 USA SD-1150-WP Installation & Operation Manual... -
Page 35: Warranty
SD-1150-WP Scale Limited Warranty Rice Lake Weighing Systems (RLWS) warrants that all RLWS equipment and systems properly installed by a Distributor or Original Equipment Manufacturer (OEM) will operate per written specifications as confirmed by the Distributor/OEM and accepted by RLWS. All systems and components are warranted against defects in materials and workmanship for two years. - Page 36 SD-1150-WP Installation & Operation Manual...
- Page 38 230 W. Coleman St. Rice Lake, WI 54868 USA U.S. 800-472-6703 Canada/Mexico 800-321-6703 International 715-234-9171 Europe +31 (0) 88 2349171 www.ricelake.com www.ricelake.mx www.ricelake.eu www.ricelake.co.in m.ricelake.com © Rice Lake Weighing Systems 09/2014 PN 156445, Rev B...
