Chapter 5. Using PanaView
5.9.4.2 RTD Input Card
1.
To assign a different Option Card to Slot 1, return to the Slot 1 Options screen and click twice on another option. If an
RTD input card was selected, the following screen appears.
2. To change the card label, enter the new name into the text box, click on BACK, and click Yes on the Verification
screen to complete the choice.
3. Click on Mode, and the following screen appears.
150

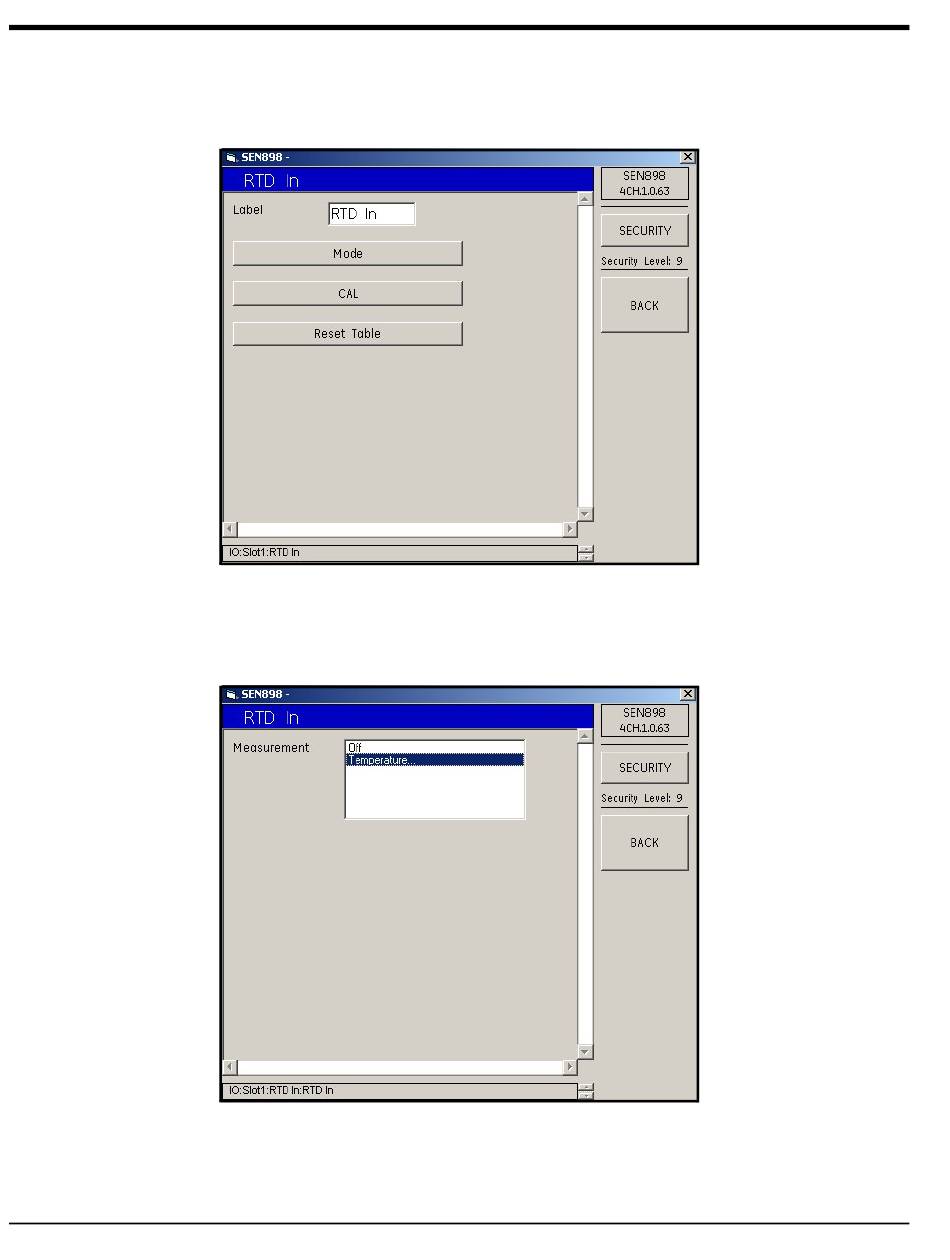

Figure 192: RTD Input Menu
Figure 193: RTD Input Measurement Options
