FortiGate-7060E chassis

The FortiGate-7060E is a 8U 19-inch rackmount 6-slot chassis with a 80Gbps fabric and 1Gbps base backplane
designed by Fortinet. The fabric backplane provides network data communication and the base backplane provides
management and synch communication among the chassis slots.

FortiGate-7060E front panel

The chassis is managed by two redundant System Management Modules (SMM). Each SMM includes an Ethernet
connection as well as two switchable console ports that provide console connections to the modules in the chassis slots.
The active SMM controls chassis cooling and power management and provides an interface for managing the modules
installed in the chassis.

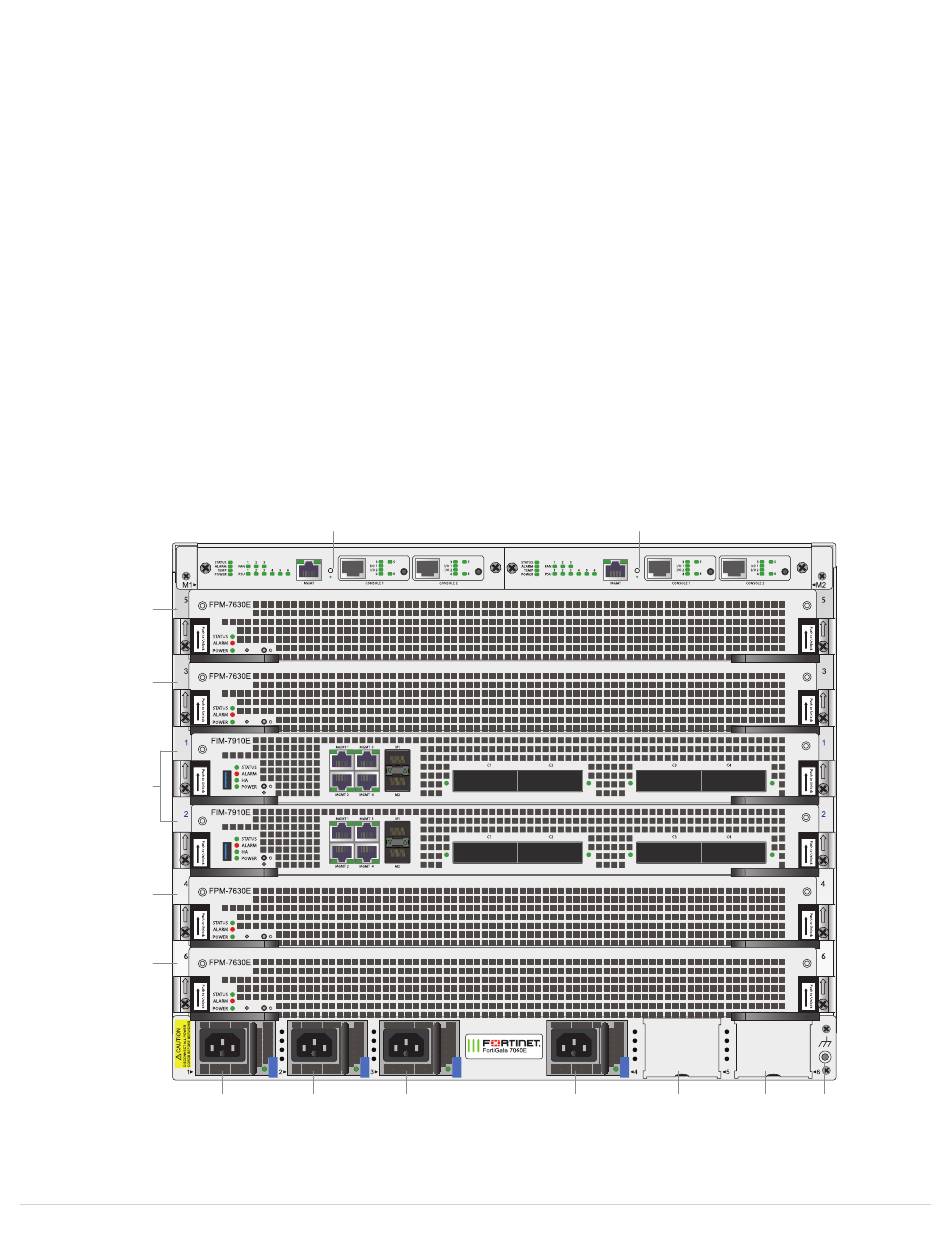

FortiGate-7060E front panel, (showing AC PSUs, example module configuration)
FPM-7630E
slot 5
FPM-7630E
slot 3
FIM-7910E
slots 1 and 2
FPM-7630E
slot 4
FPM-7630E
slot 6
Supply 1
FortiGate-7060E 6.4.2 System Guide
Fortinet Technologies Inc.
System Management Module 1
Power Power
Supply 2 Supply 3
System Management Module 2
Power Power
Supply 4
Power Power
ESD
Supply 5 Supply 6 socket
(empty) (empty)
