FortiGate-7060E chassis
80G
80G
80G
80G
80G
80G
80G
80G
40G
40G
80G
80G
80G
80G
80G
80G
80G
80G

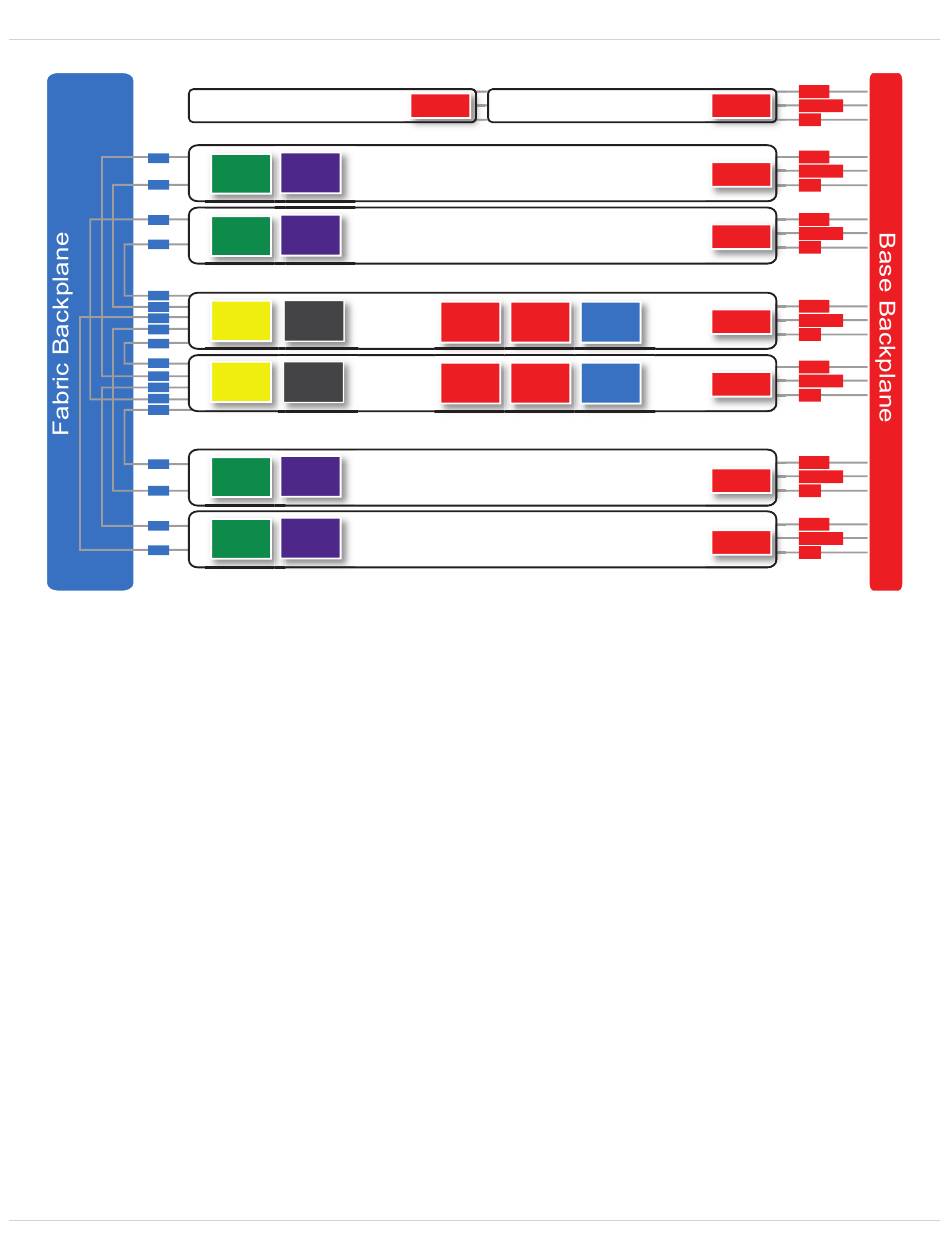

By default, MGMT2 is the active SMM and MGMT1 is inactive. The active SMM always has the Intelligent Platform
Management Bus (IPMB) address 0x20 and the inactive SMM always has the IPMB address 0x22.
The active SMM communicates with all modules in the chassis over the base backplane. Each module, including the
SMMs has a Shelf Management Controller (SMC). These SMCs support IPMB communication between the active SMM
and the FIM and FPMs for storing and sharing sensor data that the SMM uses to control chassis cooling and power
distribution. The base backplane also supports serial communications to allow console access from the SMM to all
modules, and 1Gbps Ethernet communication for management and heartbeat communication between modules.
FIM1 and FIM2 (IPMB addresses 0x82 and 0x84) are the FIMs in slots 1 and 2. The interfaces of these modules
connect the chassis to data networks and can be used for Ethernet management access to chassis components. The
FIMs include DP2 processors that distribute sessions over the Integrated Switch Fabric (ISF) to the NP6 processors in
the FPMs. Data sessions are communicated to the FPMs over the 80Gbps chassis fabric backplane.
FPM03, FPM04, FPM05, and FPM06 (IPMB addresses 0x86, 0x88, 0x8A, and 0x8C) are the FPM processor modules in
slots 3 to 6. These worker modules process sessions distributed to them by the FIMs. FPMs include NP6 processors to
offload sessions from the FPM CPU and CP9 processors that accelerate content processing.

Chassis hardware information

This section introduces FortiGate-7060E hardware components and accessories including power requirements and
FIM and FPM modules that can be installed in the chassis.
FortiGate-7060E 6.4.2 System Guide
MGMT1 (inactive by default, IPMB 0x22)
FPM
NP6 CP9
FPM
NP6 CP9
FIM
DP2 ISF
FIM
DP2 ISF
FPM
NP6 CP9
FPM
NP6 CP9
MGMT2 (active by default, IPMB 0x20)
SMC SDI
MGMT
M1 M2
1-4
Interfaces
MGMT
M1 M2
1-4 Interfaces
Fortinet Technologies Inc.
SMC SDI
FPM5 IPMB 0x8A
SMC SDI
FPM3 IPMB 0x86
SMC SDI
FIM1 IPMB 0x82 PMB 0x82
Data
SMC SDI
FIM2 IPMB 0x84 PMB 0x84
Data
SMC SDI
FPM4 IPMB 0x88 PMB 0x88
SMC SDI
FPM6 IPMB 0x8C PMB 0x8C
SMC SDI
IPMB
SERIAL
1G
IPMB
SERIAL
1G
IPMB
SERIAL
1G
IPMB
SERIAL
1G
IPMB
SERIAL
1G
IPMB
SERIAL
1G
IPMB
SERIAL
1G
