Olympus MF2 Filter Cube Assembly Manual
Step 11

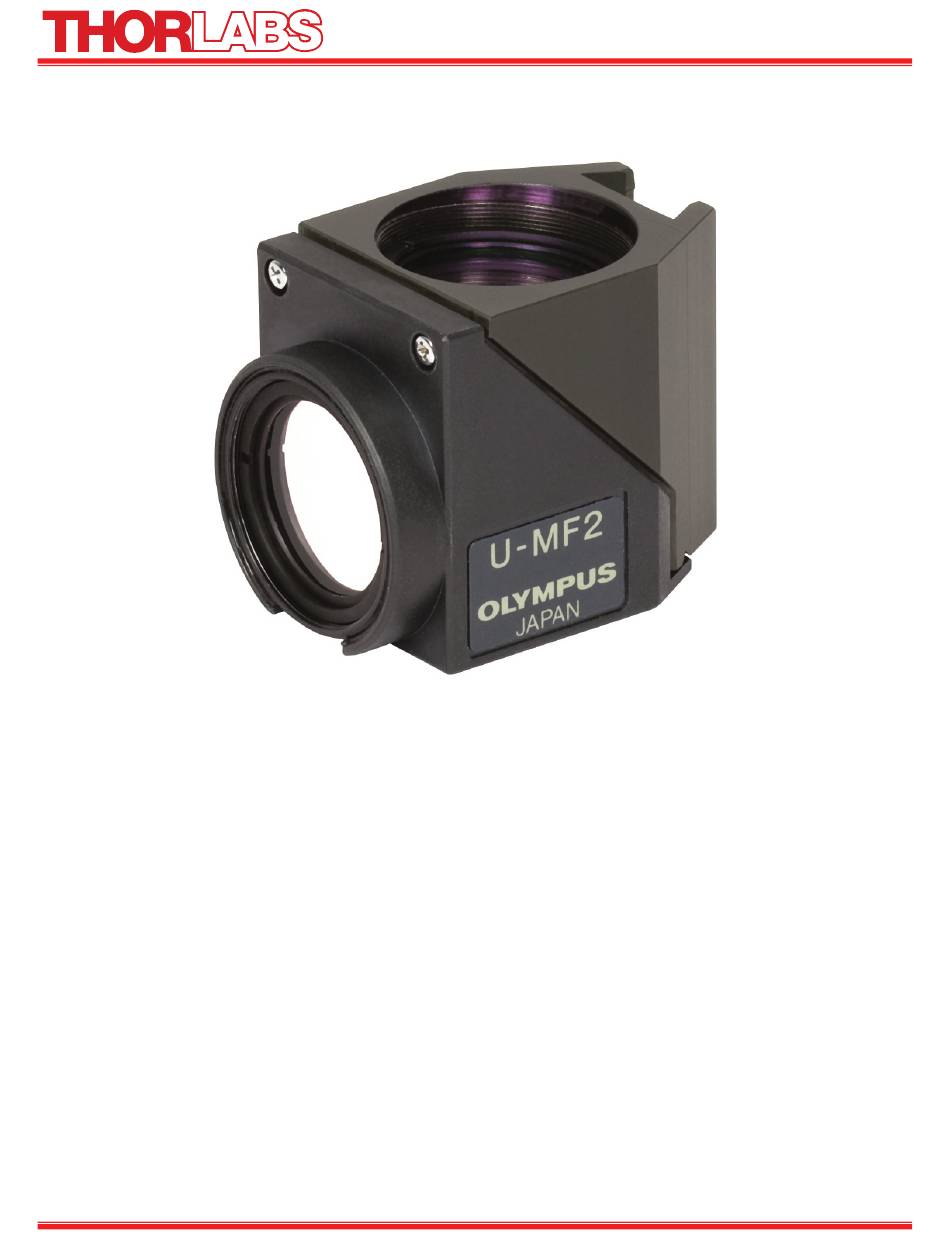

The completed MDFM-MF2 Olympus Filter Cube is shown in Figure 11.
Figure 11. The MDFM-MF2 Filter Cube with emission filter, excitation filter, and dichroic mirror
installed
21396-D02 Rev A, August 27, 2010
Page 8
www.thorlabs.com
