THORLABS MDFM-MF2 Assembly Manual page 6

Olympus MF2 Filter Cube Assembly Manual
Step 8

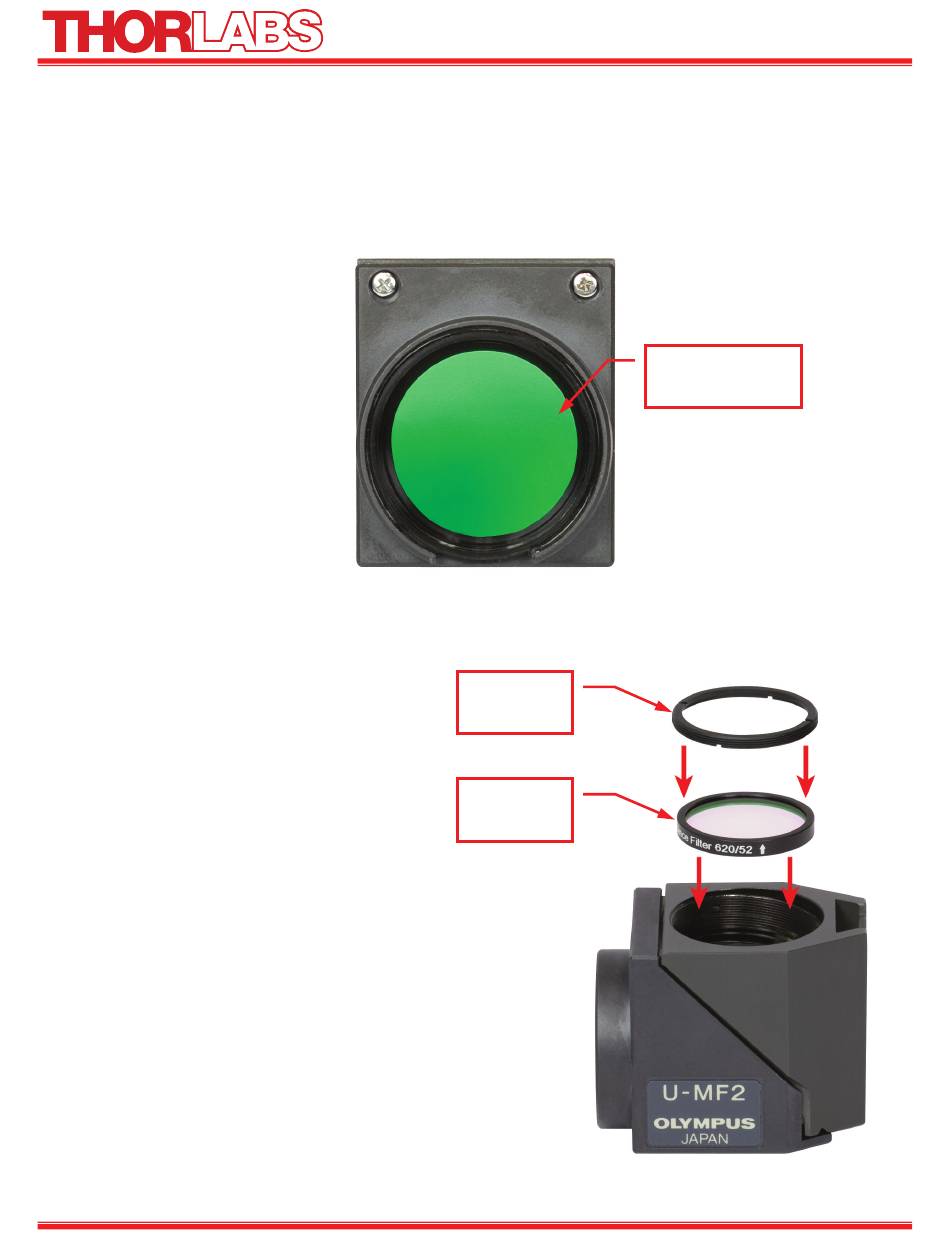

Reassemble the filter cube by placing the half of the assembly with the mounted dichroic mirror into the
empty half. Align the two halves using the two assembly screw holes. Slowly tighten the assembly
screws, alternating between them, until snug. Caution: Do not over tighten the assembly screws, as
doing so may strip the threads or screw heads. At this point the dichroic mirror should be facing the
exciter side of the filter cube (see Figure 7).
Reflective
(Coated) Side
Figure 7. Looking into the exciter side of the filter cube
Retainer
Ring
Step 9
Emission
Orient the filter cube so the emitter side
Filter
is facing up. Place the emission filter
into the mount with the filter arrow facing
up, away from the mount. Carefully
thread the retainer ring (lip side down)
onto the cube.
Figure 8. Installing the emission filter
21396-D02 Rev A, August 27, 2010 Page 6 www.thorlabs.com
