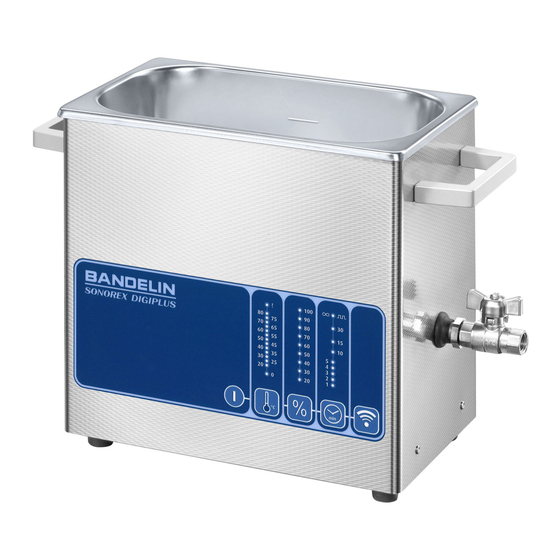

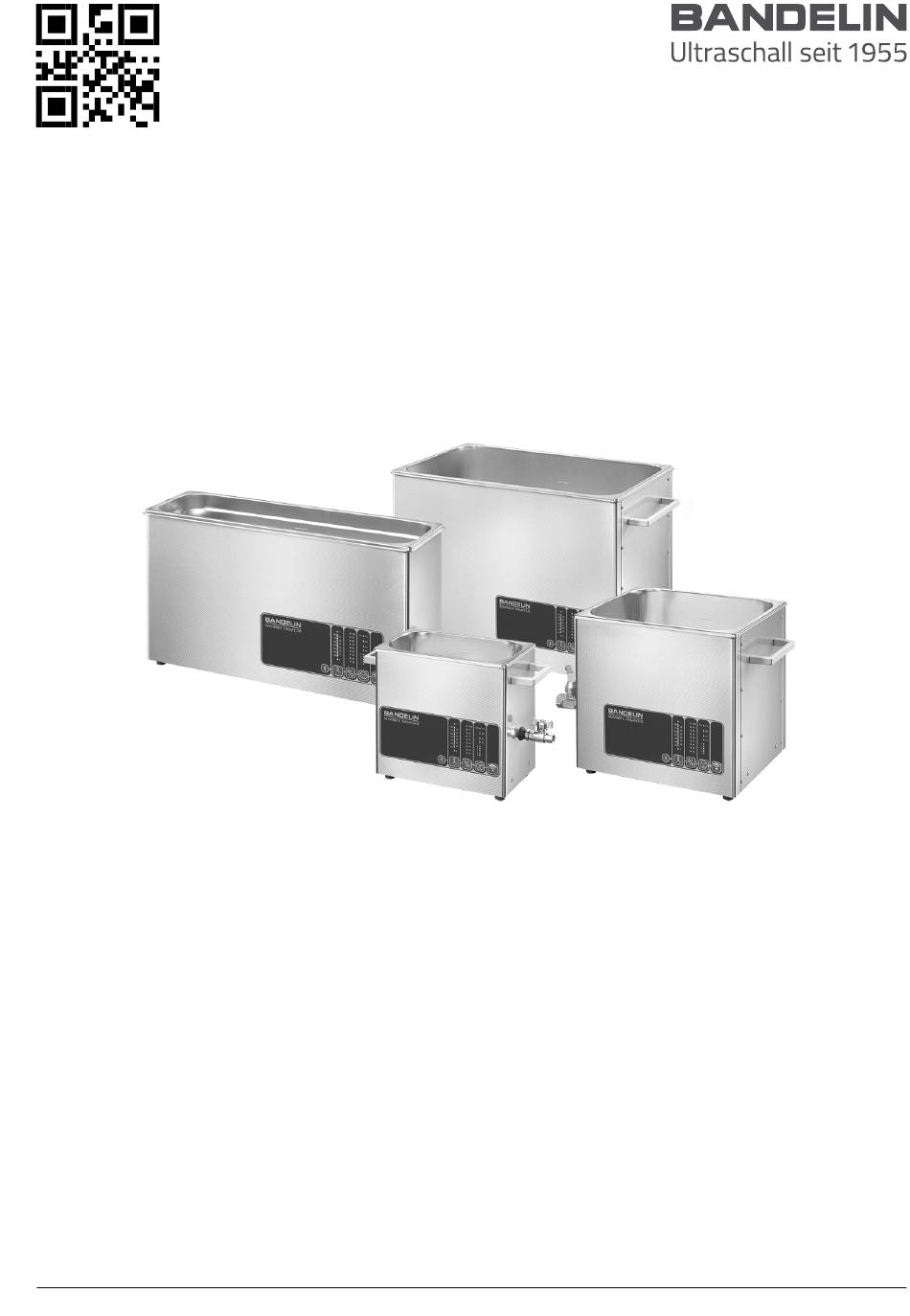

- Page 1 Operating instructions SONOREX DIGIPLUS High-performance ultrasonic baths Valid for: DL 102 H DL 156 BH DL 255 H DL 510 H DL 512 H DL 514 BH DL 1028 H 1586-007 en/2024-09...
- Page 2 © 2024 1 2 GmbH & Co. KG, Heinrichstr. 3 – 4, 12207 Berlin, Germany Phone: +49-30-768 80 - 0, Fax: +49-30-773 46 99, info@bandelin.com Certified to ISO 9001 and ISO 13485 2 / 46 1586-007 en/2024-09...
-
Page 3: Table Of Contents
Table of contents About these operating instructions ................. 5 Safety ..........................6 Using the device ......................6 Keep out of reach of children.................6 Risk of electric shock ....................7 Damage to health due to ultrasonic noise ............7 Danger due to high temperatures ................8 Danger due to ultrasound ..................8 Danger due to the agents used ................9 Disposing of sonication fluid ..................9... - Page 4 Switching sonication on and off .................20 Switching the heating on and off ..............21 Setting the power ....................23 Avoiding retardation of boiling ................24 Degassing the sonication liquid – DEGAS ............25 5.10 Introducing objects to be sonicated ..............25 5.11 Removing objects to be sonicated ..............26 5.12 Emptying the oscillating tank ................27 5.13...
-
Page 5: About These Operating Instructions
• Should these operating instructions leave any questions unanswered, please contact your specialist dealer or BANDELIN. Notes on service can be found in Chapter 6.5 Repairs. In the event that the translation cannot be understood, the German original version of BANDELIN must be followed. -
Page 6: Safety
Safety Safety 2.1 Using the device You can use the device for the following applications: • Ultrasonic cleaning of objects of various shapes, types and sizes • Homogenisation, emulsification • Rapidly degassing liquids • Sonochemical applications, e.g., for generating radicals or for improved substance transport •... -
Page 7: Risk Of Electric Shock
Safety 2.3 Risk of electric shock The device is an electrical device. Failure to follow safety rules can result in a life- threatening electric shock. • Never let the device become wet. Keep the surface and operating elements clean and dry. •... -
Page 8: Danger Due To High Temperatures
Safety 2.5 Danger due to high temperatures The device, the sonication liquid and the objects to be sonicated may become hot during operation. Touching them may cause burns. The temperature can be set at up to 80 °C. Ultrasound heats the sonication fluid even without additional heating. Very high temperatures can occur during prolonged ultrasound operation. -
Page 9: Danger Due To The Agents Used
Safety 2.7 Danger due to the agents used The agents used in the device can be toxic or corrosive. They can irritate eyes, skin and mucous membranes. The vapours and aerosols can also be dangerous. • Wear gloves and goggles when handling hazardous agents. •... -
Page 10: Erosion Of The Oscillating Tank
Safety 2.9 Erosion of the oscillating tank The surface of the oscillating tank is subject to erosion. How quickly this erosion takes place depends on how the device is used. The erosion leads to leakage points in the oscillating tray. This allows bath liquid to enter the interior of the device. -
Page 11: Interference With Wireless Communication
Safety 2.11 Interference with wireless communication The device may interfere with other wireless communication devices in close proximity, such as: • mobile phones; • Wi-Fi devices • Bluetooth devices If a wireless device malfunctions, move it further away from the device. The device complies with the requirements for Class B devices per EN 55011. -
Page 12: Construction And Function
Construction and function Construction and function 3.1 Construction Device overview 1 Handles (depending on the model) 2 Oscillating tank 3 Control panel 4 Filling level mark 5 Outlet with ball valve (depending on the model) 6 Housing 7 Device feet 12 / 46 1586-007 en/2024-09... -
Page 13: Control Panel
Construction and function 3.2 Control panel Operating elements 1 On/Off button to switch the device on/off 2 Button for adjusting the heating temperature, with temperature scale 3 Button for adjusting the power, with percentage scale 4 Button for adjusting the sonication duration, with time scale 5 Start/Stop button for the ultrasound 3.3 Function The device uses cavitation triggered by low-frequency ultrasound. -
Page 14: Preparation For Operation
Preparation for operation Preparation for operation 4.1 Installation site requirements The installation site of the device must meet the following conditions: • The installation surface must be horizontal, firm and dry. • The load-bearing capacity must be sufficient for the device together with the sonication liquid. -
Page 15: Rinsing The Oscillating Tank
Preparation for operation Result » When the ultrasound is switched on, you will clearly hear a noise. If you do not hear a noise, contact servicing. A foil test should be performed before the first application. This serves to document the effect of the ultrasound. See chapter 6.4 Performing a foil test. -
Page 16: Operation
The ultrasonic agent used must be cavitation conducive, biodegradable, easy to dispose of, gentle on materials and long-lasting. BANDELIN recommends ultrasonic agents from the TICKOPUR, TICKOMED and STAMMOPUR product series from DR. H. STAMM GmbH. -
Page 17: Sonication Time
Operation Observe the instructions from the manufacturer of the ultrasonic agent regarding dosing. The necessary amount of ultrasonic agent and water can be found in the dosing table. See chapter 9 Dosing table. You can calculate the quantities yourself analogously to the following example: 10 l ready-to-use solution, 2.5%: Agent: 10 l ×... -
Page 18: Filling With Sonication Fluid
Operation 5.4 Filling with sonication fluid NOTICE Risk of damage – Do not fill the oscillating tank with hot water. – Maximum filling temperature: 50 °C. NOTICE Damage due to condensate in the device At high humidity, condensation forms inside the device when cold water is poured in. - Page 19 Operation Filling the oscillating tank 1 On/Off button to switch the device on/off 2 Filling level mark 3 Outlet with ball valve (depending on the model) Requirements • In the event of devices with an outlet, the ball valve must be closed. •...
-
Page 20: Switching Sonication On And Off
Operation 5.5 Switching sonication on and off Requirements • The oscillating tank is filled. • The mains plug is plugged into an earthed wall socket. Procedure 1. If present, place the lid on the device. 2. Press the On/Off button to turn on the device. 3. -
Page 21: Switching The Heating On And Off
Operation 5.6 Switching the heating on and off WARNING Risk of scalding During heating, steam bubbles can rise explosively under certain conditions (retardation of boiling). - Occasionally stir the sonication liquid during heating, or switch on the ultrasound. Warm sonication liquid intensifies the effect of the ultrasound. Experience has shown that the best result is achieved at a temperature of 50 to 60 °C. - Page 22 Operation Information - The heater is equipped with overtemperature protection. If the heating function is not working, disconnect the device from the mains and allow it to cool down to below 50 °C. Only then can the device be put back into operation. - The heating operates independently of the ultrasound.
-
Page 23: Setting The Power
Operation 5.7 Setting the power The power can be adjusted according to the desired intensity and sonication task. Requirements • The oscillating tank is filled. • The mains plug is plugged into an earthed wall socket. • The appliance is switched on. The green "O" LED on the temperature scale will light up. -
Page 24: Avoiding Retardation Of Boiling
Operation 5.8 Avoiding retardation of boiling To avoid retardation of boiling, the ultrasound is automatically switched on once a minute for 3 seconds, to mix the liquid, when the temperature is above 60 °C. This function cannot be switched off. You can set this function to always be active when the heating is switched on, even at temperatures below 60 °C. -
Page 25: Degassing The Sonication Liquid - Degas
Operation 5.9 Degassing the sonication liquid – DEGAS Sonication liquid that has been freshly poured in or that has remained in the oscillating tank for a long time must be degassed before use. Degassing the sonication liquid increases the effect of the ultrasound. The DEGAS function allows rapid degassing of the sonication liquid. -
Page 26: Removing Objects To Be Sonicated
Operation • Spread out the items. Do not stack them. Sensitive items must not touch other items. • The ultrasound must be switched off while inserting objects. • Check the filling level. Objects to be sonicated must be completely covered with liquid. -
Page 27: Emptying The Oscillating Tank
Operation 5.12 Emptying the oscillating tank WARNING Danger of electric shock - Disconnect the mains plug before lifting the device. - Do not place the device in a sink to empty it. - Make sure that no liquid can enter the housing. CAUTION Hot sonication liquid and oscillating tank There is a risk of scalding when lifting the device to empty it. -
Page 28: Enabling And Disabling Continuous Operation
Operation 5.13 Enabling and disabling continuous operation You can lock this function to avoid continuous operation being accidentally switched on. Requirement • The mains plug is unplugged. Procedure Press and hold the button to adjust the sonication time. At the same time, plug the mains plug into the mains socket. -
Page 29: Troubleshooting
Operation 5.14 Troubleshooting Error Possible causes Troubleshooting Too little • Sonication liquid • Degas the sonication fluid. See chapter ultrasound contains gases. 5.9 Degassing the sonication liquid – effect, loud • There are too many DEGAS. noises objects to be sonicated •... -
Page 30: Maintenance
Maintenance Maintenance 6.1 Servicing The device is maintenance-free. Function tests can be performed for regular checks (see section 6.3 Tests.) 6.2 Cleaning and care of the device Cleaning the housing • Wipe the housing with a damp cloth. Wipe it dry with a soft cloth. •... -
Page 31: Tests
Maintenance 6.3 Tests NOTICE Damage to the device – Only carry out checks on the device when it is filled. If one of the tests does not lead to the desired result, contact the servicing team. See chapter 6.5 Repairs. Check the pilot lamps Requirement •... -
Page 32: Performing A Foil Test
Maintenance Checking ultrasonic effect Check the effect of the ultrasound while putting the device into service and at regular intervals. Testing is recommended every 3 months. See chapter 6.4 Performing a foil test. 6.4 Performing a foil test A foil test should be carried out before the first use and then at regular intervals, e.g., every 3 months. - Page 33 IEC TS 63001:2019. You can download a documentation template here for documenting the test results: https:/ /bandelin.com/folientest/ You will also find an application video there. The foils can also be archived in a suitable manner (as scans, photos, etc.).
- Page 34 9. Rinse the oscillating tank thoroughly to remove loose foil particles. Suitable foil test frames can be ordered from BANDELIN electronic GmbH & Co. KG. The foil test frames are designed for a wide range of tank dimensions. Aluminium foil is also required for the test procedure;...
-
Page 35: Repairs
Fill out the form and attach it so it is clearly visible on the outside of the packing. Acceptance will be refused without a completed form. Send the unit to the following address: BANDELIN electronic GmbH & Co. KG Heinrichstr. 3–4 12207 Berlin... -
Page 36: Disposal
Disposal Disposal WARNING Health hazard due to contaminated device - Decontaminate the device before disposal if it has come into contact with hazardous substances. - Also decontaminate accessories before disposal. Dispose of the device properly as electrical waste if it can no longer be used. -
Page 37: Information About The Device
Information about the device Information about the device 8.1 Technical specifications Electrical specifications Mains supply 230 V~ (± 10 %) 50/60 Hz Mains supply (optional) 115 V~ (± 10%) 50/60 Hz Protection class Degree of protection IP 33 Ultrasonic frequency 35 kHz Ultrasonic peak Current con... -
Page 38: Dimensions And Weight
Information about the device Dimensions and weight Internal dimen Connection for sions of the oscil Operating Type ball valve Weight lating tank volume (outlet) (L × W × H) [mm] [kg] DL 102 H 240 × 140 × 100 G ¼ DL 156 BH 500 ×... -
Page 39: Dosing Table
Dosing table Dosing table Operat Dosage Type ing vol Water + agent 1.9 l 1.9 l 1.9 l 1.9 l 1.8 l DL 102 H + 20 ml + 40 ml + 60 ml + 100 ml + 200 ml 5.9 l 5.8 l 5.8 l... -
Page 40: Approved Accessories
Approved accessories Approved accessories Insert basket K..., made from stainless steel, sieve cloth. Gentle on objects to be sonicated and avoids damage to the tank bottom. Optimal ultrasound transmission. Utensil holder GH..., made from stainless steel, mesh size 12 x 12 mm. For larger individual parts. - Page 41 Approved accessories Insert Utensil Insert Basket Type Insert tub basket holder basket holder DL 102 H K 3 C GH 1 D 100 – – KW 3 DL 156 BH K 6 BL – D 156 – – – DL 255 H K 5 C –...
- Page 42 Approved accessories Insert baskets KD…, PD…, Sieve cloth. Suitable for inset beakers, for cleaning small parts. KD 0: stainless steel, Ø inside 75 mm; PD 04: plastic, Ø inside 60 mm. Inset beakers SD ... (glass), EB... (stainless steel), KB…, PD… (plastic). For indirect cleaning of small parts, suitable for positioning lids and beaker holders Ø...
- Page 43 Approved accessories Position Impres In jection Inset ing lid/ Inset Type Inset beaker sion tray nozzle basket beaker basket holder holder holder KD 0, SD 06, SD 09, DL 102 H DE 100 LT 102 PK 2 C ED 9 PD 04 PD 06, EB 05 KD 0,...
- Page 44 Approved accessories Spring clamps EK..., made of stainless steel, for laboratory flasks. Prevents floating. For screwing into hanging baskets and utensil holders. EK 10 – 10 ml, max. Ø 31 mm EK 25 – 25 ml, max. Ø 42 mm EK 50 –...
- Page 45 Approved accessories Spring clamps for Handle Test tube Silicone Fixing Type laboratory flasks adjuster holder knob mat clamps EK 10, EK 25, EK 50, DL 102 H GV 3 RG 2 SM 3 – EK 100, EK 250 EK 10, EK 25, EK 50, DL 156 BH GV 3 –...
- Page 46 1 2 GmbH & Co. KG Heinrichstrasse 3 – 4 12207 Berlin Germany Phone: +49-30-768 80 - 0 Fax: +49-30-773 46 99 info@bandelin.com www.bandelin.com...
