Combi lock 3

Check points
• Check for corrosion (in case of corrosion, replace
safety locks)
• Check for dust inside rails where safety locks are
installed . (if so, clean it)
• Check that the safety locks do not show signs of being
bent or damaged . (if so, replace the safety locks)
2
1
1
• Check that the safety locks are installed with safety
screws . (if not, do it)
• Check that the safety locks are installed flush to rail
ends . (if not, change it)
• Check that the latch (tongue) is in the right position and
moves freely in the system
• Perform a pull test

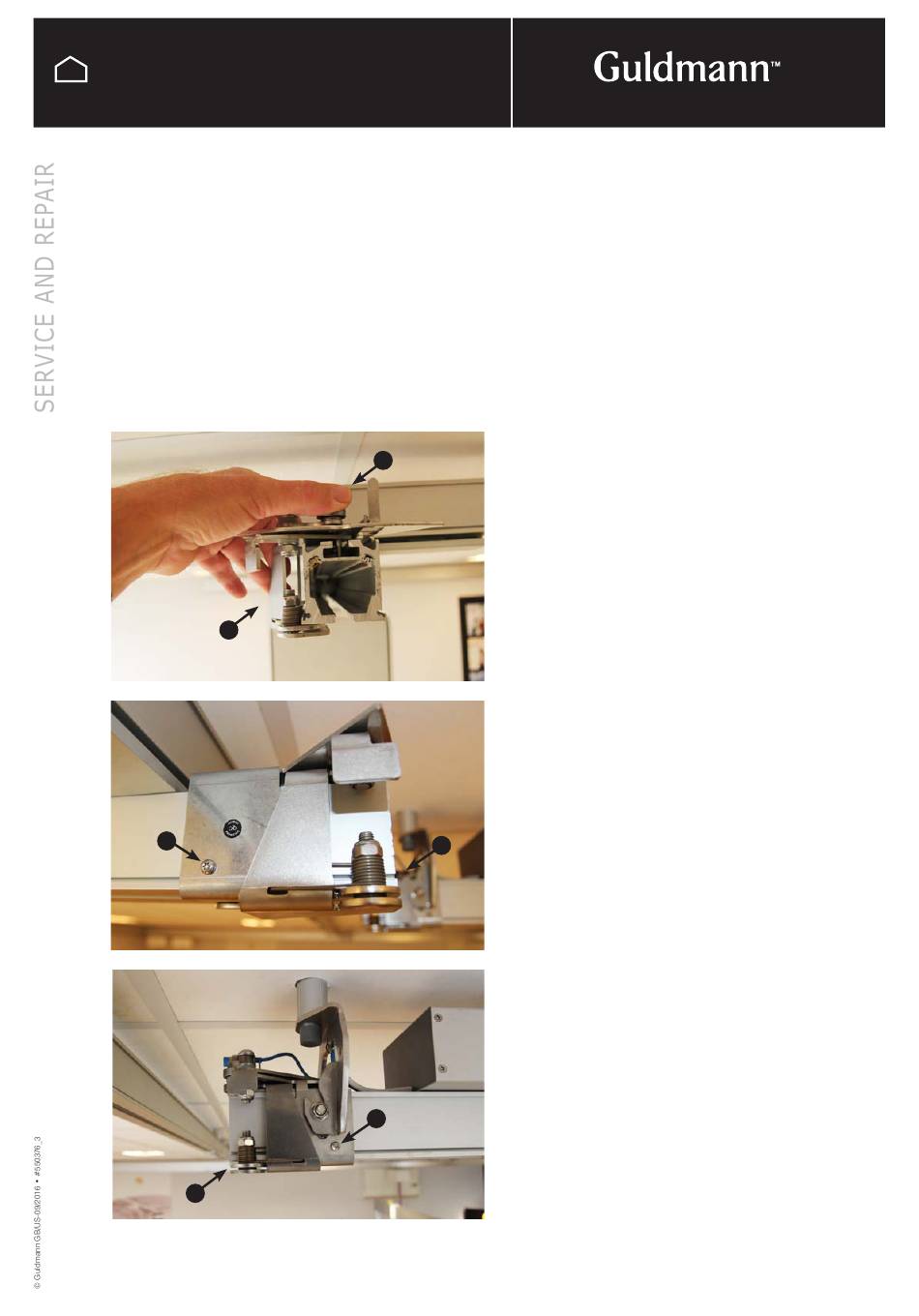

Push the bearing (1) and, at the same time, open the gate
(2) at the traverse rail's safety lock .
1
Be sure it moves easily .
Release the bearing and the gate – both shall return easily
back to closed position, otherwise replace the safety lock .
If the safety gate can stay open by itself the complete safety
lock must be replaced .
Check that the safety lock does not show signs of being
bent or damaged and that it is free of corrosion .
Check that the safety lock at the traverse rail is installed with
safety screws (1) .
Check that the gate is flush with rail end (2) .
2
Check that the safety lock at the fixed rail is flush with rail
end (1) .
Check safety screws (2) .
2
