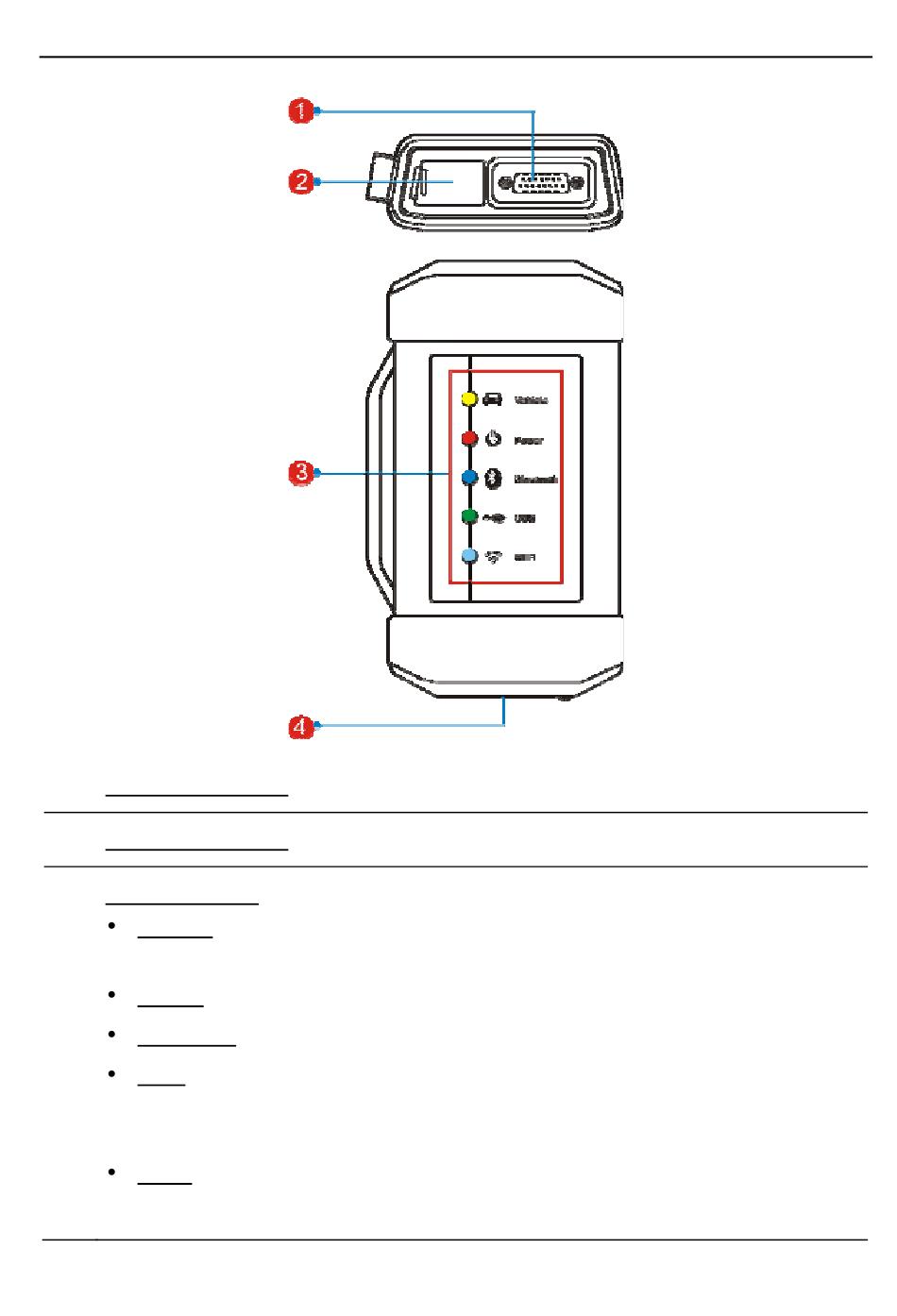

Diagnostic socket: For connecting the diagnostic cable.
2
DC-IN power jack: For connecting the power adaptor.
LED Indicators: It is defined as follows:
Vehicle: While communicating with the vehicle, the indicator lights up
and flashes. Otherwise, it will not illuminate.
Power: It illuminates solid red when the module is powered on.
Bluetooth: Blue indicates the module is working in Bluetooth mode.
3
USB: It lights up when the module is connected to the diagnostic tool
via USB cable (Currently disabled and only reserved for subsequent
function extension).
Wi-Fi: It lights up when the module works as a Wi-Fi hotspot or
wireless adaptor.
X-431 PRO3 V4.0 User Manual
