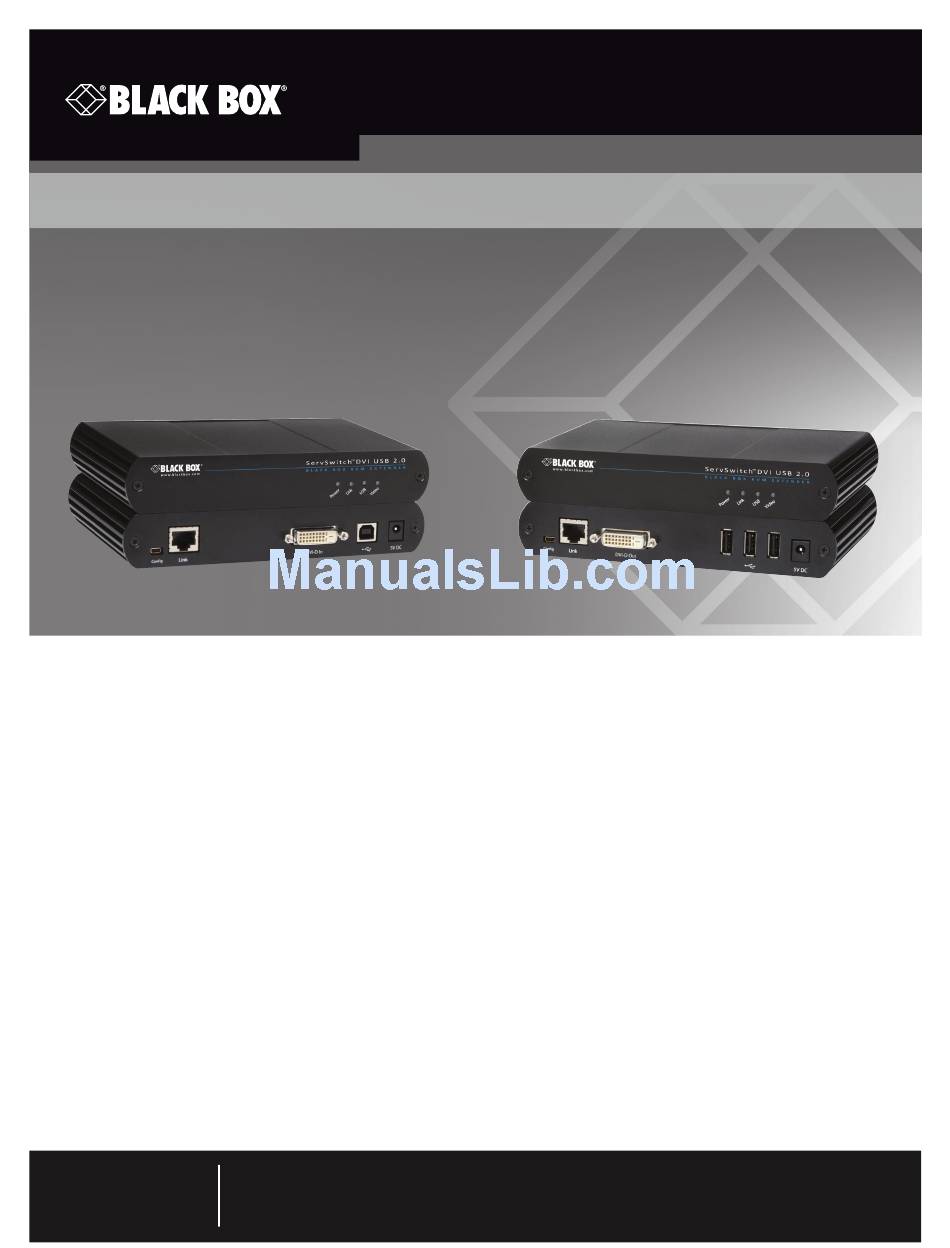

DVI-D and USB 2.0 KVM Extender
Quick Start Guide
Extend video and USB up to 330 feet (100 m) over CAT5e or better cable.
What's Included
Your package should contain the following items. If anything is
missing or damaged, contact Black Box Technical Support at
877-877-2269 or info@blackbox.com.
• (1) local extender unit
• (1) remote extender unit
• (2) 5-VDC power adapters
• (1) 6-foot (1.8-m) USB cable
• (1) 5-foot (1.5-m) DVI cable
• This printed quick start guide
NOTE: You can also access the complete user guide
at www.blackbox.com.

Additional Items You Will Need

To complete the installation, you will also need the following
items that are not included with the product:
• A computer with a DVI-D/DVI-I output
• USB 1.1 or 2.0 compatible computer (host computer) with a
USB compliant operating system
Contact
Information
Order toll-free in the U.S. or for FREE 24/7 technical support: Call 877-877-BBOX
(outside U.S. call 724-746-5500)
www.blackbox.com • info@blackbox.com
• USB 1.1 or 2.0 compatible device(s)
• CAT5e UTP cable with two RJ-45 connectors (if using surface
cabling) OR CAT5e cabling with two information outlets and
two CAT5e patch cords with RJ-45 connectors (if using
premise cabling)

Compatibility and Recommended Setup

This extender is compatible with many graphics cards,
operating systems, and monitors supporting up to a 1920 x
1200 resolution.
The extender complies with USB 1.1 and USB 2.0 specifications.
It supports USB 1.1 and low-bandwidth USB 2.0 devices
@40 Mbps, including keyboards, mice, flash drives,
microphones, speakers, printers, and scanners. Contact Black
Box Technical Support at 877-877-2269 or info@blackbox.com
to determine if your USB 2.0 device(s) can be supported.

Compatible Host Operating Systems:

• Windows
®
• OS X
• Linux
®
®
For installation instructions, turn this page over...
February 2010
ACU1500A-R3
MT1000A-85-R4
