- Page 1 USER MANUAL ACU1700A EXTENDER OVER HDBT 24/7 TECHNICAL SUPPORT AT 1.877.877.2269 OR VISIT BLACKBOX.COM USB HOST HDBT OUT AUDIO AUDIO DC 12V TXRX G HDMI IN HDBT OUT AUDIO AUDIO DC 12V TXRX G HDMI IN USB DEVICES...
-
Page 2: Table Of Contents
2.4.1 Transmitter .......................................... 8 2.4.2 Receiver..........................................10 3. INITIAL INSTALLATION ................................12 4. TECHNICAL SUPPORT ................................13 4.1 Contacting Black Box ..................................... 13 4.2 Shipping and Packaging ..................................13 APPENDIX A. REGULATORY INFORMATION ..........................14 A.1 FCC Statement .......................................14 A.2 NOM Statement ..................................... 15 APPENDIX B. -
Page 3: Safety Information
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 SAFETY INFORMATION TECHNICAL SUPPORT 1.877.877.2269 SAFETY PRECAUTIONS 1. Do not expose this extender to rain, moisture, dripping or splashing and do not place any objects (such as vases) filled with liquids on the extender. 2. -
Page 4: Specifications
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 1: SPECIFICATIONS TECHNICAL SUPPORT 1.877.877.2269 1.1 TRANSMITTER Video Input (1) HDMI Input Signal Type HDMI 1.4 with 4K Input Resolution Support 4096 x 2160 @ 24/25/30/50/60 Hz, 3840 x 2160 @ 24/25/30/50/60 Hz, 1080P, 1080I, 720P, 576p, 576i, 480p Input Video Level 0.5-1.0 V p-p... -
Page 5: Receiver
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 1: SPECIFICATIONS TECHNICAL SUPPORT 1.877.877.2269 1.2 RECEIVER Video Input (1) HDBT Input Signal Type HDBT 2.0 Input Resolution Support 4096 x 2160 @ 24/25/30/50/60 Hz, 3840 x 2160 @ 24/25/30/50/60 Hz, 1080P, 1080I, 720P, 576p, 576i, 480p Input Video Level 0.5-1.0 V p-p... -
Page 6: General (Both Transmitter And Receiver)
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 1: SPECIFICATIONS TECHNICAL SUPPORT 1.877.877.2269 1.3 GENERAL (BOTH TRANSMITTER AND RECEIVER) Approvals Compliance CE, FCC Environmental Operating Temperature 32 to 113° F (0 to 45° C) Storage Temperature -4 to +158° F (-20 to +70° C) Humidity 10 to 90% noncondensing ESD Protection... -
Page 7: Overview

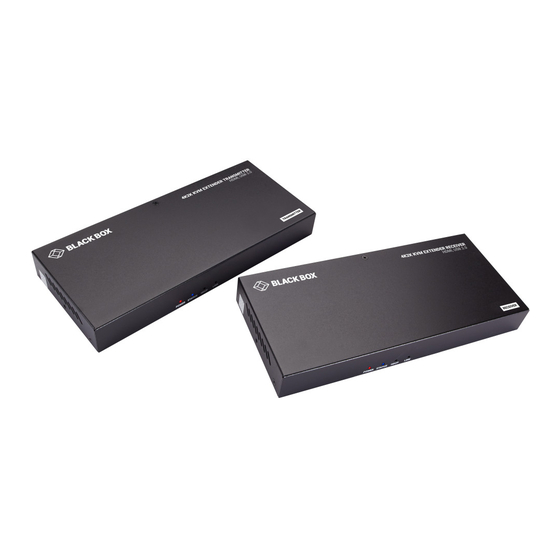

1.877.877.2269 2.1 INTRODUCTION The ACU1700A is a 4K HDBaseT 2.0 Extender that distributes uncompressed 4K @ 60 Hz UHD video, analog stereo, power, RS-232 and USB 2.0 up to 328 ft. (100 m) over a single CAT6 or above cable. -
Page 8: Hardware Description
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: OVERVIEW TECHNICAL SUPPORT 1.877.877.2269 2.4 HARDWARE DESCRIPTION 2.4.1 TRANSMITTER Figures 2-1 and 2-2 show the front, top and back panels of the transmitter. Table 2-1 describes its components. POWER STATUS HDCP LINK FIGURE 2-1. - Page 9 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: OVERVIEW TECHNICAL SUPPORT 1.877.877.2269 TABLE 2-1. TRANSMITTER COMPONENTS NUMBER IN FIGURE 2-1 OR 2-2 COMPONENT DESCRIPTION ON: The transmitter is powered on. Power LED OFF: The transmitter is powered off. Flashing Slowly: The transmitter is working properly.
-
Page 10: Receiver
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: OVERVIEW TECHNICAL SUPPORT 1.877.877.2269 2.4.2 RECEIVER Figures 2-3 and 2-4 show the front, top and back panels of the receiver. Table 2-2 describes its components. POWER STATUS HDCP LINK FIGURE 2-3. - Page 11 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: OVERVIEW TECHNICAL SUPPORT 1.877.877.2269 TABLE 2-2. RECEIVER COMPONENTS NUMBER IN FIGURE 2-3 OR 2-4 COMPONENT DESCRIPTION ON: The transmitter is powered on. Power LED OFF: The transmitter is powered off. Flashing Slowly: The transmitter is working properly.
-
Page 12: Initial Installation
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: INITIAL INSTALLATION TECHNICAL SUPPORT 1.877.877.2269 1. Using quality HDMI cables, connect an HDMI source (such as Blu-ray, games console, satellite/cable TV, media server, etc.) to the HDMI IN connector of the Transmitter. 2. -
Page 13: Technical Support
If you determine that your extender is malfunctioning, do not attempt to alter or repair the unit. It contains no user-serviceable parts. Contact Black Box Technical Support at 877-877-2269 or info@blackbox.com. Before you do, make a record of the history of the problem. We will be able to provide more efficient and accurate assistance if you have a complete description, including: Š... -
Page 14: Appendix A. Regulatory Information
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 APPENDIX A: REGULATORY INFORMATION TECHNICAL SUPPORT 1.877.877.2269 A.1 FCC STATEMENT This equipment has been found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 15: Nom Statement
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 APPENDIX A: REGULATORY INFORMATION TECHNICAL SUPPORT 1.877.877.2269 A.2 NOM STATEMENT 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura. 3. -
Page 16: Appendix B. Disclaimer/Trademarks
B.1 DISCLAIMER Black Box Corporation shall not be liable for damages of any kind, including, but not limited to, punitive, consequential or cost of cover damages, resulting from any errors in the product information or specifications set forth in this document and Black Box Corporation may revise this document at any time without notice. - Page 17 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 NOTES TECHNICAL SUPPORT 1.877.877.2269 __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ _________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________\ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ _________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ 1.877.877.2269 BLACKBOX.COM...
