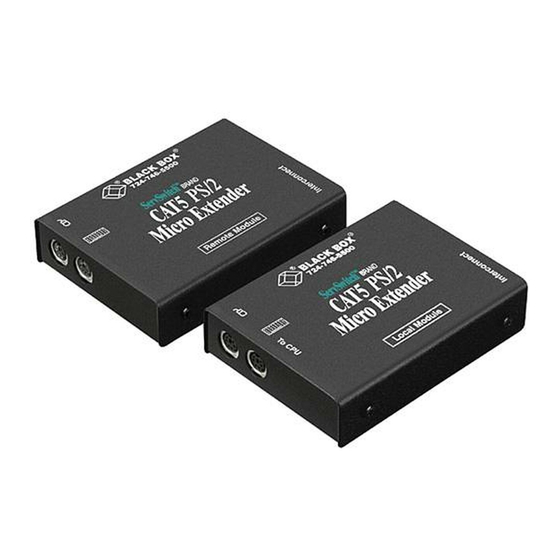

Cat5 ps/2 micro extender
Hide thumbs Also See for ServSwitch ACU1007A:
Table of Contents

Advertisement

Quick Links

Download this manual
APRIL 2002
e
o d u l
d u l e
l M o
o t e M
L o c a
R e m
ACU1007A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ServSwitch ACU1007A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Box ServSwitch ACU1007A

Summary of Contents for Black Box ServSwitch ACU1007A

  • Page 1 APRIL 2002 o d u l d u l e l M o o t e M L o c a R e m ACU1007A...
  • Page 2 ServSwitch system that’s just right for you. The ServSwitch ™ family from Black Box—the one-stop answer for all your KVM- switching needs! This manual will tell you all about your new ServSwitch™ Brand CAT5 PS/2 Micro Extender, including how to install, operate, and troubleshoot it. For an introduction to the Extender, see Chapter 2.
  • Page 3 ServSwitch, ServSwitch Affinity, ServSwitch Duo, ServSwitch Multi, ServSwitch Ultra, ServSwitch Wizard, ServSwitch Wizard Pro, ServManager, ServSelect, and ServShare are trademarks, of Black Box Corporation. Apple and Macintosh are registered trademarks of Apple Computer, Inc. AT&T is a registered trademark of AT&T.
  • Page 4 FCC/IC STATEMENTS FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY CANADA RADIO-FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio-frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart J of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is...
  • Page 5 SERVSWITCH™ BRAND PS/2 MICRO EXTENDER EUROPEAN UNION DECLARATION OF CONFORMITY WARNING! This is a class A product. In a domestic environment, this product might cause radio interference, in which case the user might be required to take adequate remedial measures. This product complies with the following harmonized standards: •...
  • Page 6 NOM STATEMENT NORMAS OFICIALES MEXICANAS (NOM) ELECTRICAL SAFETY STATEMENT INSTRUCCIONES DE SEGURIDAD 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.
  • Page 7 SERVSWITCH™ BRAND PS/2 MICRO EXTENDER 12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada. 13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean pisados ni pellizcados por objetos colocados sobre o contra ellos, poniendo particular atención a los contactos y receptáculos donde salen del aparato.

  • Page 8: Table Of Contents

    TABLE OF CONTENTS Contents Chapter Page 1. Quick Start Guide ..................9 2. Specifications ................... 10 3. Introduction ..................... 12 3.1 Compatibility ..................13 3.2 Key Features ..................14 4. Checklist of System Components ............15 4.1 The Complete Package ..............15 4.2 The Cables You’ll Need ..............
  • Page 9 7.1.1 Keyboard .................. 28 7.1.2 Mouse ..................29 7.1.3 Both Keyboard and Mouse ............. 30 7.2 General Questions About the Extender .......... 31 7.3 Calling Black Box ................32 7.4 Shipping and Packaging ..............32 Appendix: Cable Pinning/Pairing ..............33...

  • Page 10: Quick Start Guide

    CHAPTER 1: Quick Start Guide 1. Quick Start Guide To install your ServSwitch™ Brand CAT5 PS/2 Micro Extender system, refer to the illustration below. A basic installation with a CPU, a keyboard, and a mouse is shown. 1. Use the included PS/2 extension cables to attach the CPU to the Local Unit. 2.

  • Page 11: Specifications

    SERVSWITCH™ BRAND PS/2 MICRO EXTENDER 2. Specifications Cable Required: Between Local and Remote Units: Category 5 solid unshielded or shielded twisted pair (UTP or STP), wired to the EIA/TIA-568A or (preferred) -568B standard, terminated with RJ-45 male connectors; for pinning/pairing, see the Appendix Compliance: CE Class B;...
  • Page 12 CHAPTER 2: Specifications Humidity Tolerance: 5 to 90% noncondensing Enclosure: Steel Local Unit: Power: 5 VDC at up to 120 mA from CPU’s keyboard port; Remote Unit: From desktop power supply (certified to meet the relevant international safety standards): Input: 100 to 240 VAC at 50 to 60 Hz from utility- power (mains) outlet, through detachable power cord and IEC 320 male inlet, to external transformer;...

  • Page 13: Introduction

    SERVSWITCH™ BRAND PS/2 MICRO EXTENDER 3. Introduction By using the Local and Remote Units that together make up the ServSwitch™ Brand CAT5 PS/2 Micro Extender, you can place your keyboard and mouse as far as 300 meters (1000 ft.) from a PC’s CPU. The Local and Remote Units are interconnected with a single industry-standard Category 5 UTP or STP 4-pair cable.

  • Page 14: Compatibility

    Some older PC/XT™ or PC/AT type autosensing keyboards might not be compatible with the Extender. If the keyboard you want to use is some other type or has some other type of connector, call Black Box for technical support. For information about keyboard typematic support, see Section 6.2.

  • Page 15: Key Features

    SERVSWITCH™ BRAND PS/2 MICRO EXTENDER 3.2 Key Features The ServSwitch Brand CAT5 PS/2 Micro Extender has a number of useful features which contribute to the transparent remote operation of your PC. Some of the more important ones are: • Distance up to 300 m (1000 ft.) Operate your PC from the next room or all the way down the hall.

  • Page 16: Checklist Of System Components

    4. Checklist of System Components 4.1 The Complete Package These items should be included with your ServSwitch™ Brand CAT5 PS/2 Micro Extender package (please contact Black Box right away if any are missing or damaged): • (1) Extender Local Unit.

  • Page 17: To Connect A Cpu To The Local Unit

    SERVSWITCH™ BRAND PS/2 MICRO EXTENDER 4.2.1 T ONNECT A TO THE OCAL You’ll use the PS/2 extension cables included with the ServSwitch™ Brand CAT5 PS/2 Micro Extender to make this connection. 4.2.2 T KVM S ONNECT A WITCH AMILY WITCH TO THE OCAL You would do this to extend the distance you can run from the KVM switch to a keyboard and mouse.
  • Page 18 CHAPTER 4: Checklist of System Components 4.2.2.B Switches with DB25 Composite User Ports The user ports of several ServSwitch family KVM switches are specially pinned DB25 connectors that function as composite (all-in-one) interfaces. At the time of this writing, some of the important ServSwitch family models in this category are: •...

  • Page 19: To Connect A Keyboard And Mouse To The Remote Unit

    SERVSWITCH™ BRAND PS/2 MICRO EXTENDER 4.2.3 T ONNECT A EYBOARD AND OUSE TO THE EMOTE You’ll be plugging the keyboard and mouse directly into the corresponding connectors on the Remote Unit. 4.2.4 T KVM S ONNECT A WITCH AMILY WITCH TO THE EMOTE You would do this to extend the distance you can run from the KVM switch to a CPU.
  • Page 20 CHAPTER 4: Checklist of System Components 4.2.4.B Switches with Regular ServSwitch Style DB25 Composite CPU Ports The CPU ports of the regular ServSwitch and several other ServSwitch family KVM switches are specially pinned DB25 connectors that function as composite (all-in- one) interfaces.

  • Page 21: To Connect The Local Unit To The Remote Unit

    SERVSWITCH™ BRAND PS/2 MICRO EXTENDER 4.2.5 T ONNECT THE OCAL NIT TO THE EMOTE To interconnect the Local and Remote Units of the Extender, you’ll need industry- standard structured cabling (Category 5 UTP or STP, 4-pair) terminated with RJ-45 plugs. This cable is not included with the Extender. Order CAT5 patch cables such as our product code EYN737MS or CAT5 bulk cable such as our EYN840A.

  • Page 22: Installation

    CHAPTER 5: Installation 5. Installation To install your ServSwitch™ Brand CAT5 PS/2 Micro Extender system, first test- place it (if you want to) as described in Section 5.1, then attach devices as described in Section 5.2, then finish your installation as described in Section 5.3. 5.1 Test-Placing the Extender System (Optional) We recommend testing your Extender system with a test setup confined to a single room;...

  • Page 23: Attaching A Cpu To The Local Unit

    SERVSWITCH™ BRAND PS/2 MICRO EXTENDER 5.2.1 A TTACHING A TO THE OCAL Run the included PS/2 extension cables from the CPU to the Local Unit: keyboard port to keyboard connector, mouse port to mouse connector. Included PS/2 extension cables Local Unit Figure 5-1.
  • Page 24 CHAPTER 5: Installation 5.2.2.B Attaching a Switch with a Single Composite User-Port Connector First plug the included PS/2 extension cables into the Local Unit’s keyboard and mouse connectors. Then plug a User Cable designed for the KVM switch—refer to Sections 4.2.2.B and 4.2.2.C for product codes—into one of the switch’s user ports. Connect the matching ends of the extension cables and User Cable together as shown in Figure 5-3.

  • Page 25: Attaching A Keyboard And Mouse To The Remote Unit

    SERVSWITCH™ BRAND PS/2 MICRO EXTENDER 5.2.3 A TTACHING A EYBOARD AND OUSE TO THE EMOTE Plug the keyboard and mouse directly into the Remote Unit’s matching connectors. Remote Unit Figure 5-4. Attaching a keyboard and mouse to the Remote Unit. 5.2.4 A KVM S TTACHING A...
  • Page 26 CHAPTER 5: Installation 5.2.4.B Attaching a Switch with Single Composite CPU-Port Connectors Run a CPU Cable designed for the KVM switch—refer to Sections 4.2.4.B and 4.2.4.C for product codes—from one of the switch’s CPU ports to the Remote Unit’s keyboard and mouse connectors. The cable’s video strand won’t be used. Regular ServSwitch (KV3108SA-R4) ServSwitch CPU Remote Unit...

  • Page 27: Finishing Your Installation

    SERVSWITCH™ BRAND PS/2 MICRO EXTENDER 5.3 Finishing Your Installation To finish installing your Extender system after attaching devices to it as described in Section 5.2, take these steps: 1. Attach the output cord of the Remote Unit’s power supply to the Unit’s power jack.

  • Page 28: Operation

    CHAPTER 6: Operation 6. Operation 6.1 Keyboard and Mouse Emulation The ServSwitch™ Brand CAT5 PS/2 Micro Extender uses a microprocessor to emulate the presence of a directly connected keyboard and mouse for the attached PC. This means that you don’t have to connect a keyboard or mouse to the PC in order for it to boot;...

  • Page 29: Troubleshooting

    Brand CAT5 PS/2 Micro Extender, and suggests possible remedies. If the recommended actions don’t help, try rebooting the PC. If all else fails, or if you don’t see your problem here, or if your problem keeps recurring, call Black Box Technical Support as directed in Section 7.3.

  • Page 30: Mouse

    CHAPTER 7: Troubleshooting 7.1.2 M OUSE The CPU’s video shows a mouse cursor/pointer, but the mouse does not work. 1. Cycle power to the Remote Unit. 2. Check the mouse cable and (if necessary) the PS/2 mouse-extension cable; if it’s loose, or if you have the keyboard and mouse cables reversed (plugged into each other’s Extender ports), plug the cable(s) in properly and cycle power to the Remote Unit.

  • Page 31: Both Keyboard And Mouse

    SERVSWITCH™ BRAND PS/2 MICRO EXTENDER 7.1.3 B EYBOARD AND OUSE Neither the keyboard nor the mouse operates, or both have locked up. 1. Reset the PC and try again. 2. If the problem is happening at a remote station, cycle power to the Remote Unit.

  • Page 32: General Questions About The Extender

    CHAPTER 7: Troubleshooting 7.2 General Questions About the Extender Is it possible to use an interconnection cable longer than 300 meters (1000 feet)? Can Extenders be daisychained to operate across greater distances? We don’t recommend doing either of these things. Can the Extender be used between buildings? No.

  • Page 33: Calling Black Box

    If you are returning the unit, please include everything you received with it. Before you ship it back to Black Box for repair or return, contact us to get a Return Authorization (RA) number.

  • Page 34: Appendix: Cable Pinning/Pairing

    RX, Pair 3 White/Brown TX, Pair 4 Brown/White RX, Pair 4 NOTES The Extender has been tested with all major makes of CAT5 cable including Black Box, Berk-Tek ™ , Mohawk ® , and AT&T ® . The Extender has...
  • Page 35 SERVSWITCH™ BRAND PS/2 MICRO EXTENDER DISCLAIMERS While every precaution has been taken in the preparation of this manual, the manufacturer assumes no responsibility for errors or omissions. Neither does the manufacturer assume any liability for damages resulting from the use of the information contained herein.
  • Page 36 NOTES...
  • Page 37 NOTES...
  • Page 38 Customer Support Information: FREE tech support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746. Mailing address: Black Box Corporation, 1000 Park Dr., Lawrence, PA 15055-1018 World-Wide Web: www.blackbox.com • E-mail: info@blackbox.com © Copyright 2002. Black Box Corporation. All rights reserved.
