Draper FlexShade Instructions Installation & Operation page 11

Dual Roller Coupled Motorized FlexShade

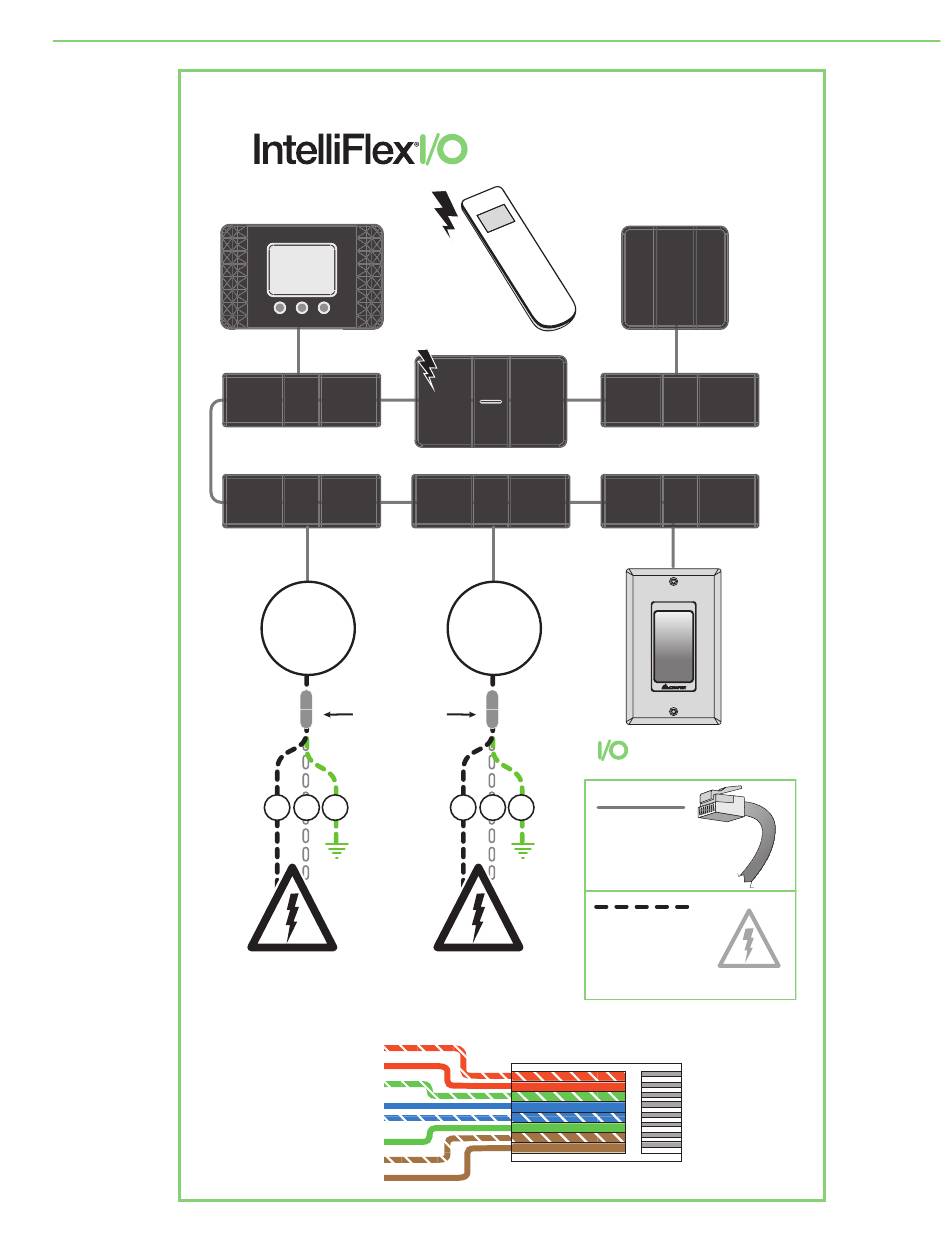

Controls & System Overview
AV Gateway
Handheld
Network
Device Connector
Network
Device Connector
I/O
120VAC
Motor
M12
Connectors
B W G
110-120V Line
Data Cable Pin-Out - RJ45 Connector
1 - ORANGE/WHITE
2 - ORANGE
3 - GREEN/WHITE
4 - BLUE
5 - BLUE/WHITE
6 - GREEN
7 - BROWN/WHITE
8 - BROWN
®
(Extra Large Hardware)
120VAC Motors
Remote
Wireless
Gateway
Network
Device Connector
I/O
120VAC
Motor
B W G
Dashed Wiring
by Electrician
110-120V Line
Contact
Closure
Interface
Network
Device Connector
Network
Device Connector
Wall Switch
Data Cable
with RJ45
Connector
page 11 of 12
