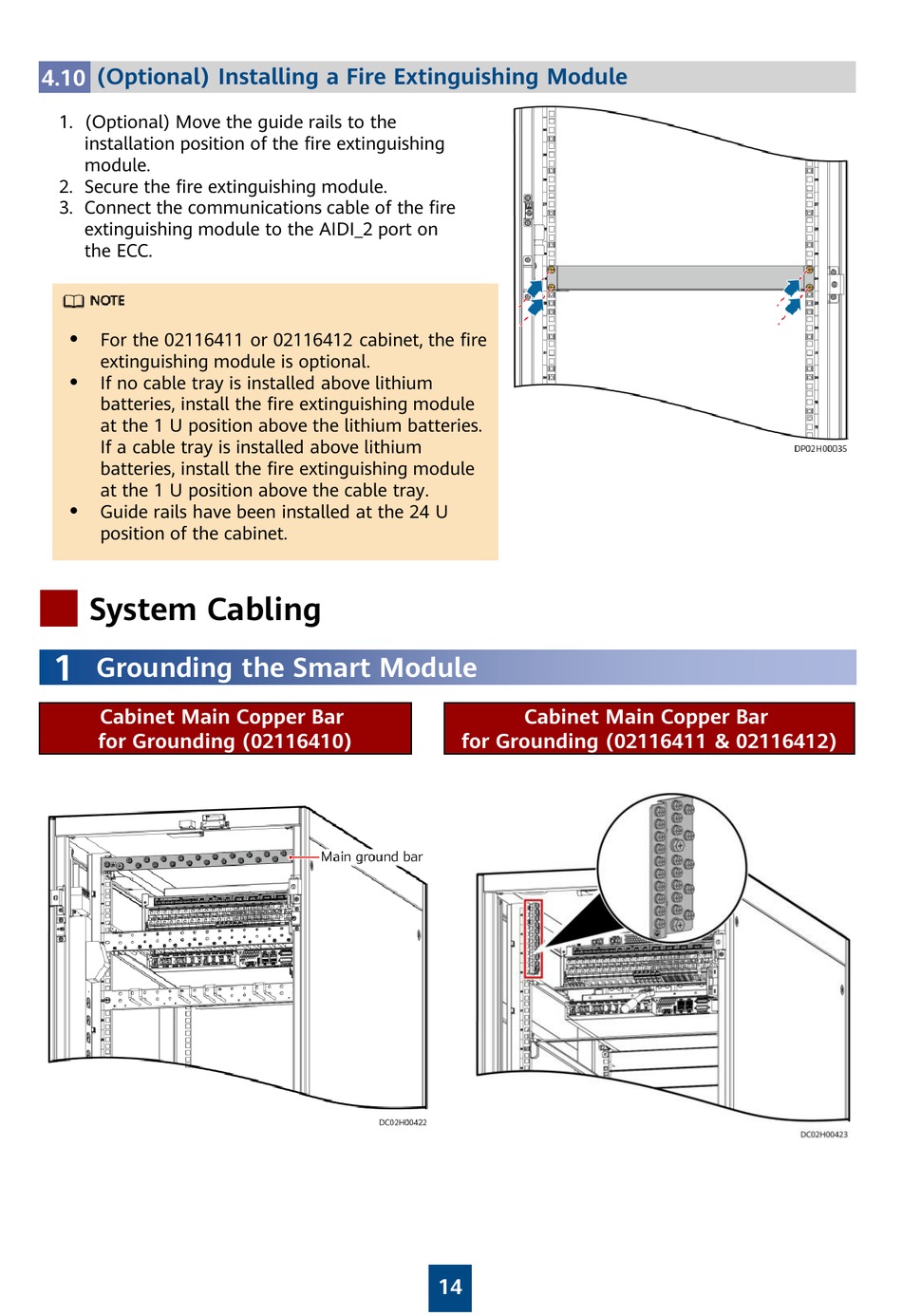

(Optional) Installing a Fire Extinguishing Module
4.10
1. (Optional) Move the guide rails to the
installation position of the fire extinguishing
module.
2. Secure the fire extinguishing module.
3. Connect the communications cable of the fire
extinguishing module to the AIDI_2 port on
the ECC.
For the 02116411 or 02116412 cabinet, the fire

extinguishing module is optional.
If no cable tray is installed above lithium

batteries, install the fire extinguishing module
at the 1 U position above the lithium batteries.
If a cable tray is installed above lithium
batteries, install the fire extinguishing module
at the 1 U position above the cable tray.
Guide rails have been installed at the 24 U

position of the cabinet.

System Cabling

1
Grounding the Smart Module
Cabinet Main Copper Bar
for Grounding (02116410)
Cabinet Main Copper Bar
for Grounding (02116411 & 02116412)
