www.ti.com
5.2.2.3 Histogram Plot
The Histogram plot shows the number of occurrences a code or group of codes appear. User selection includes
a choice of:
•
# of Bins selecting the number of bins to include in the plot
•
Bin Size selecting the number of unique codes to include in each bin
The # Bins and Bin Size are selectable options and display next to the charting icons near the right side of the
GUI below the statistics.
SBAU368 – FEBRUARY 2021
Submit Document Feedback

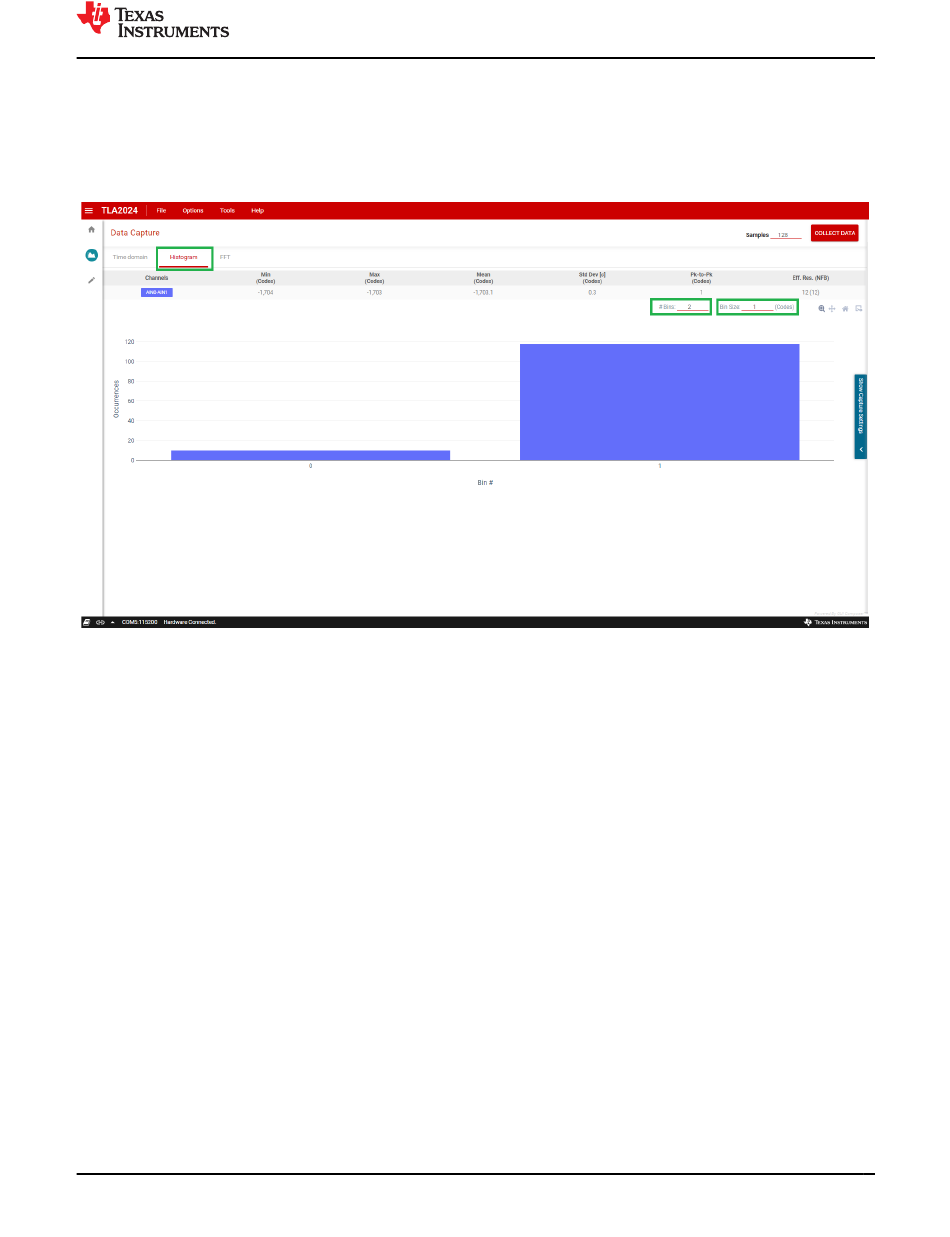

Figure 5-18. Histogram Plot
Copyright © 2021 Texas Instruments Incorporated
TLA2024EVM-PDK GUI
TLA2024EVM-PDK User's Guide
25
