5.1 Menu Bar

The Menu bar across the top of the GUI displays the device name used on the EVM along with a number of
drop-down menu options.
5.1.1 File Menu
The File drop-down menu displays available options. The options include:
• Program Device
• Analysis Data
– Save data
– Load data
• Register Data
– Save register settings
– Load register settings
The Program Device option should only be necessary if an important firmware change is required. If
reprogramming the PAMBoard firmware becomes necessary, an additional pop-up box displays with information
on the programming procedure.
By using the Save data option the Analysis Data is saved to a comma-separated values (CSV) formatted file for
further analysis using external programs. The data can also be loaded back into the GUI for further review or
analysis by selecting Load data.
SBAU368 – FEBRUARY 2021
Submit Document Feedback

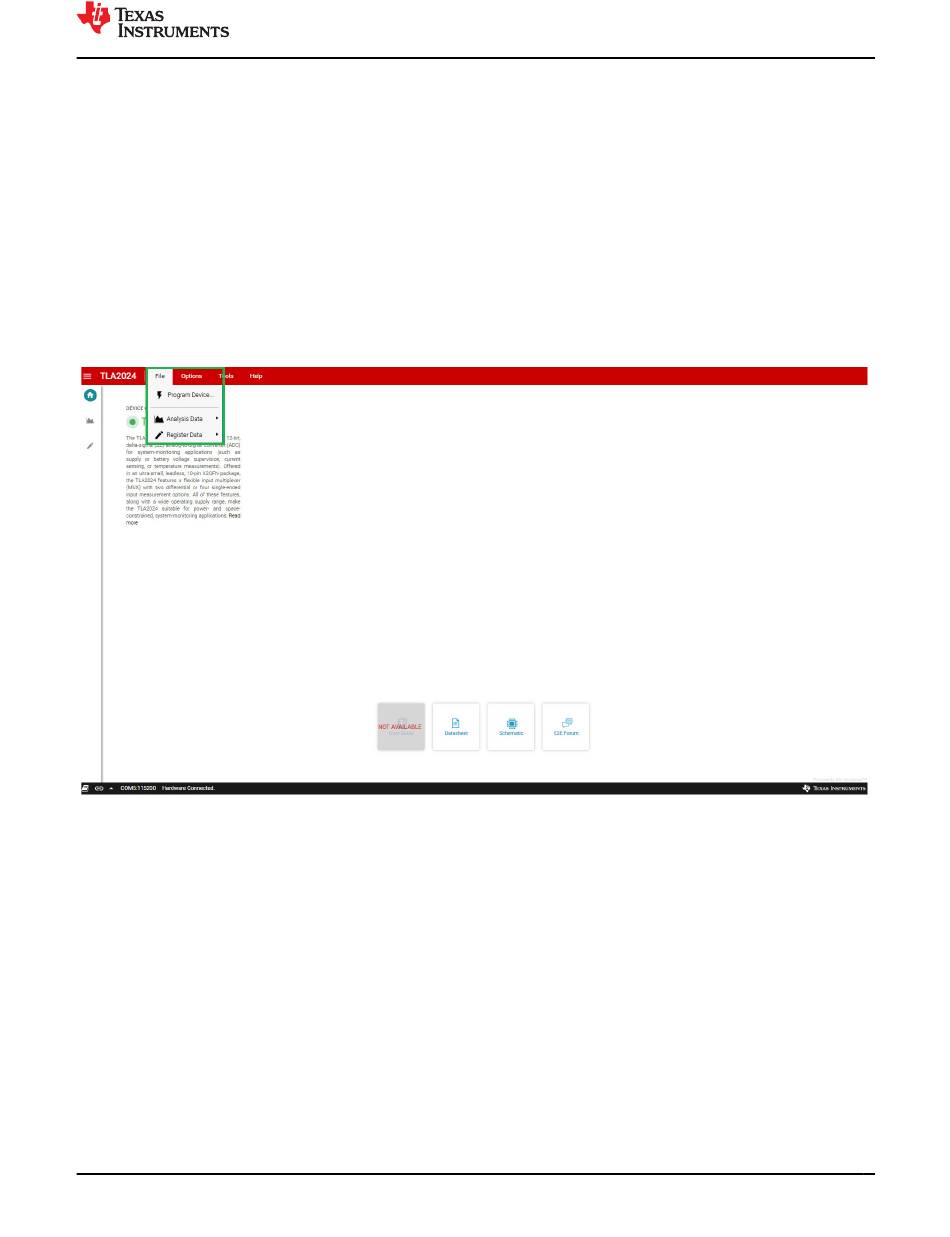

Figure 5-4. File Menu
