TLA2024EVM-PDK GUI
5.2.2.2 Time Domain Plot
The Time Domain plot displays the sample count number in the X-axis. The Y-axis is displayed as either codes
or volts with the selection in a drop-down menu. The Y-axis drop-down menu displays next to the charting icons
near the right side of the GUI below the statistics.
24
TLA2024EVM-PDK User's Guide

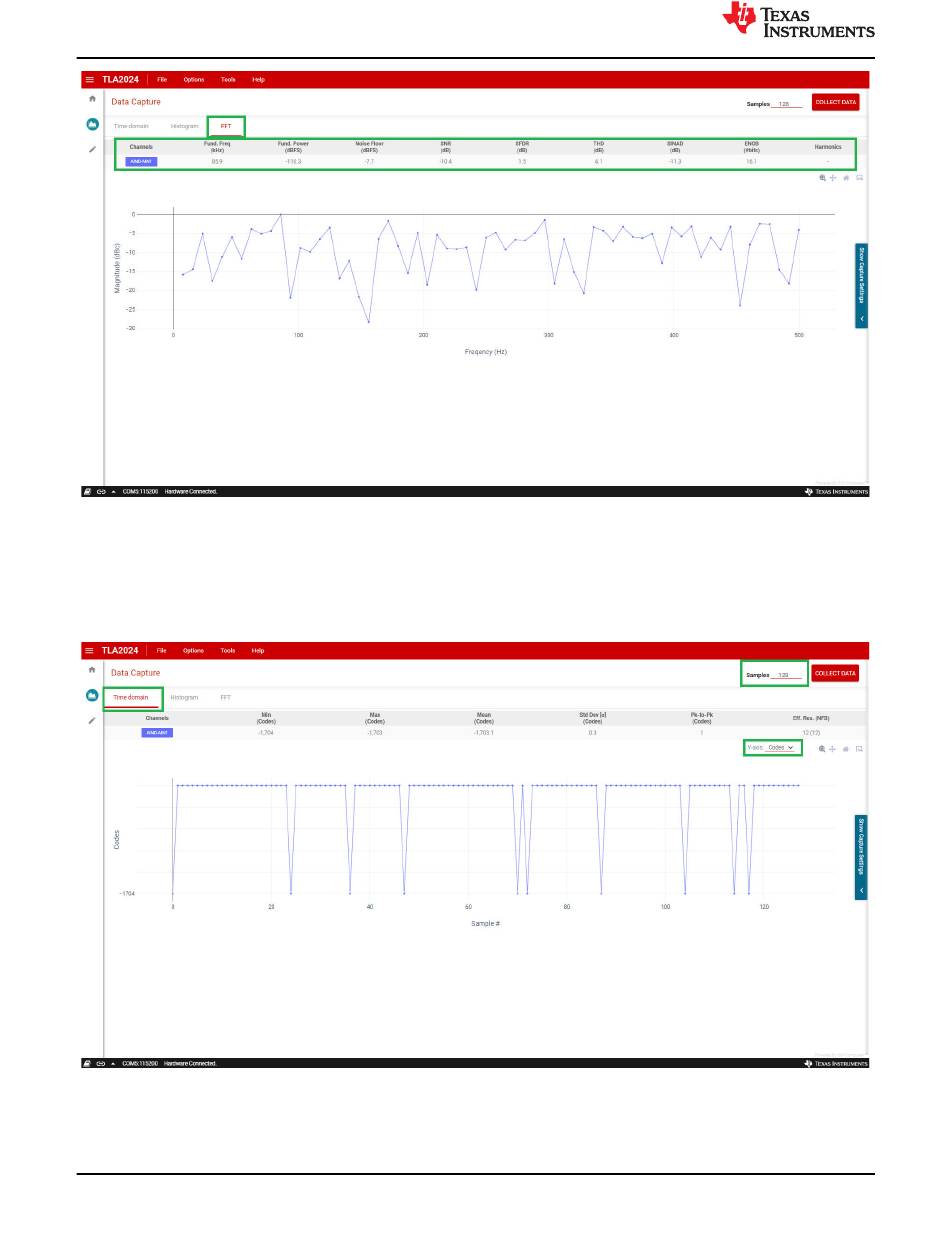

Figure 5-16. FFT Statistics
Figure 5-17. Time Domain Plot
Copyright © 2021 Texas Instruments Incorporated
www.ti.com
SBAU368 – FEBRUARY 2021
Submit Document Feedback
