FRAME IT ALL Stack & Extend Quick Manual page 3

ASSEMBLY INSTRUCTIONS - continued

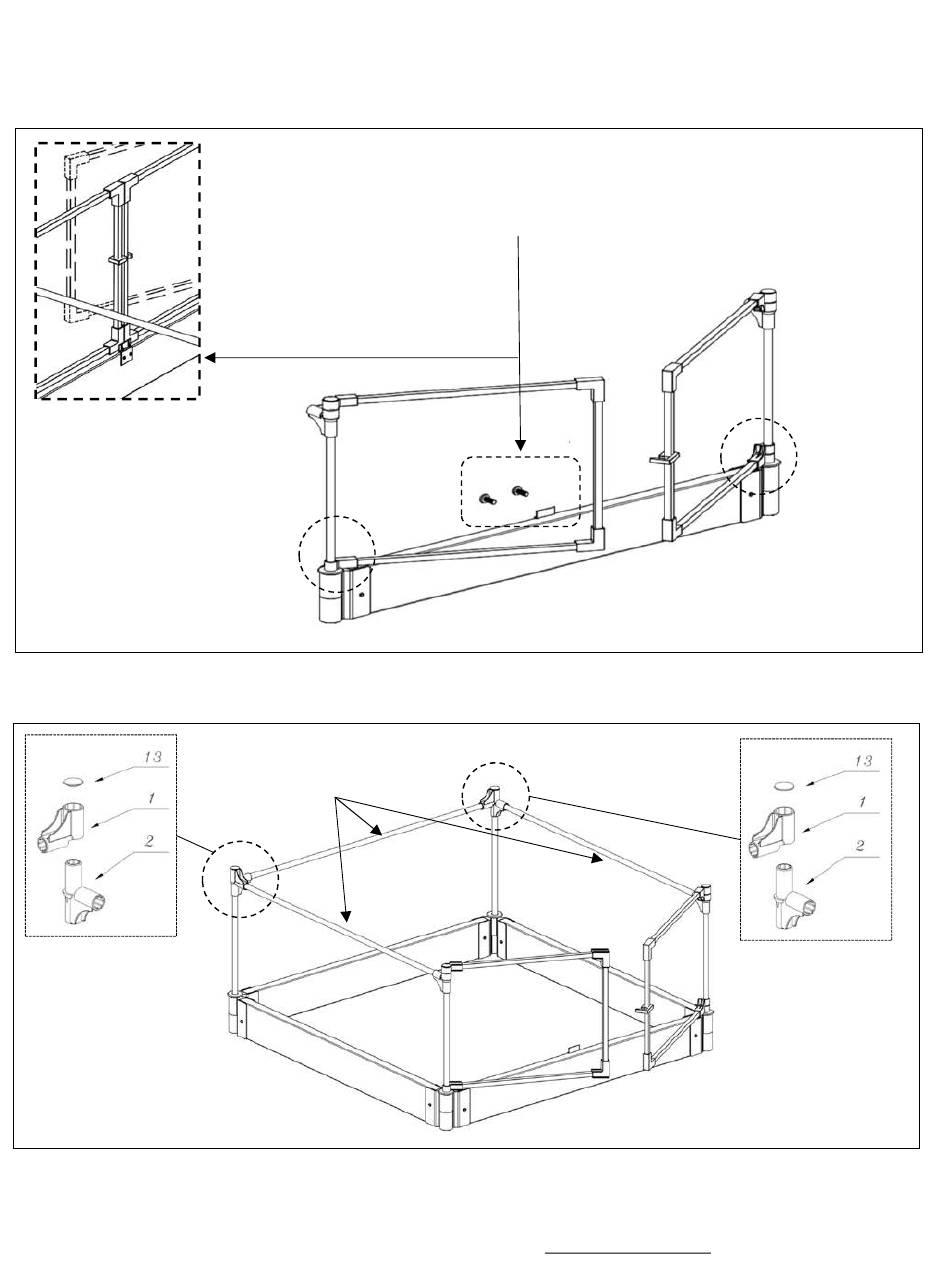

STEP 3: Attach the gates to the raised bed boards
Slide the round
pole into the
STEP 4: Attach rest of framework to gate frame
Use connectors
(parts 13, 1 & 2) to
form the upper left
hinge on round
tube (20) – follow
top diagram
Install gate stopper (12) with screws (11) on
the inner side of the board to prevent the gate
from swinging inward
View from the inner side of
the board.
bracket
Connect round tube (19)
to the two connectors
Customer Service: 1800-914-9835 | support@frameitall.com
Slide the round pole
into the bracket
Use connectors
(parts 13, 1 & 2) to
form the upper
right hinge on
round tube (20) –
follow top diagram
