Toby Desk

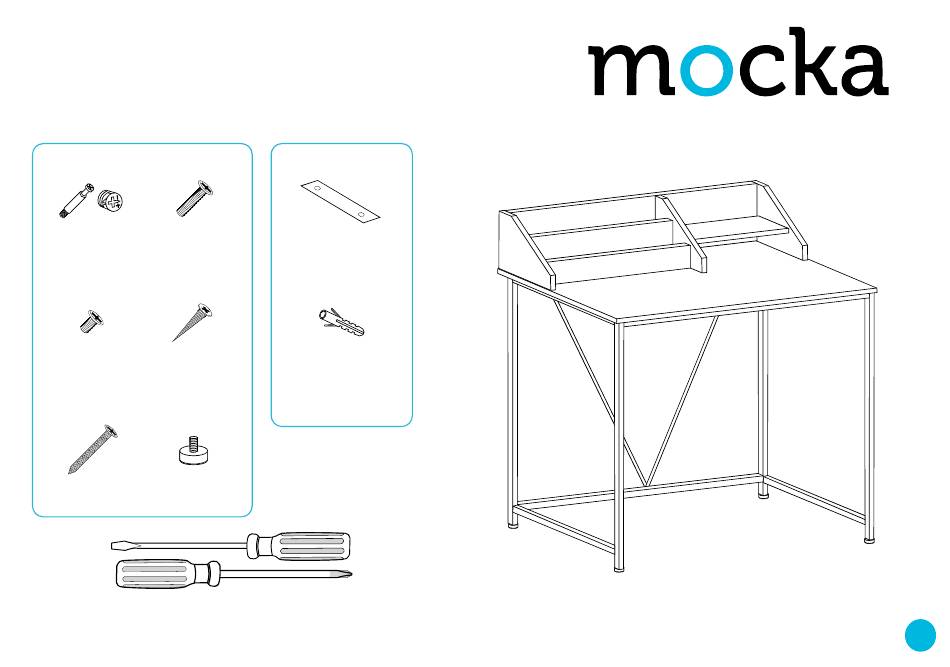

Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B1
nut & bolt
25mm screw
combo x16
x10
B2
C
12mm screw
screw
x3
x6
D
E
40mm screw
feet
x10
x4
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
F
wall strap
x2
G
wall plug
x2
Wall Strap
