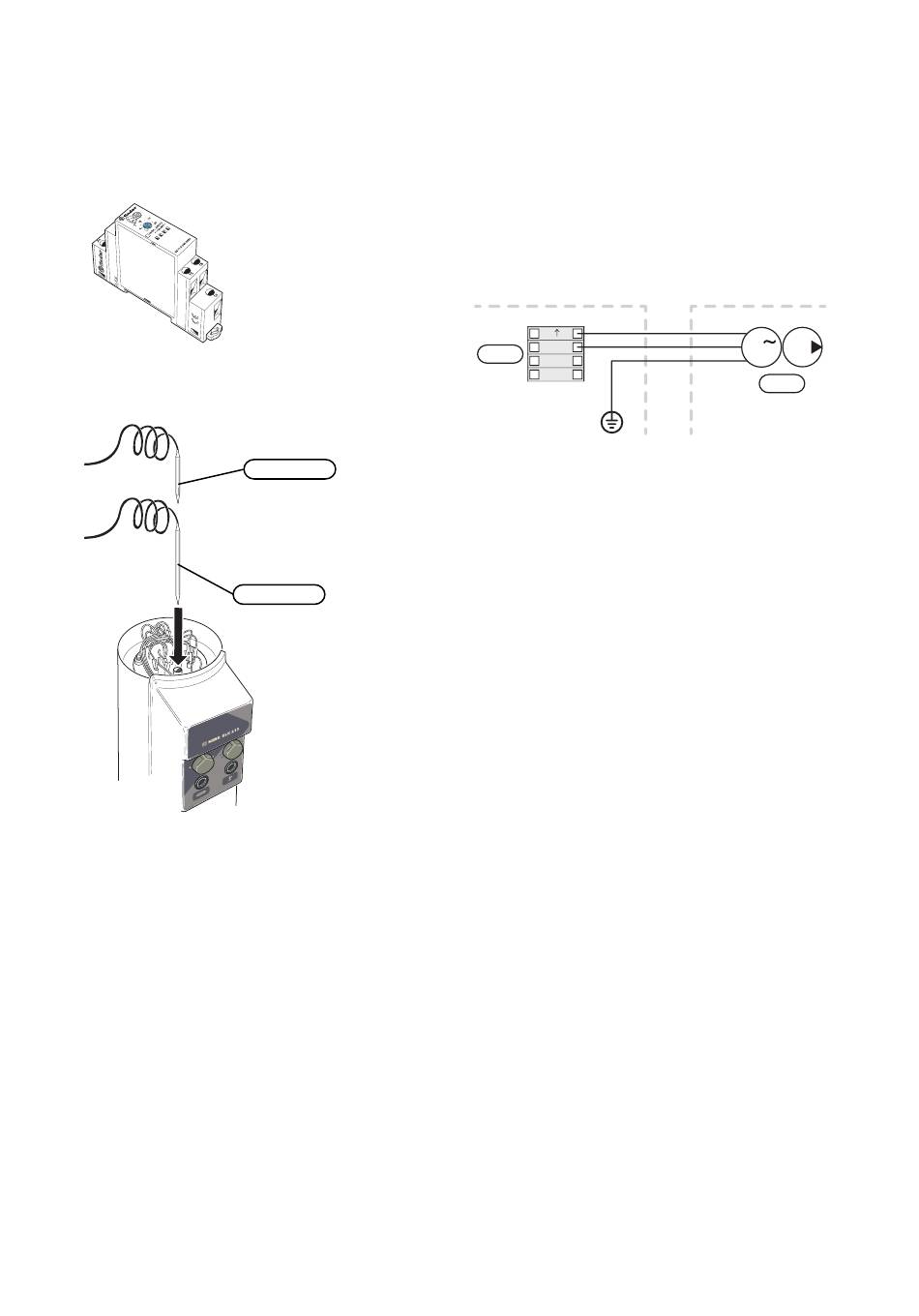

Time relay

ELK 213 is equipped with a time relay (KF1), which

blocks part of the immersion heater via contactor (QA2)

so that a maximum of 6 kW is connected during the first

two hours after ELK 213 has been disconnected.

LEK

Install the thermostat bulb BT35.

Install the temperature limiter bulb FQ10-BT8.

NIBE ELK 213

FQ10-BT8

BT35

Connection of the

circulation pump

(GP10)

Connect the cable for any circulation pump fitted to

terminal block (X8), fused with miniature circuit breaker

(FC1) on 10 A and routed through separate strain-relief.

ELK 213

Chapter 4 | Electrical connection

External

Externt

GP10
