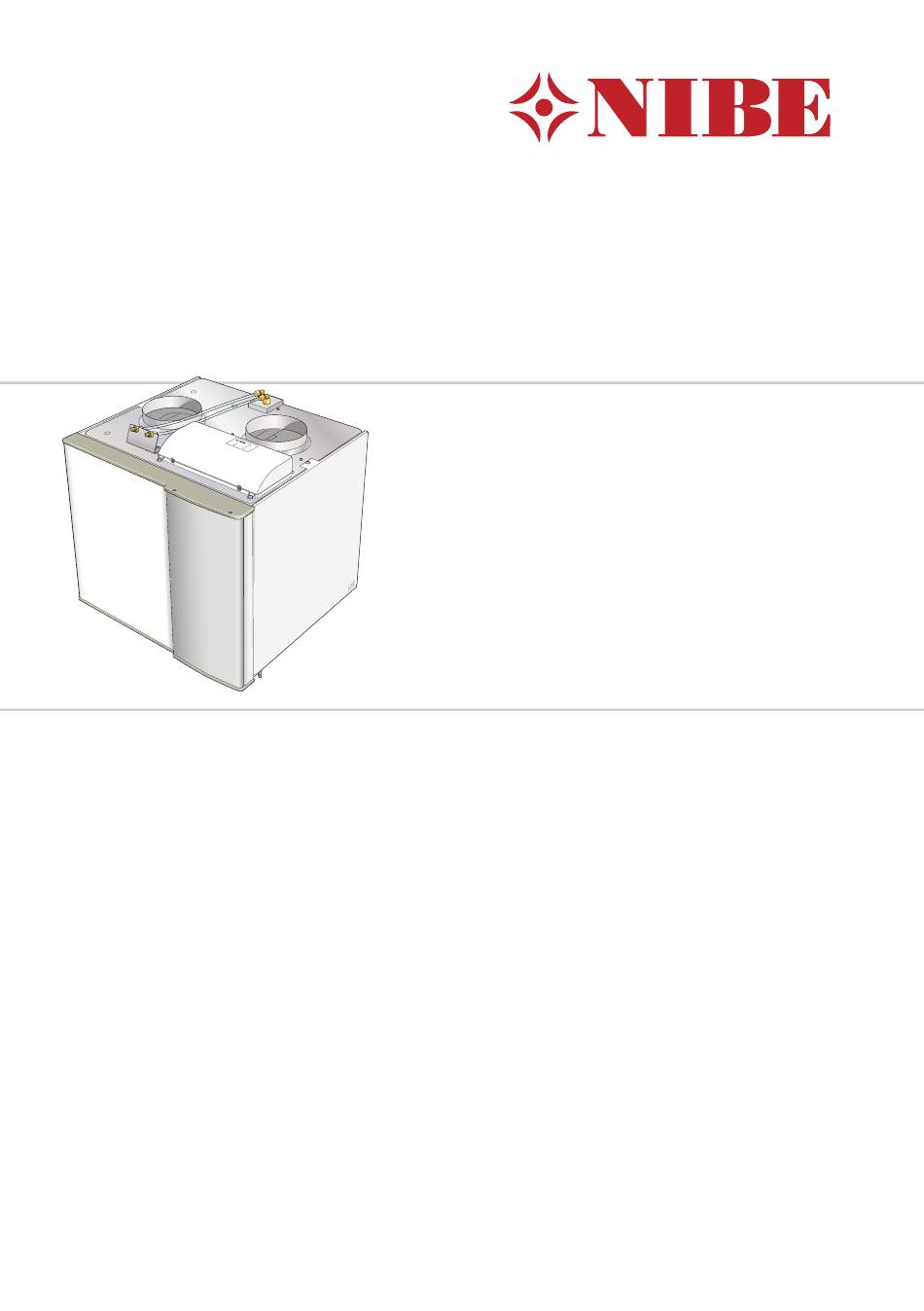

  • Page 1 User manual NIBE SAM 41 Supply air module UHB GB 1623-1 331781...

  • Page 3: Table Of Contents

    Table of Contents 1 Important information Installation data Safety information NIBE SAM 41 - An excellent choice 2 Maintenance of NIBE SAM 41 Regular checks Disturbances in comfort 3 Technical data 4 Glossary Index Table of Contents | NIBE SAM 41...

  • Page 4: Important Information

    T3 15°C supply air temp. at T3 22°C Serial number must always be given Certification that the installation is carried out according to instructions in NIBE's installer manual and applicable regulations. Date __________________ Signed _________________________ Chapter 1 |...

  • Page 5: Safety Information

    Rights to make any design or technical modifications are reserved. ©NIBE 2016. NOTE If the supply cable is damaged, only NIBE, its service representative or similar authorised person may replace it to prevent any danger and damage. Symbols NOTE This symbol indicates danger to machine or person.
  • Page 6 Marking NIBE SAM 41 is CE marked and fulfils IP21. The CE marking means that NIBE ensures that the product meets all regu- lations that are placed on it based on relevant EU directives. The CE mark is obligatory for most products sold in the EU, regardless where they are made.
  • Page 7 NIBE Energy Systems France Sarl, Zone industrielle RD 28, Rue du Pou du Ciel, 01600 Reyrieux Tel : 04 74 00 92 92 Fax : 04 74 00 42 00 E-mail: info@nibe.fr www.nibe.fr NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way, Chesterfield S41 9QG Tel: 0845 095 1200 Fax: 0845 095 1201 E-mail: info@nibe.co.uk...
  • Page 8 For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu for more information. Chapter 1 | Important information NIBE SAM 41...

  • Page 9: Nibe Sam 41 - An Excellent Choice

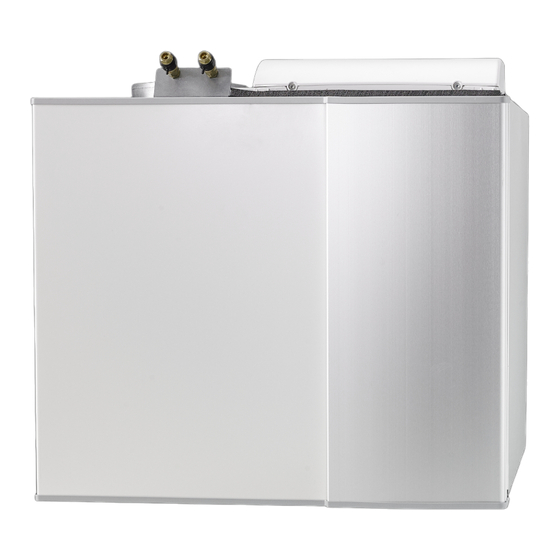

    NIBE SAM 41 - An excellent choice NIBE SAM 41 is a supply air module specially designed to combine recovery of mechanical exhaust air with preheated supply air. NIBE SAM 41 together with NIBE F750 provides a total solution for exhaust and supply air.

  • Page 10: Maintenance Of Nibe Sam

    2 Maintenance of NIBE SAM 41 Regular checks Your supply air module requires minimal maintenance after commissioning. On the other hand, it is recommended that you check your installation regularly. If something unusual occurs, messages about the malfunction, in the form of different alarm texts, appear in the heat pump display.

  • Page 11: Disturbances In Comfort

    NIBE F750 is interrupted the countdown begins again. 1. Switch off the heat pump and wait until the fan in NIBE SAM 41 has stopped. 2. Remove the front hatch by pulling it straight out.
  • Page 12 You need the product's 14 digit serial number for servicing and support. Troubleshooting If the operational interference is not shown in the display the following tips can be used: Basic actions Start by checking the following possible fault sources: Chapter 2 | Maintenance of NIBE SAM 41 NIBE SAM 41...
  • Page 13 That the heat pump is running or that the supply cable to NIBE SAM 41 ■ is connected. Group and main fuses of the accommodation. ■ The property's earth circuit breaker. ■ Low hot water temperature or a lack of hot water The heat pump has temporarily prioritised supply air ventilation to pre- ■...
  • Page 14 Venting Vent NIBE SAM 41 by opening one vent valve at a time, until water comes out. Then close the valve again. Venting valve Chapter 2 | Maintenance of NIBE SAM 41 NIBE SAM 41...

  • Page 15: Technical Data

    3 Technical data Detailed technical specifications for this product can be found in the in- stallation manual (www.nibe.eu). Chapter 3 | Technical data NIBE SAM 41...

  • Page 16: Glossary

    A valve that mixes the cold water with the hot water leaving the heater. Supply temperature The temperature of the heated water that the heat pump sends out to the heating system. The colder the outdoor temperature, the higher the supply line temperature becomes. Chapter 4 | Glossary NIBE SAM 41...

  • Page 17: Index

    Alarm, 12 Manage alarm, 12 Troubleshooting, 12 Glossary, 16 Important information Installation data, 4 NIBE SAM 41 – An excellent choice, 9 Serial number, 6 Installation data, 4 Maintenance of NIBE SAM 41, 10 Regular checks, 10 Manage alarm, 12 NIBE SAM 41 –...
  • Page 20 WS name: -Gemensamt WS version: a204 WS release date: 2016-06-14 10:30 Publish date: 2016-06-29 07:46 NIBE AB Sweden Hannabadsvägen 5 Box 14 SE-285 21 Markaryd info@nibe.se www.nibe.eu 331781...
