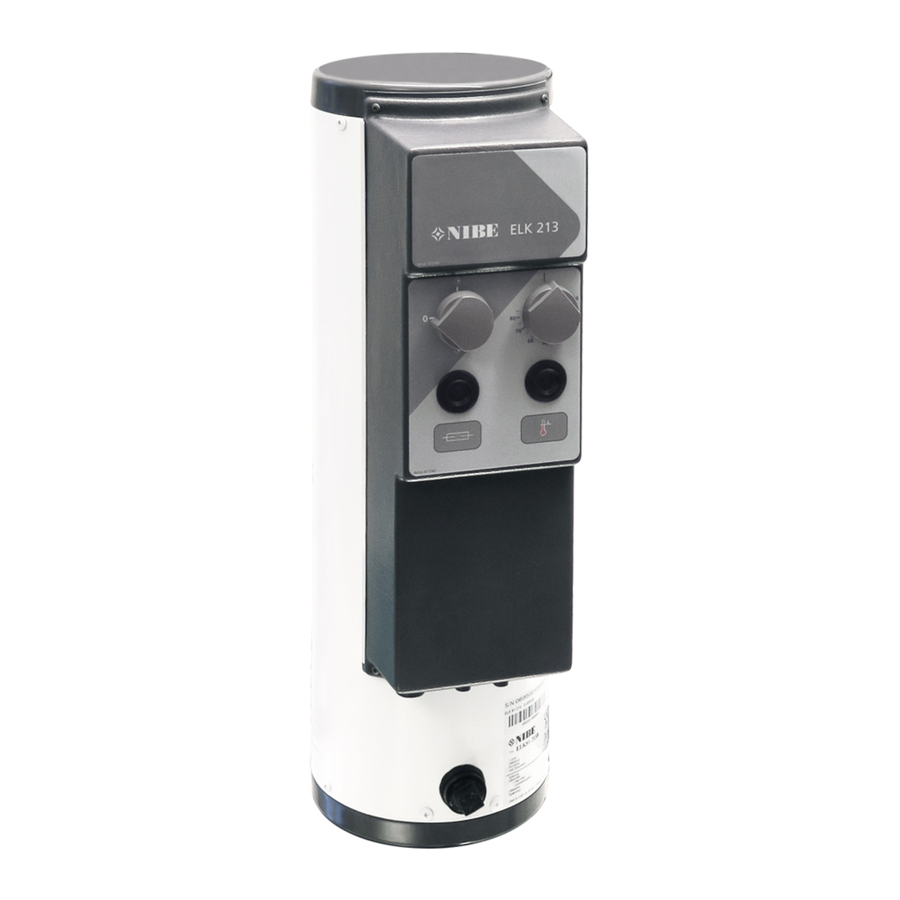

Installer manual ELK 213
Immersion heater
IHB GB 1714-6
031403

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELK 213 and is the answer not in the manual?

Questions and answers

Summary of Contents for Nibe ELK 213

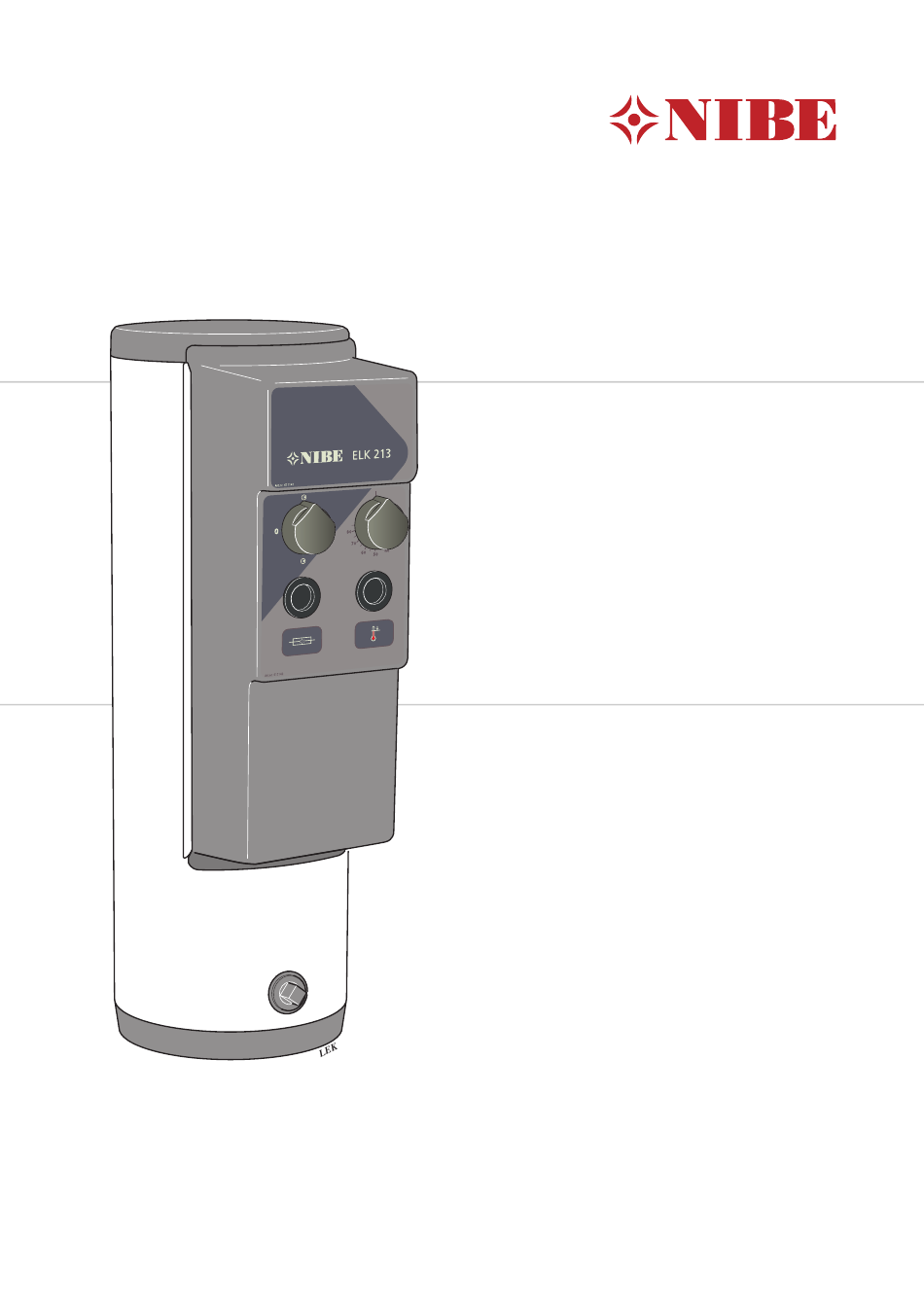

  • Page 1 Installer manual ELK 213 Immersion heater IHB GB 1714-6 031403...
  • Page 3: Table Of Contents

    5 Electrical connection Electrical connection versions F1345 External control Power supply Output Time relay Sensors Connection of the circulation pump (GP10) 6 Activating ELK 213 Start guide Menu system 7 Disturbances in comfort Troubleshooting 8 Technical data Dimensions Technical specifications...
  • Page 4: Important Information

    Safety information The serial number can be found at the bottom right of This manual describes installation and service procedures ELK 213. for implementation by specialists. This appliance can be used by children aged from 8 years and above and per-...
  • Page 5: General

    ELK 213are made of stainless steel (SIS 2333), which gives a very good service life. ELK 213 is equipped with a time relay. Time delay is re- commended by the Swedish Power Association when connected power exceeds 6 kW.
  • Page 6: Component Positions

    3 Component positions BT35 XL10 Component list Immersion heater BT35 Thermostat 3-pole Miniature circuit-breaker Temperature limiter Time relay Serial number plate Contactor (-K10) Contactor (-K22) Contactor (-K21) Switch Terminal block Terminal block Connection supply line, R50 Connection return line, R50 XL10 Drain connection R20 * Counter flanges, R50.
  • Page 7: Front Panel

    Front panel BT35 NOTE The switch (SF1) must not be put in " " mode OF F before the boiler water has been filled. The overheat protection, thermostat and the immer- sion heater could be damaged. Functions on the front panel Switch with 3 positions 0 - OF F...
  • Page 8: Pipe Connections

    The con- nection line must rise continuously. ELK 213 can be installed as a freestanding electric boiler or as an electric heater with another heat source. The safety valve must be "exercised" regularly, at least four times a year.
  • Page 9: System Diagram

    Explanation System diagram Electric heater ELK 213 Pressure gauge Expansion vessel See www.nibe.eu for complete docking prin- Safety valve ciples. GP10 Circulation pump QM40 - QM41 Shut off valves NOTE QN11 Shunt valve This is the outline diagram. Actual installations...
  • Page 10: Installation Alternative

    (Part no. 022 077). -CM4 -CP1 In the event of large hot water demands, ELK 213, in- stalled on double-jacket accumulator tank type, can be used to heat the domestic hot water. This is also a good solution for aggressive or hard water.
  • Page 11 When the electric heater is installed on the existing wood boiler and is solely responsible for the heating demand, the flue should be sealed. Explanation Pressure gauge Expansion vessel ELK 213 Oil/gas boiler Safety valve, hot water Safety valve, heating medium side Mixing valve Circulation pump, boiler...
  • Page 12 This prevents condensation and increases the service life of the boiler. Explanation Pressure gauge Expansion vessel ELK 213 Water heater Oil/gas boiler Safety valve, hot water Safety valve, heating medium side Mixing valve...
  • Page 13: Electrical Connection

    The climate unit must not be powered when F1345 without 2.0 installing ELK 213. Terminal blocks X1 and X8 in ELK 213 connect to the terminal blocks X2-X4 in the heat pump as illustrated. NOTE To prevent interference in the event of any spli-...
  • Page 14 F1345 with 2.0/F1355 SMO 20 and SMO 40 Terminal blocks X1 and X8 in ELK 213 connect to the AA7:X2 AA7:X2 terminal blocks X5, X7 and X8 on the input board AA101 in the heat pump as illustrated. -FC1 -AA101...
  • Page 15: Power Supply

    7 and 9 kW. Powers 11 and 13 kW must not be controlled in two ELK 213 is equipped with a time relay (KF1), which blocks steps. Change-over occurs on terminal block (X8) using part of the electric heater via contactor (QA2) so that a the wiring enclosed.
  • Page 16: Sensors

    2. Install the overheat protection bulb (short). Connection of the circulation pump (GP10) Connect the cable for any circulation pump fitted to terminal block (X8), fused with miniature circuit breaker (FA1) on 10 A and routed through separate strain-relief. ELK 213 Externt ELK 213 External GP10 GP10...
  • Page 17: Activating Elk 213

    6 Activating ELK 213 This section describes how to activate ELK 213 in install- ations together with a heat pump. The menu setting of ELK 213 can be performed via the start guide or directly in the menu system. Caution Also see the Installer manual for the product that ELK 213 will be connected to.
  • Page 18: Disturbances In Comfort

    7 Disturbances in comfort Troubleshooting In the event of malfunction or operating mal- function, first check the points below. NOTE Work behind covers secured by screws may only be carried out by, or under the supervision of, a qualified installation engineer. NOTE In the event of action to rectify malfunctions that require work within screwed hatches, the...
  • Page 19: Technical Data

    8 Technical data Dimensions All dimensions in mm. Immersion heater Chapter 8 | Technical data...
  • Page 20: Technical Specifications

    Technical specifications IP 21 Type Electrical data Rated voltage 400V 3N ~ 50Hz Max output, electric heater 13 (output on delivery 9 kW) Max. permitted total current for connected apparatus Recommended fuse rating immersion heater Enclosure class IP21 Heating medium circuit Max permitted pressure in the boiler MPa/bar 0.3/3...
  • Page 21: Energy Labelling

    Energy labelling Information sheet Supplier NIBE Model ELK 213 Energy efficiency class for space heating Rated heat output (Pdesignh) Annual energy consumption space heating 20,310 Seasonal space heating energy efficiency 36.6 Sound power level L indoors Technical documentation Model ELK 213...
  • Page 22: Electrical Circuit Diagram

    Electrical circuit diagram Chapter 8 | Technical data Immersion heater...
  • Page 23: Item Register

    Circulation pump, 8 Draining valve, 8 Safety valve, 8 System diagram, 9 Recovery, 4 Safety information, 4 Marking, 4 Symbols on ELK 213, 4 Serial number, 4 Symbols, 4 Symbols on ELK 213, 4 System diagram, 9 Technical data, 19 Dimensions, 19...
  • Page 27: Contact Information

    Tel: +7 831 419 57 06 E-mail: kuzmin@evan.ru www.nibe-evan.ru NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 Markaryd Tel: +46 (0)433 73 000 E-mail: info@nibe.se www.nibe.se For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu for more information.
  • Page 28 WS name: -Gemensamt WS version: a341 WS release date: 2017-04-03 14:46 Publish date: 2017-04-27 15:27 NIBE AB Sweden Hannabadsvägen 5 Box 14 SE-285 21 Markaryd info@nibe.se www.nibe.eu 031403...
