Install Push Rod Cover - Toyota 3F-E Repair Manual Supplement

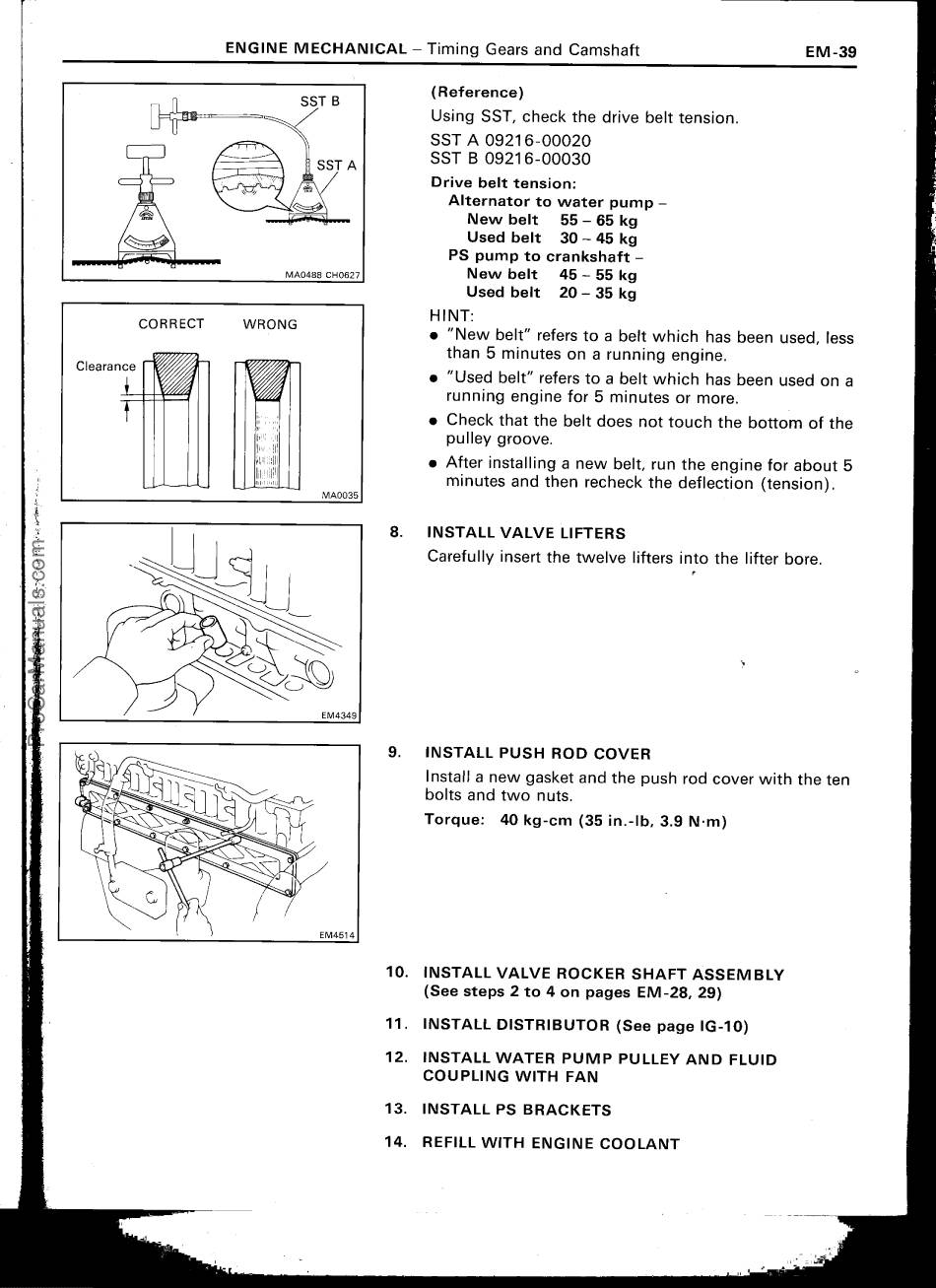

ENGINE MECHANICAL — Timing Gears and Camshaft
CORRECT
WRONG
Clearance
( Reference)
Using SST, check the drive belt tension.
SST A 09216-00020
SST B 09216-00030
Drive belt tension:
HINT:
• "New belt" refers to a belt which has been used, less
• "Used belt" refers to a belt which has been used on a
• Check that the belt does not touch the bottom of the
I!lul'I
• After installing a new belt, run the engine for about 5
MA0035
8.
INSTALL VALVE LIFTERS
Carefully insert the twelve lifters into the lifter bore.
EM4349
9.

INSTALL PUSH ROD COVER

Install a new gasket and the push rod cover with the ten
bolts and two nuts.
Torque: 40 kg-cm (35 in.-Ib, 3.9 N•m)
10. INSTALL VALVE ROCKER SHAFT ASSEMBLY
(See steps 2 to 4 on pages EM-28, 29)
11. INSTALL DISTRIBUTOR (See page IG-10)
12. INSTALL WATER PUMP PULLEY AND FLUID
COUPLING WITH FAN
13. INSTALL PS BRACKETS
14. REFILL WITH ENGINE COOLANT
Alternator to water pump -
New belt
55 — 65 kg
Used belt
kg
30 — 45
PS pump to crankshaft -
New belt
45 — 55 kg
Used belt
kg
20 — 35
than 5 minutes on a running engine.
running engine for 5 minutes or more.
pulley groove.
minutes and then recheck the deflection (tension).
U
EM
-39
R
