Summary of Contents for Joerns EasyCare Bed ECS

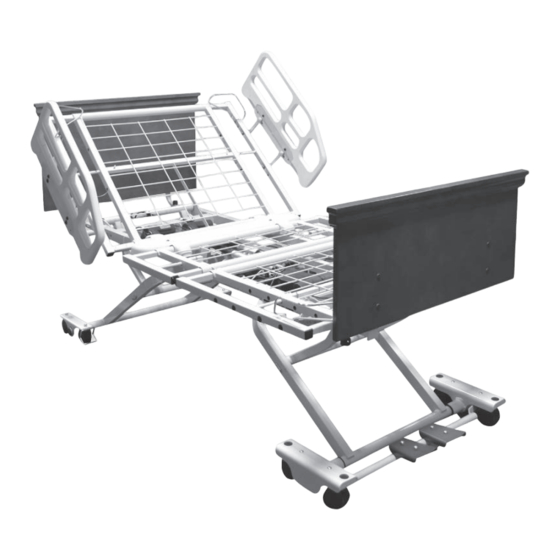

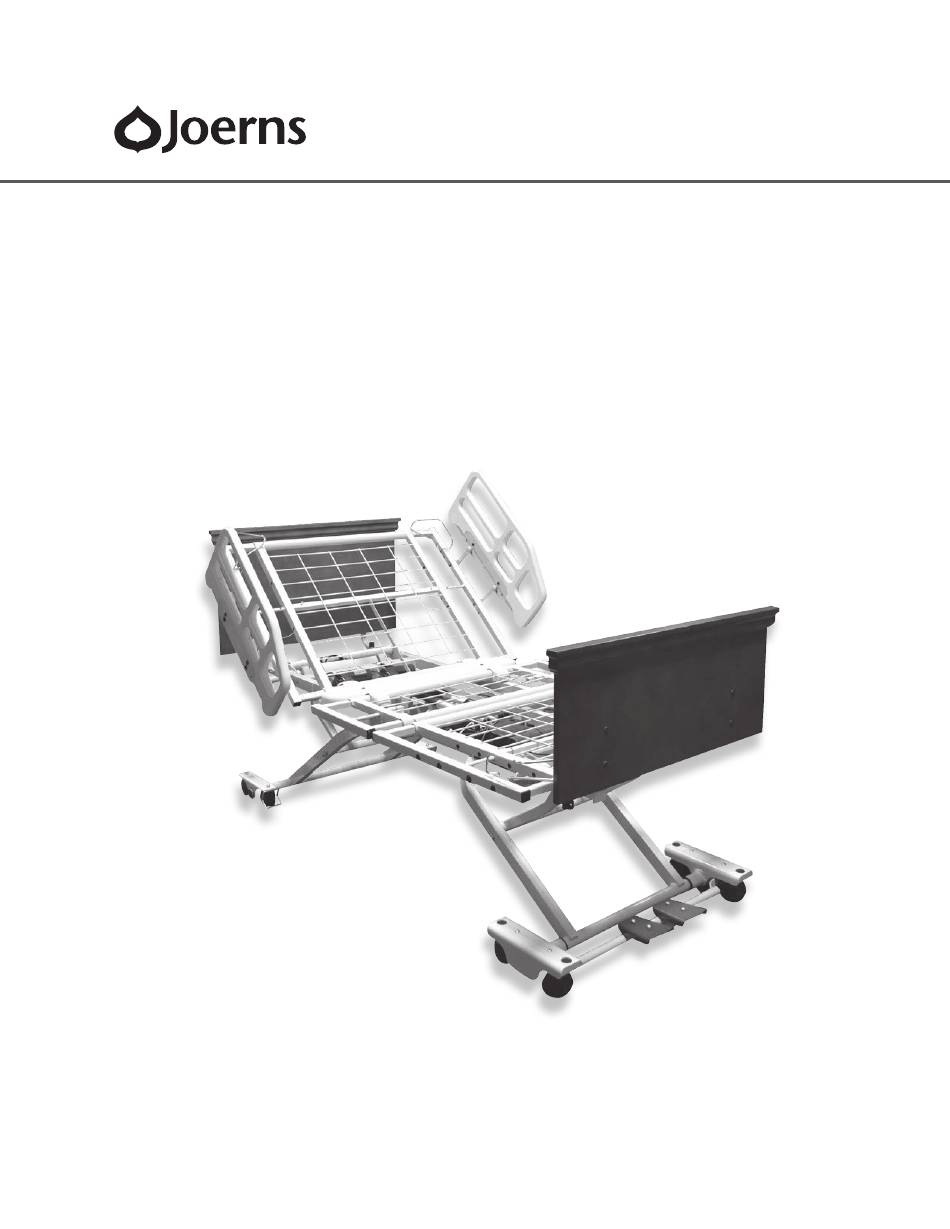

- Page 1 User-Service Manual Joerns Bed Frames ® EasyCare ® To avoid injury, read user’s manual before using.
-
Page 2: Important Precautions
Note: In case of unexpected movement, instructions. Gap between head/foot panel and assist unplug bed from any outlet. device must be small enough or large enough to prevent resident/patient from getting his/her head or © 2017 Joerns Healthcare • 6110158 RevD • 17-2540... - Page 3 Warning: Possible Injury Or Death. Do not use any replacement parts not manufactured, marketed or Caution: This device complies with EMC requirements provided by Joerns Healthcare on any Joerns bed. Use of IEC 60601-1-2. Radio transmitting equipment, of unapproved replacement parts may result in injury or cellular phones or similar electronic devices, used in death.
-
Page 4: Table Of Contents
That is why Joerns offers a wide array of compliance options. We assist customers in selecting compliant That focus includes not only the challenge of achieving... -
Page 5: Features & Specifications
With 200 lbs ..........52 seconds Class II Equipment Tolerance ± 3 seconds Safe Working Load ......500 lbs. (227 kg) Protective Earth (ground) Maximum Patient Weight ....450 lbs. (204 kg) © 2017 Joerns Healthcare • 6110158 RevD • 17-2540... -
Page 6: Assembly
(Figure 6). 5. Press the mounting bracket against the bed frame and tighten the four panel mounting screws; right and left side. Figure 5 Figure 1 Figure 6 © 2017 Joerns Healthcare • 6110158 RevD • 17-2540... - Page 7 3. Position and insert the mattress stops in the holes provided (Figure 10). Reinstall the screws removed in step 2. 4. Repeat at each corner of the head end of the Figure 10 mattress support platform. © 2017 Joerns Healthcare • 6110158 RevD • 17-2540...
-
Page 8: Operation
® standard equipment. There are two sockets at head end of bed and two at foot end (Figures 11 and 12). The IV sockets are compatible with Joerns IV poles IV Socket and most ½" IV poles. Installation of Staff Control Panel... - Page 9 8. Push button to lower both head Trendelenburg and knee to flat and place bed 12. Push button to toggle at transfer height under bed light on and off Figure 20 (optional) © 2017 Joerns Healthcare • 6110158 RevD • 17-2540...
-
Page 10: Bed Transport
Position Position Casters Roll in Low only Any Height Head & Low Lock (casters must Foot (in Low System be locked in position only) Low) Figure 25 Figure 23 Figure 26 © 2017 Joerns Healthcare • 6110158 RevD • 17-2540... -
Page 11: Care-Fit Integrated Width (Option)
The EasyCare Care-Fit Integrated Width Expansion option allows the mattress support platform (MSP) to be set at a bed width of 35", 39", or 42". If your Joerns bed has been configured with the Care-Fit option the following steps will provide adequate instruction on the operation of this feature. -
Page 12: Servicing
1. Foot Leg Hi/Low Actuator (red) 2. Back Actuator (yellow) 3. Head Leg Hi/Low Actuator (orange) 4. Knee Actuator (blue) 5. Control Harness (green) 6. Emergency Battery Pack 7. AC Power Figure 37 © 2017 Joerns Healthcare • 6110158 RevD • 17-2540... - Page 13 8. Replace zip-ties along with cables in their original position and routing to the control box. If this step is not followed, damage to the cables or electric shock may result. Figure 38 © 2017 Joerns Healthcare • 6110158 RevD • 17-2540...
-
Page 14: Troubleshooting
Joerns Healthcare Technical Support, maintenance required will be dictated by your bed’s which you may contact at 800.826.0270. usage and care – a thorough inspection should be conducted monthly. © 2017 Joerns Healthcare • 6110158 RevD • 17-2540... -
Page 15: End Of Life Disposal
* Head / Foot Board ~ 14.9 lbs (6.76 kg) * Mattress ~ 24.0 lbs (10.89 kg) * Weights may vary dependent upon model, material, and size. © 2017 Joerns Healthcare • 6110158 RevD • 17-2540... - Page 16 Operate all bed functions through their full ranges to ensure that items attached to the Holder have proper clearance and are not pinched or caught. Figure 41 © 2017 Joerns Healthcare • 6110158 RevD • 17-2540...
-
Page 17: Battery Back-Up
Socket at the bed foot end (Figure 42). Depending on the Battery condition and load on the bed, one battery can typically raise and lower the bed, constituting one cycle, 20 to 25 times on single, full charge. © 2017 Joerns Healthcare • 6110158 RevD • 17-2540... -
Page 18: Warranty
Joerns Healthcare Warranty Program for Joerns EasyCare® bed, Model ECS ® Joerns EasyCare bed is guaranteed for a period of Joerns Healthcare’s obligation under this warranty is four years from the date of delivery, against defects limited to supplying replacement parts, servicing or...
