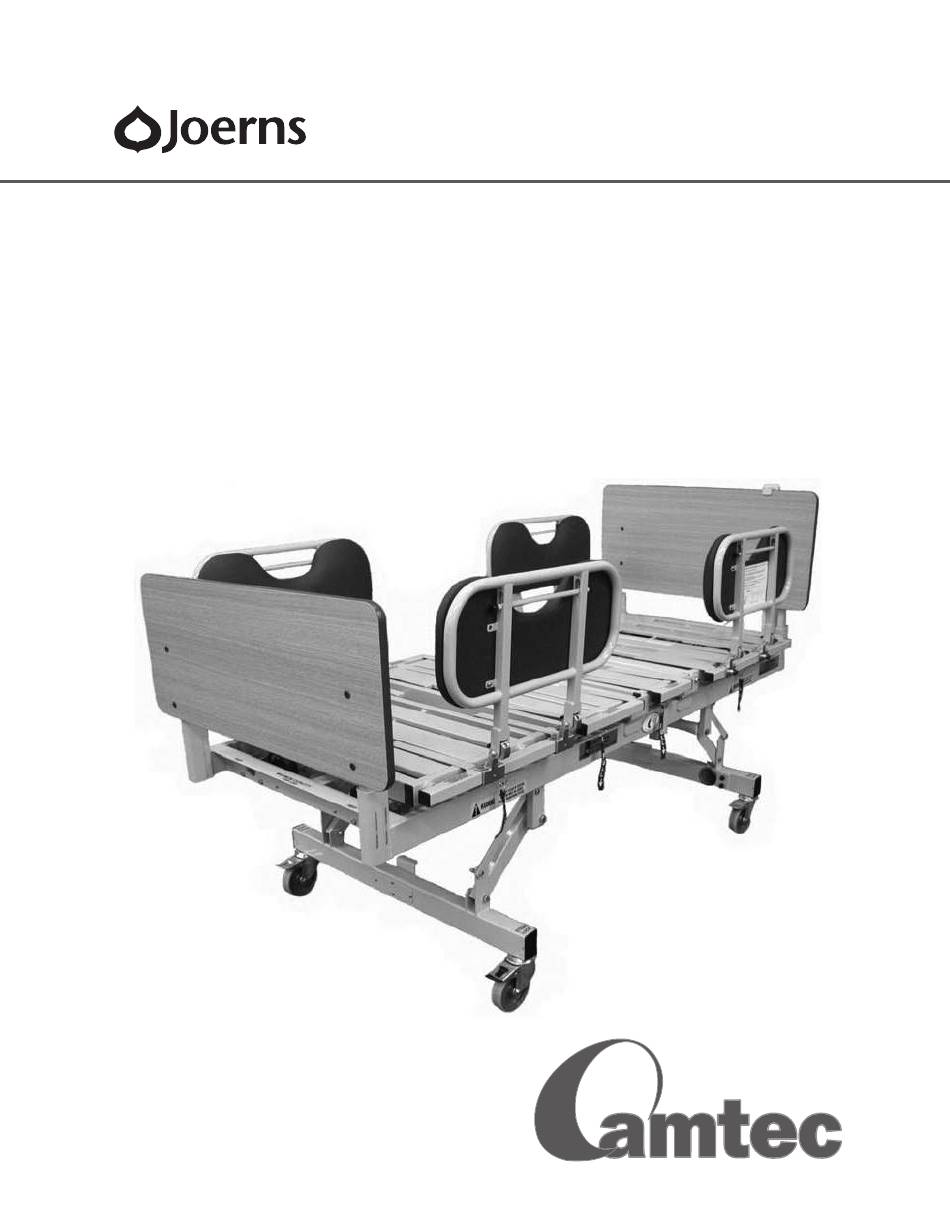

- Page 1 User-Service Manual Joerns Camtec Series Bed Frames ® RC 750 Bed Expandable Split-frame Bariatric Bed Model RC750 To avoid injury, read user’s manual before using. The Caregiver’s Choice...
-
Page 2: Important Precautions
Failure to do so the foot end should be in the steer position. Head end could result in injury. should be free to move. © 2016 Joerns Healthcare • 6110283 RevB • 16-2016... -
Page 3: Entrapment Information
Notice: Make sure the power cord is unplugged from the power outlet prior to disconnecting/connecting any That is why Joerns offers a wide array of compliance foot panel cables. Failure to ensure bed is not powered options. We assist customers in selecting compliant... -
Page 4: Table Of Contents
Warranty ............................22 Introduction The Joerns Camtec Series RC 750 Bed has been designed primarily for use in hospitals and other institutions to support patients whose weight exceeds the limit of conventional beds and who may require special positioning. The frame has a long history as the Camtec model 4480-0 supporting care of some of the most challenging patients presented within the care continuum. -
Page 5: Specifications
(3) total lock and (1) steer lock Tread Guards ... Non-marring Options ........Trapeze Mattress Foot Extension Side rails, foot end Pads or Composite Insert for Side Rails Composite Head/Foot Panels © 2016 Joerns Healthcare • 6110283 RevB • 16-2016... -
Page 6: Assembly
13. Install the headboard posts in the inward most sockets provided at the head end with the board closest to the mattress. The power cord hanger should be on the side away from the mattress. Figure 1 © 2016 Joerns Healthcare • 6110283 RevB • 16-2016... -
Page 7: Operation
Never lock casters at both ends at the same time, when raising or lowering the bed, as permanent damage to the bed may result. All casters should be locked during ingress or egress of patient. © 2016 Joerns Healthcare • 6110283 RevB • 16-2016... -
Page 8: Cleaning And Maintenance
1. Using standard cleaning procedures, wipe down the frame of the bed. Be sure to wear appropriate protection for the type of materials being used. 2. Use cleaning detergents sparingly around the pendant controller, electronic controller and the motors. © 2016 Joerns Healthcare • 6110283 RevB • 16-2016... -
Page 9: Troubleshooting
IF ANY DISCREPANCIES ARE NOTED DURING INSPECTION, THEY MUST BE CORRECTED BEFORE CONTINUED USE OF THE BED. Joerns Healthcare Technical Support can provide additional assistance to repair or troubleshoot any problems. Major service and repair must only be performed by authorized Joerns Healthcare Technical Support, which you may contact Troubleshooting... -
Page 10: Customer Maintenance Checklist
21 Check the Top Expansion (If Applicable) of the Mattress during operation at: Head Section Right ________ Left ________ Center Section Right ________ Left ________ Upper Knee Gatch Right ________ Left ________ Lower Knee Gatch Right ________ Left ________ © 2016 Joerns Healthcare • 6110283 RevB • 16-2016... - Page 11 24 If bed is a Scale Bed, check that the scale functions are operating properly (if applicable) 25 Check that all scale/exit alarm connections are secure (if applicable) 26 Test bed exit alarm (if applicable) Comments Inspector Signature_______________________________________________ Date_________________________ © 2016 Joerns Healthcare • 6110283 RevB • 16-2016...
- Page 12 Joerns® Camtec Series Bed Frames RC 750 Bed Appendix A - Wiring Diagram © 2016 Joerns Healthcare • 6110283 RevB • 16-2016...
- Page 13 Joerns® Camtec Series Bed Frames RC 750 Bed Appendix A - Main Frame Assembly © 2016 Joerns Healthcare • 6110283 RevB • 16-2016...
- Page 14 Joerns® Camtec Series Bed Frames RC 750 Bed Appendix A - Mattress Support Assembly © 2016 Joerns Healthcare • 6110283 RevB • 16-2016...
- Page 15 Joerns® Camtec Series Bed Frames RC 750 Bed Appendix A - Caster Base Assembly © 2016 Joerns Healthcare • 6110283 RevB • 16-2016...
- Page 16 Joerns® Camtec Series Bed Frames RC 750 Bed Appendix A - Label Location © 2016 Joerns Healthcare • 6110283 RevB • 16-2016...
- Page 17 Joerns® Camtec Series Bed Frames RC 750 Bed Appendix A - Labels Used on Bed © 2016 Joerns Healthcare • 6110283 RevB • 16-2016...
- Page 18 Screw #10-32 x 5/16 Pan Head Phillips 903152-0 Bushing, ⅝ x 1⅛ 903810-0 Cable, Knee Gatch Motor, Split to Controller 904179-0 Cordset 903180-0 Cable Clamp, 5/16 Nylon 203060-0GY Weldment, Lower Knee Gatch 203057-0GY Weldment, Upper Knee Gatch © 2016 Joerns Healthcare • 6110283 RevB • 16-2016...
- Page 19 904369-0 Bushing, ½" x ⅝" x ⅞" LG 903155-0 Bolt, Hex, ½-13 x 2½" 104575-0GY Leg Connector Link 901237-0 Cap 2" x 3" 901233-0 Shoulder Bolt, LC ½" DX 1¼" Long © 2016 Joerns Healthcare • 6110283 RevB • 16-2016...
- Page 20 903491-0 Label, Trapeze Socket 903500-0 Label, Pendant Cord Hanger 903502-0 Label, Warning Keep Feet 903505-0 Label, In Case of Power Failure 903507-0 Label, 2" Gap 903503-0 Label, Caster Cap, Total Lock © 2016 Joerns Healthcare • 6110283 RevB • 16-2016...
- Page 21 Bolt, Hex ⅜-16 x ⅝" LG 12470022 TIP, ¼" Rod, Caplug (Old Part Number: 900100-0) 903605-0 Washer, Rubber, ½" Screw Size 106739-0GY Bracket, 3 Function Controller Mounting 11015760 Bracket, Pendant Holder © 2016 Joerns Healthcare • 6110283 RevB • 16-2016...
-
Page 22: Warranty
Most parts requested can be shipped next day air at the customer’s expense. Any alteration, modification, or repair unless performed by or authorized in writing by Joerns Healthcare, will Should a technician be required, one will be provided void this warranty.
