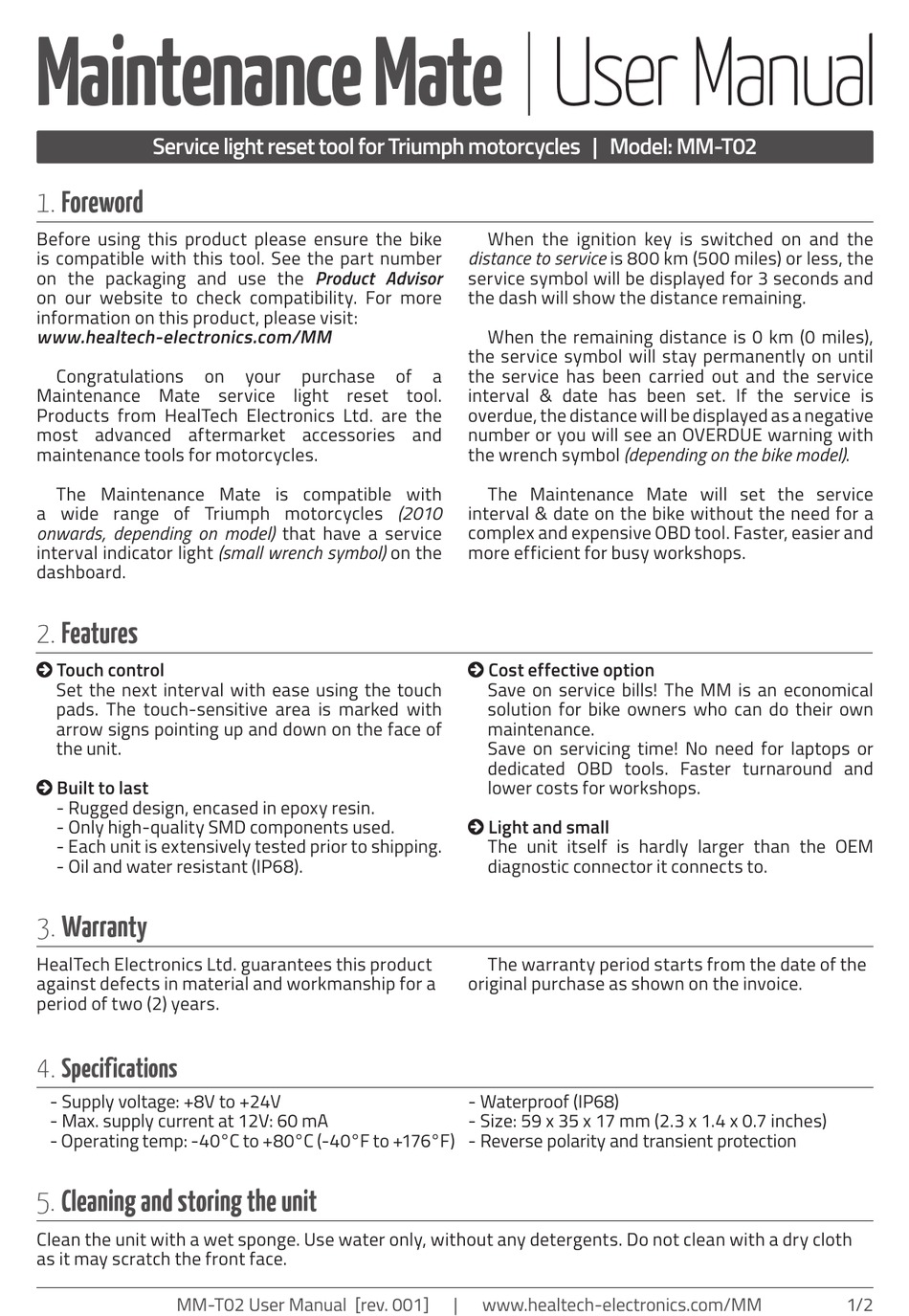

HealTech Electronics MM-T02 User Manual

Maintenance Mate
Service light reset tool for Triumph motorcycles | Model: MM-T02

1. Foreword

Before using this product please ensure the bike
is compatible with this tool. See the part number
on the packaging and use the Product Advisor
on our website to check compatibility. For more
information on this product, please visit:
www.healtech-electronics.com/MM
Congratulations on
Maintenance Mate service light reset tool.
Products from HealTech Electronics Ltd. are the
most advanced aftermarket accessories and
maintenance tools for motorcycles.
The Maintenance Mate is compatible with
a wide range of Triumph motorcycles (2010
onwards, depending on model) that have a service
interval indicator light (small wrench symbol) on the
dashboard.

2. Features

 Touch control
Set the next interval with ease using the touch
pads. The touch-sensitive area is marked with
arrow signs pointing up and down on the face of
the unit.
 Built to last
- Rugged design, encased in epoxy resin.
- Only high-quality SMD components used.
- Each unit is extensively tested prior to shipping.
- Oil and water resistant (IP68).

3. Warranty

HealTech Electronics Ltd. guarantees this product
against defects in material and workmanship for a
period of two (2) years.
4.
Specifications
- Supply voltage: +8V to +24V
- Max. supply current at 12V: 60 mA
- Operating temp: -40°C to +80°C (-40°F to +176°F)

5. Cleaning and storing the unit

Clean the unit with a wet sponge. Use water only, without any detergents. Do not clean with a dry cloth
as it may scratch the front face.
MM-T02 User Manual [rev. 001]
your purchase of
User Manual
When the ignition key is switched on and the
distance to service is 800 km (500 miles) or less, the
service symbol will be displayed for 3 seconds and
the dash will show the distance remaining.
When the remaining distance is 0 km (0 miles),
the service symbol will stay permanently on until
a the service has been carried out and the service
interval & date has been set. If the service is
overdue, the distance will be displayed as a negative
number or you will see an OVERDUE warning with
the wrench symbol (depending on the bike model).
The Maintenance Mate will set the service
interval & date on the bike without the need for a
complex and expensive OBD tool. Faster, easier and
more efficient for busy workshops.
 Cost effective option
Save on service bills! The MM is an economical
solution for bike owners who can do their own
maintenance.
Save on servicing time! No need for laptops or
dedicated OBD tools. Faster turnaround and
lower costs for workshops.
 Light and small
The unit itself is hardly larger than the OEM
diagnostic connector it connects to.
The warranty period starts from the date of the
original purchase as shown on the invoice.
- Waterproof (IP68)
- Size: 59 x 35 x 17 mm (2.3 x 1.4 x 0.7 inches)
- Reverse polarity and transient protection
| www.healtech-electronics.com/MM 1/2
