ASSEMBLY INSTRUCTIONS
RiverRidge
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children. During assembly
children should be kept away from the product due to possible risk of injury.
WARNING
Young children can be seriously injured or killed if furniture tips over. Don't use
this item for a TV stand or place heavy objects on top of item. Always use
angle-braces or anchors to secure furniture to the wall.
®

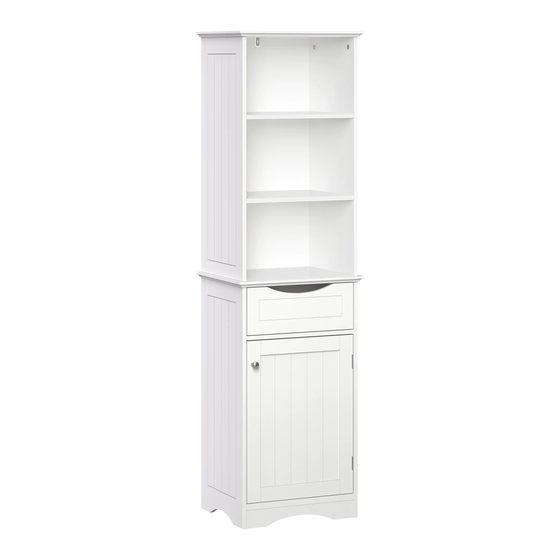

Ashland Tall Cabinet
ITEM#: 06-082
ITEM#: 06-083
ITEM#: 06-124
ADULT ASSEMBLY REQUIRED
SEE FULL WARNING ON PAGE 2
White
Gray
Espresso

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ashland Tall Cabinet 06-082 and is the answer not in the manual?

Questions and answers

Related Manuals for RiverRidge Ashland Tall Cabinet 06-082

Summary of Contents for RiverRidge Ashland Tall Cabinet 06-082

  • Page 1 ASSEMBLY INSTRUCTIONS RiverRidge ® Ashland Tall Cabinet ITEM#: 06-082 White ITEM#: 06-083 Gray ITEM#: 06-124 Espresso ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to possible risk of injury.
  • Page 2 THIS CABINET WILL HOLD UP TO 20 POUNDS PER SHELF AND 10 POUNDS PER DRAWER OR A TOTAL OF 130 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 20 POUNDS OR THE DRAWER WITH MORE THAN 10 POUNDS. OVERLOADING THE CABINET MAY CAUSE DAMAGE TO THE CABINET OR CAUSE SERIOUS INJURY OR DEATH.

  • Page 3: Parts List

    PARTS LIST DESCRIPTION Top Board Lower Left Side Panel Lower Right Side Panel Lower Back Panel Upper Cross Bar Adjustable Shelf Bottom Board Decorative Panel Door Drawer Back Board 2PCS Drawer Side Panel Drawer Bottom Board Drawer Front Board Upper Left Side Panel Upper Right Side Panel 2PCS Fixed Shelf...
  • Page 4 PARTS DESCRIPTION 18PCS Cam Bolt 18PCS Cam Lock 26PCS Wood Dowel 14PCS Screw (3x10mm) 2PCS Drawer Holder 8PCS Screw (3.5x25mm) 24PCS Screw (2.5x12mm) 2PCS Drawer Plastic Stopper 2PCS Metal Hinge Knob Machine Screw (4x18mm) Magnet Plate Magnet 2PCS Screw (3x14mm) 4PCS Shelf Holder Adjustable Anchor Bracket...
  • Page 5 STEP 1 1. Screw 2 cam bolts (A) in cam bolt holes on upper left side panel (14). 2. Screw 2 cam bolts (A) in cam bolt holes on upper right side panel (15). STEP 2 1. Insert 8 wood dowels (C) into wood dowel holes on upper left side panel (14) and upper right side panel (15).
  • Page 6 STEP 3 1. Insert 1 screw (Q) through hole on adjustable anchor bracket (P), then tighten to top board (1). 2. Screw 4 cam bolts (A) into cam bolt holes on top board (1). 3. Insert 4 wood dowels (C) into wood dowel holes on top board (1). 4.
  • Page 7 STEP 5 1. Screw 3 cam bolts (A) into cam bolt holes on lower left side panel (2). 2. Attach drawer holder (E) to lower left side panel (2) by inserting 2 screws (D) through holes on drawer holder (E) then tighten to lower left side panel (2). 3.
  • Page 8 STEP 7 1. Insert 4 wood dowels (C) into wood dowel holes on middle connection board (18). 2. Attach upper pre-assembled unit to lower pre-assembled unit by inserting wood dowels (C) into wood dowel holes and inserting cam bolts (A) into cam lock holes on end of lower side panels (2) and (3).
  • Page 9 STEP 9 1. Attach 1 drawer side panel (11) to drawer back board (10) by inserting 2 screws (F) through holes on drawer side panel (11), then tighten to drawer back board (10). 2. Repeat above step to assemble another drawer side panel (11) to drawer back board (10). 3.
  • Page 10 STEP 10 1. Attach magnet plate (L) to door (9) by inserting 2 screws (D) through holes on magnet plate (L), then tighten to door (9). 2. Attach 2 metal hinges (I) to door (9) by inserting 4 screws (D) through holes on metal hinges (I), then tighten to door (9).
  • Page 11 STEP 11 Option #1: Securing to Drywall 1. Position cabinet against wall in desired location. Using a pencil, make small mark on wall through hole on bracket (P). Move cabinet away from wall and screw 1 plastic anchor (R) into wall on pencil mark.

  • Page 12: Care Instructions

    ATTENTION ADULTS: Cabinet should be checked periodically for damage or loose screws/parts. Take appropriate action necessary to correct hazards such as tightening of screws and taking any damaged parts away from children. WARNING Please make sure your item is secured to the wall, per assembly instructions. CARE INSTRUCTIONS: Wipe clean with a water dampened cloth.
  • Page 13 Thank you for purchasing this RiverRidge Home item. We hope you ® enjoy it and consider purchasing other RiverRidge items. To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com. Only valid in the United States.

This manual is also suitable for:

Ashland tall cabinet 06-083Ashland tall cabinet 06-124
