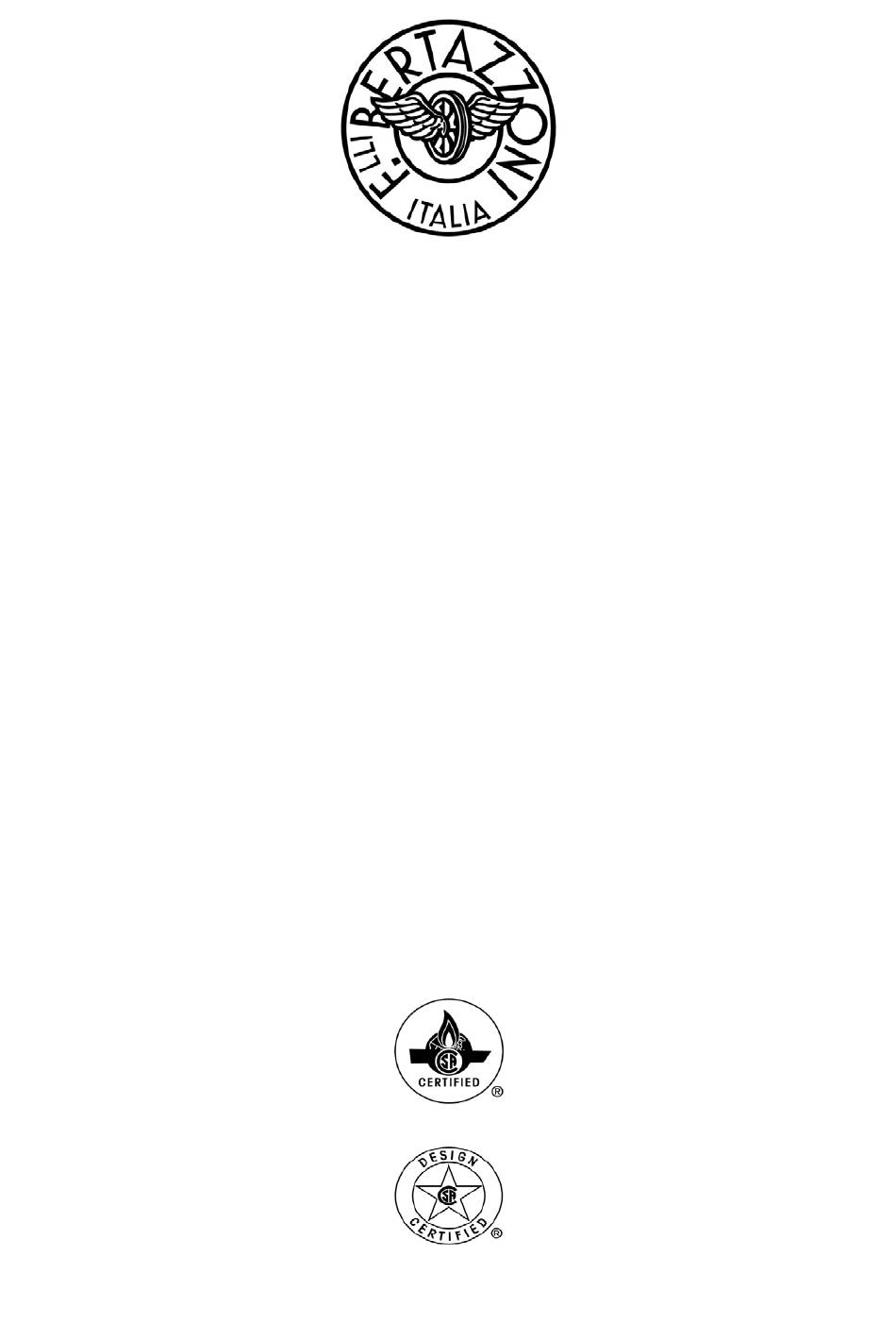

INSTALLATION, USE & CARE MANUAL
FREESTANDING GAS RANGES
Models PRO365GASX
Models PRO366GAS X
Models PRO366GASAR
Models PRO366GASBI
Models PRO366GASNE
Models PRO366GASRO
Models PRO366GASVI
Models PRO366GASGI
[M3W0GNU7X5AUA]
[M3Y0GNU7X5AUA]
[M3Y0GNU7S5AUA]
[M3Y0GNU7W5AUA]
[M3Y0GNU7N5AUA]
[M3Y0GNU7R5AUA]
[M3Y0GNU7L5AUA]
[M3Y0GNU7I5AUA]
1
310809
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bertazzoni PRO366GASAR
Summary of Contents for Bertazzoni PRO366GASAR
- Page 1 INSTALLATION, USE & CARE MANUAL FREESTANDING GAS RANGES Models PRO365GASX [M3W0GNU7X5AUA] Models PRO366GAS X [M3Y0GNU7X5AUA] Models PRO366GASAR [M3Y0GNU7S5AUA] Models PRO366GASBI [M3Y0GNU7W5AUA] Models PRO366GASNE [M3Y0GNU7N5AUA] Models PRO366GASRO [M3Y0GNU7R5AUA] Models PRO366GASVI [M3Y0GNU7L5AUA] Models PRO366GASGI [M3Y0GNU7I5AUA] ...
- Page 2 From the desk of the President Dear new owner of a Bertazzoni product, I want to thank you for choosing one of our beautiful PRO ranges. We know that you have many brands and products to choose from and we are thrilled that you have decided to take onw of your products into your home. We take as much pride in making our ranges as we hope you will in owning them. My family started manufacturing cooking appliances in 1882. Each of BERTAZZONI SpA our products is a blend of Italian design finess and Via Palazzina 8 superior appliance technology. While we can not 42016 Guastalla RE replace your unique talent at cooking delicious ITALY recipes for yourself, your family and your friends, we try our best to make cooking easier, more effective and more fun. WWW.BERTAZZONI‐ITALIA.COM Our appliances are designed according to the strictest safety and performance standard for the European and the North American market. We follow the most advanced manufacturing philosophy. Each appliance leaves the factory after thorough quality inspection and testing. Our distributors and our service partners are ready to answer any questions you may have regarding how to install, use and care for your Bertazzoni product. This manual will help you learn to use the product ...
-
Page 3: Table Of Contents
TABLE OF CONTENTS WARRANTY AND SERVICE ............................ 4 IMPORTANT SAFETY INFORMATION ........................ 5 PRODUCT SPECIFICATIONS ............................ 6 INSTALLATION BEFORE INSTALLATION ............................ 7 INSTALLING THE LEGS .............................. 8 INSTALLING THE WORKTOP FRONTGUARD (OPTIONAL) ................... 8 INSTALLING THE BACKGUARD .......................... 9 INSTALLING THE ANTI‐TIP STABILLTY DEVICE ...................... 10 INSTALLATION REQUIREMENTS .......................... 10 INSTALLATION ADJACENT TO KITCHEN CABINETS .................... 11 EXHAUST HOOD INSTALLATION .......................... 11 ELECTRICAL CONNECTION ............................ 12 WIRING DIAGRAM ... -
Page 4: Warranty And Service
WARRANTY AND SERVICE All Bertazzoni products carry a 2 year parts and labor warranty. Service on all Bertazzoni products shall be carried out by factory‐trained professionals only. For warranty service please contact Customer Service at the numbers indicated below. CUSTOMER SERVICE English/spanish hotline (866) 905‐0010 French (800) 561‐7625 Fax (714) 428‐0040 Email BERTAZZONIHELP@SERVICEPOWER.COM Mailing address SERVICEPOWER 1503 South Coast drive Suite 320 Costa Mesa CA 92626 REPLACEMENT PARTS Only Bertazzoni replacement parts may be used in performing service on the appliance. Replacement parts are available from factory authorized parts distributors. AP Wagner PHONE FAX 716 961 7131 716 856 4779 Reliable Parts PHONE ... -
Page 5: Important Safety Information
WARNING! IMPORTANT SAFETY INFORMATION Read this instruction booklet before installing PLEASE READ AND FOLLOW THESE IMPORTANT and using the appliance. INSTRUCTIONS FOR THE SAFETY OF YOUR HOME The manufacturer will not be responsible for AND OF THE PEOPLE LIVING IN IT. any damage to property or to persons caused by Save this Manual for local electrical inspector’s incorrect installation or improper use of the use. appliance. Read and save these instructions for future The manufacturer reserves the right to make reference. changes to its products when considered necessary and useful, without affecting the Observe all governing codes, ordinances and essential safety and operating characteristics. regulations. This appliance has been designed for non‐ WARNING! professional, domestic use only. If the information in this manual is not followed ... -
Page 6: Product Specifications
PRODUCT SPECIFICATIONS Dimensions (insert drawings front, side and back Weight Burner power Natural gas LP gas 3750 BTU/h 3750 BTU/h Auxiliary 6000 BTU/h 6300 BTU/h Semi‐rapid 10400 BTU/h 11400 BTU/h Rapid 2730 BTU/h 2900 BTU/h Dual burner (inner) 15000 BTU/h 16400 BTU/h Dual burner ( outer) Oven 16000 BTU/h 16000 BTU/h broiler 14500 BTU/h 14500 BTU/h ... -
Page 7: Before Installation
BEFORE INSTALLATION WARNING! This appliance shall only be installed by an authorized professional. Do not use aerosol sprays in the vicinity of this appliance while it is in operation This appliance shall be installed in accordance with the manufacturer’s installation instructions. ROOM VENTILATION: An exhaust fan may be used with the appliance; in each case it shall be This ... -
Page 8: Installing The Legs
INSTALLING THE LEGS INSTALLING THE WORKTOP FRONTGUARD Bertazzoni ranges must be used only with the legs properly installed. To increase the clearance between the front edge of the worktop and the burners it is possible to Four height‐adjustable legs are shipped with the install the worktop frontguard shipped with the range in the polysterene container situated over appliance. the appliance. To install the front guard, hold it with the pointed Before installing the legs, position the appliance edges looking up. Align the edges of the ... -
Page 9: Installing The Backguard
2 lateral screws from the bottom. INSTALLING THE BACKGUARD The backguard must be installed prior to operation of the appliance for appropriate ventilation of the oven compartment. The supplied backguard is a 2‐part assembly. The box also contains a set of metal screws for securing the backguard to the worktop. Position the back part of the backguard and secure it to the worktop tightening 4 screws from the bottom. Disassemble the backguard and position the front part on the worktop. Align the screw holes with the ... -
Page 10: Installation Requirements
INSTALLING THE ANTI‐TIP STABILlTY INSTALLATION REQUIREMENTS DEVICE The anti‐tip bracket shipped with the range must ELECTRICAL be properly secured to the rear wall as shown in the pircture below. A properly‐grounded horizontally‐ mounted The height of the bracket from the floor must be electrical receptacle should be installed no higher determined after the range legs have been than 3" (7.6 cm) above the floor, no less than 2” adjusted to the desired height and after the (5 cm) and no more than 8” (20,3 cm) from the range has been leveled. left side (facing product). Measure the distance from the floor to the Check all local code requirements. bottom of the anti‐tip bracket receptacle on the back of the appliance. GAS Position the two anti‐tip brackets on the wall at the desired height plus 1/8" (0.32 cm). The An agency‐approved, properly‐sized manual shut‐ brackets must be placed at 2”5/16 (6,0 cm) from off valve should be installed no higher than 3" the side of the range. The distance between the (7.6 cm) above the floor and no less than 2” (5 two bracket is 31”1/4 (79.3 cm). cm) and no more than 8” (20.3 cm) from the right Secure the brackets to the wall with appropriate side (facing product). hardware. To connect gas between shut‐off valve and Slide the range against the wall until the brackets regulator, use agency‐approved, properly sized are fully inserted into their receptacles on the flexible or rigid pipe. Check all local code back of the range. ... -
Page 11: Exhaust Hood Installation
EXHAUST HOOD INSTALLATION INSTALLATION ADJACENT TO KITCHEN CABINETS This range will best perform when used with PRO line Bertazzoni exhaust hoods. These hoods have This range may be installed directly adjacent to been designed to work in conjunction with the existing countertop high cabinets (36" or 91.5 cm Bertazzoni range and have the same finish for a from the floor). perfect look. For the best look, the worktop should be level For maximum performance, the height of the with the cabinet countertop. This can be bottom of the hood from the worktop should be accomplished by raising the unit using the between 25 1/2" (65 cm) and 31 1/2" (80 cm). ... -
Page 12: Electrical Connection
WARNING! ELECTRICAL CONNECTION ELECTRICAL SHOCK HAZARD This unit is manufactured for a polarized, Disconnect electrical power at the circuit grounded 120 volt/60 Hz, 16 amp system. breaker box or fuse box before installing the Electric power consumption is about 300 W. appliance. The minimum of 102 VAC is required for proper Provide appropriate ground for the appliance. operation of gas ignition systems. Use copper conductors only. The circuit must be grounded and properly Failure to follow these instructions could result polarized. in serious injury or death The unit is equipped witth a SJT power cord. In ... -
Page 13: Gas Connection
MANUAL SHUT‐OFF VALVE GAS CONNECTION THIS VALVE IS NOT SHIPPED WITH THE APPLIANC All gas connections must comply with national AND MUST BE SUPPLIED BY THE INSTALLER. and local codes. The gas supply line (service) The manual shut‐off valve must be installed in must be the same size or greater than the inlet the gas service line between the gas hook‐up on line of the appliance. This range uses a 1/2" NPT the wall and the appliance inlet, in a position inlet (see drawing below for details of gas where it can be reached quickly in the event of an connection). On all pipe joints use appropriate emergency. sealant resistant to gas. In Massachusetts: A 'T' handle type manual gas This range can be used with Natural or valve must be installed in the gas supply line to LP/Propane gas. The range is shipped from the this appliance. factory for use with natural gas. For LP/propane household installation, the appliance must be converted by the dealer, by a FLEXIBLE CONNECTIONS factory‐trained professional or by a qualified In case of installation with flexible couplings licensed plumber or gas service company. and/or quick‐disconnect fittings, the installer Gas conversion is important for safe and effective ... -
Page 14: Step 1: Pressure Regulator
PRESSURE REGULATOR Since service pressure may fluctuate with local demand, every gas cooking appliance must be equipped with a pressure regulator on the incoming service line for safe and efficient operation. The pressure regulator shipped with the appliance has has two female threads ½” NPT. The regulator shall be installed properly in order to be accessible when the appliance is installed in its final position. Manifold pressure should be checked with a manometer and comply with the values indicated below: Natural gas 4.0" W.c.P. LP/Propane 11.0" W.C.P. Incoming line pressure upstream from the regulator must be 1" W.c.P. higher than the manifold pressure in order to check the regulator. The regulator used on this range can withstand a maximum input pressure of 1/2 PSI (14.0" W.c.P.) If the line pressure exceeds that amount, a step‐ down regulator is required. The appliance, its individual shut‐off valve, and the pressure regulator must be disconnected from the gas line during any pressure testing of that ... -
Page 15: Step 2: Surface Burners
STEP 1: PRESSURE REGULATOR GAS CONVERSION The pressure regulator supplied with the appliance is a convertible type pressure regulator WARNING! for use with Natural Gas at a nominal outlet Before carrying out this operation, disconnect pressure of 4” w.c. or LP gas at a nominal outlet the appliance from gas and electricity. pressure of 11” w.c. and it is pre‐arranged from the factory to operate with one of these Gas conversion shall be conducted by a factory‐ gas/pressure as indicated in the labels affixed on trained professional. the appliance, package and Instruction booklet. Call the customer service hotline to identify a To convert the regulator for use with other liquid factory‐trained professional near your home. propane LP gas: The gas conversion procedure for this range 1. Unscrew by hand the upper cap of the includes 6 steps: regulator, remove the white plastic 1. Pressure regulator attachment from the cap, reverse its direction and screw it again firmly against the 2. Surface burners cap. The white plastic attachment has arrows 3. Main oven burner indicating the position for natural gas (NAT) ... - Page 16 STEP 3: MAIN OVEN BURNER STEP 2: SURFACE BURNERS To replace the nozzles of the main oven burner, To replace the nozzles of the surface burners, lift start by removing the bottom panel of the oven. up the burners and unscrew the nozzles shipped with the range using a 7 mm {sochet wrench). Replace nozzles using the conversion set supplied with the range or by a Bertazzoni authorized parts warehouse. Each nozzle has a number indicating its flow diameter printed on the body. Consult the table on page 20 for matching nozzles to burners. Loosen the screw located on the right side of the burner and pull out the burner from its support. ATTENTION: pay extra attention to avoid damage to the igniter and thermocouple. ...
- Page 17 Using a 7 mm [name of the tool] unscrew the nozzle. Replace the nozzle using the conversion Adjust the primary airflow by loosening the screw set supplied with the range or by a Bertazzoni P and setting the gap X in the Venturi cone to ½” authorized parts warehouse. Each nozzle has a (5/16” for natural gas). number indicating its flow diameter printed on ...
-
Page 18: Step 5: Visual Checks
STEP 5: VISUAL CHECKS Before reinstalling the bottom panel, the following visual check must be performed to ensure that the conversion has been carried out properly and without damage to other components of the range. A) CONNECTION OF THERMOCOUPLES TO THERMOSTAT The thermocouples for both broiler and main oven burner are connected to the same magnet. After performing all these visual checks, reinstall Tight gently the two connections alternating the bottom panel of the oven compartment and action on the two nuts. Do not fully tighten one proceed to setting the minimum for each thermocouple before having started to tighten burner. the second one. B) OVEN IGNITER AND THERMOCOUPLE POSITION The appropriate gap between the tip of the spark plug or thermocouple and the burner shall be approximately 1/8’’. The tip of the spark plug or thermocouple must fully overlap at least the first gas emission hole of the burner. ... -
Page 19: Step 6: Minimum Flame Adjustment
OVEN BURNER STEP 6: MINIMUM FLAME ADJUSTMENT 1. Set the oven temperature control knob to the MAXIMUM setting. WARNING! 2. Close the oven door and operate the oven for at least 10 minutes. These adjustments should be made only for use of the appliance with natural gas. For use with 3. Set the knob to the MINIMUM setting . liquid propane gas, the choke screw must be 4. Remove the knob. fully turned in a clockwise direction. 5. With a slotted screwdriver turn the choking screw (by‐pass screw at the left side of the SURFACE BURNERS thermostat bar) and, while observing the flame ... - Page 20 ModelS PRO366GGV(X,AR,BI,RO,VI,NE,GI)[M3Y0GNU7(X,S,W,R,L,N,I)5A] Burner Position Injector Gas Pressure Max Rate Min Rate By‐pass diam. [mm.] Type [i.w.c.] [BTU/h] [W] [BTU/h] [W] diam. [mm] Auxiliary Front R 0,92 NG 4" 3750 1098 900 264 Regulated 0,56 LP (Propane) 11” 3750 1098 900 264 0,29 Semi‐Rapid ...
-
Page 21: Installation Checkllst
INSTALLATION CHECKLlST FINAL PREPARATION 1. Is the range mounted on its legs? Before using the oven, remove any protective wrap from the stainless steel. 2. Is the backguard securely connected? All stainless steel body parts should be wiped with hot, soapy water and with a liquid stainless 3. Has the anti‐tip device been properly steel cleanser. installed? If buildup occurs, do not use steel wool, abrasive cloths, cleaners, or powders! If it is necessary to 4. Does the clearance from the side cabinets scrape stainless steel to remove encrusted comply with the manufacturers directions? materials, soak with hot, wet cloths to loosen the material, then use a wood or nylon scraper. Do 5. Is the electricity properly grounded? not use a metal knife, spatula, or any other metal tool to scrape stainless steel! Scratches are 6. Is the gas service line connected following almost impossible to remove. the directions of the manufacturer? Before using the oven for food preparation, wash the cavity thoroughly with a warm soap and 7. Have all the proper valves, stoppers and water solution to remove film residues and any dust or debris from installation, then rinse and gasket been installed between the range and wiped dry. the service line? 8. -
Page 22: User Manual
USER MANUAL SURFACE BURNER LAYOUT WARNING! Reflect names from brochure 1. Small Burner Do not to cover the holes inside the oven with 2. Medium burner aluminium foil. 3. Rapid burner Do not to cover the worktop with aluminium 4. Dual burner (Power burner) foil. Do not store any flammable object or objects Model under pressure in the storage compartment. PRO365GGVX [M3W0GNU7X5A] Keep the area of operation of the range free from combustible materials, gasoline and other flammable vapors and liquid. Do not store dangerous or flammable materials in the cabinets above the appliance. Do not use the appliance for space heating. Do not use aerosol sprays in the vicinity of the appliance while cooking. Do not sit or step on the oven door. Do not use oven compartment for storage. Model PRO366GGV(X,AR,BI,RO,VI,NE,GI) [M3Y0GNU7(X,S,W,R,L,N,I)5A] ... -
Page 23: Surface Cooking
SURFACE BURNER OPERATION SURFACE COOKING THERMOCOUPLE SAFETY VALVE SYMBOLS Each surface burner of a Bertazzoni range is equipped with a thermocouple safety device. The thermocouple opens the flow of gas to the burner only when hot. Should the flame go off, the thermocouple will immediately close the gas flow to the burner eliminating any risk to your ... -
Page 24: Tips For Using Burners Correctly
TIPS FOR USING BURNERS CORRECTLY TIPS FOR USING PANS CORRECTLY WARNING! ATTENTION! KEEP CHILDREN AT A SAFE DISTANCE FROM THE Always ensure that bottom and handles of pans APPLIANCE DURING OPERATION. do not protrude from the worktop. DO NOT ALLOW CHILDREN TO OPERATE THE When cooking with flammable fat such as oil, do APPLIANCE. not leave the range unattended. 1. Always check that the burner caps are Use pots of the appropriate size on each burner properly installed before operation. following the indication of the diagram below. Burner Recommended pan size inches (mm) Small 3½”‐51/2”(90 – 140) ... -
Page 25: Oven Cooking
OVEN SHELVES OVEN COOKING Bertazzoni ranges are equipped with commercial SYMBOLS grade shelves and a enamel cooking tray. Shelves are mounted on the appropriate guides situated on the sides of the oven compartment. Insert the shelf between top and bottom guide in any of the 5 positions available. Thermal bake selector Broiler selector To keep the oven as clean as possible, cook meat on the tray . When available, always follow recipe book ... -
Page 26: Gas Oven Operation
THERMOCOUPLE SAFETY VALVE spark for 5 seconds and will engage the Bertazzoni gas ovens are equipped with a termocouple. Then check that the oven burner thermocouple safety device and a thermostat to flame is and remain correctly lit, and clese the ... -
Page 27: Convection Cooking
CONVECTION COOKING COOKING WITH THE GAS BROILER Bertazzoni gas oven are equipped with a CONVECTION fan. WARNING In convection mode, the fan situated at the back Always keep the oven door open when lighting of the oven compartment creates horizontal the gas broiler. forced‐air circulation. The advantages of convection cooking are: The gas broiler is activated with the same control 1. uniform distribution of heat throughout the knob used for setting the oven temperature. oven cavity (meat no longer needs to be turned ... -
Page 28: Maintaining Your Range
Cleaning the burner caps: lift the burner caps from the burner heads and wash them in a warm COOLING FAN FAILURE soap and water solution. Dry thoroughly before using them again. Before reinstalling them on the Bertazzoni ranges are equipped with a cooling burner head, check that the gas flow holes are fan. The fan starts operating each time the oven not clogged with food residues or cleaning knob is on a position different from 0 (zero). ... - Page 29 opposite making with the same orientation that attachment.. To reassemble the door operate in has been disassembled, remembering that the reverse order. They are also easily off the side smooth part both in vista and the remains inside grids, by unscrewing the nuts that fasten the the screen‐printed glass oven door. Once you oven. ...
-
Page 30: Important Appliance Information
IMPORTANT APPLIANCE INFORMATION MODEL ______________________________________________________________ DATE INSTALLED _______________________________________________________________ DEALER _______________________________________________________________ _______________________________________________________________ INSTALLER _______________________________________________________________ ________________________________________________________________ SERVICER _______________________________________________________________ ... - Page 31 BERTAZZONI SpA Via Palazzina 8 42016 Guastalla RE ITALY WWW.BERTAZZONI.COM ...
