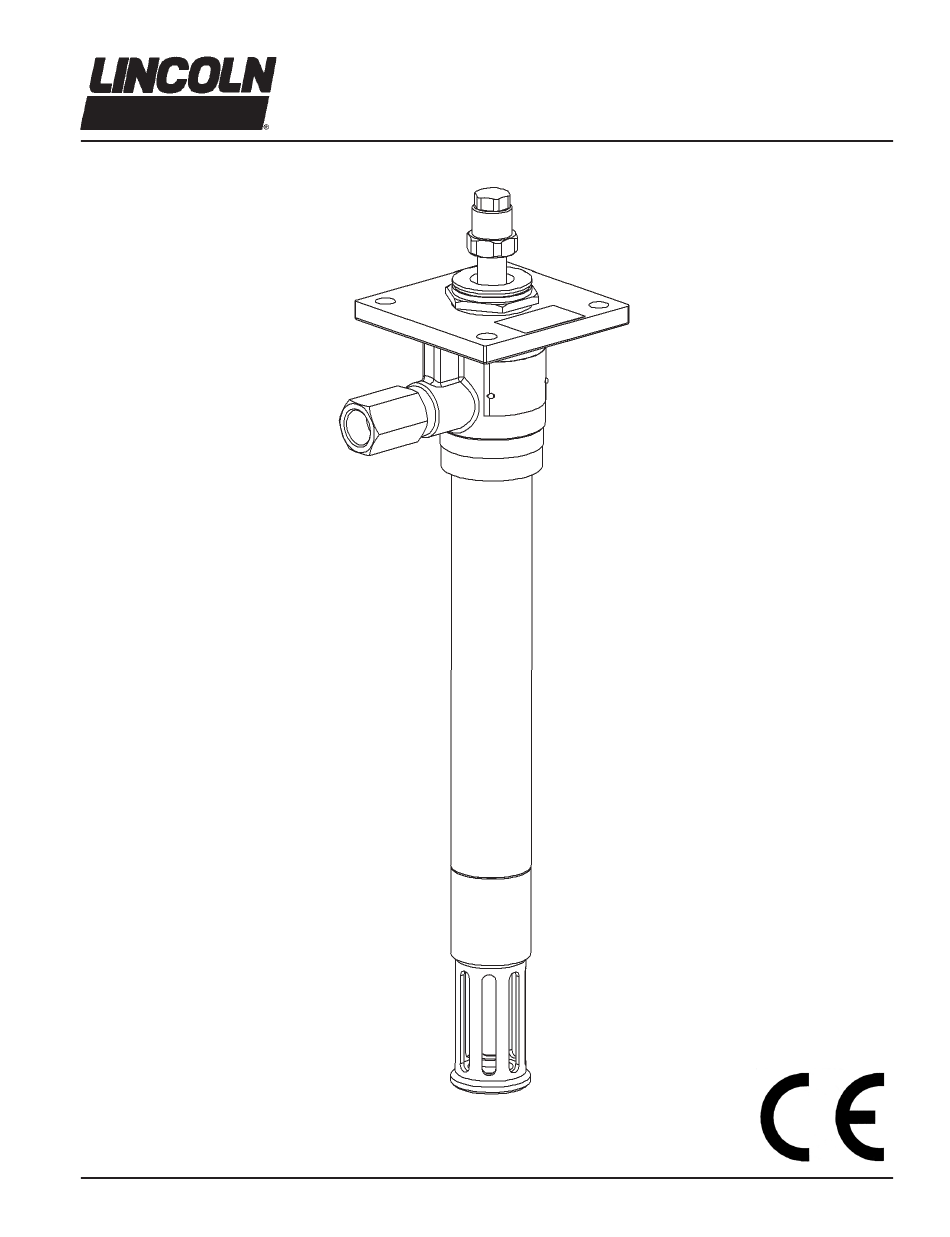

- Page 1 To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Models 84918 and 84919 POWER-MASTER III TRANSFER PUMPS Shovel Type Foot Valve - 91 - A50 AUG - 2009 Section Page Form 403846...
-
Page 2: Owner/Operator Responsibility
To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Models 84918 and 84919 POWER-MASTER III TRANSFER PUMPS Shovel Type Foot Valve OWNER/OPERATOR RESPONSIBILITY It is the responsibility of the Owner/Operator to properly use and maintain this equipment. The Instructions and Warnings contained in this manual shall be read and understood by the Owner/Operator prior to operating... - Page 3 To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Models 84918 and 84919 POWER-MASTER III TRANSFER PUMPS Shovel Type Foot Valve MODEL CHART PUMP PUMP MAXIMUM DELIVERY MAXIMUM AIR DIMENSION “A” DIMENSION “B” AIRMOTOR* RATIO TUBE MODEL PRESSURE psi (bar)
-
Page 4: Operating Precautions
To begin operation, the pump has to be primed with the end of the tie rods). pumped material. The Power-Master III pump is a double act- 2. Mount airmotor on top of the pump tube outlet and tightly ing (pumps material on ‘up’& “down” stroke.) positive displace- connect Coupling Nut (Item 2) to airmotor piston rod. - Page 5 To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Models 84918 and 84919 POWER-MASTER III TRANSFER PUMPS Shovel Type Foot Valve 16. Remove Ball (Item 12), Check Seat (Item 11) and Gas- 17. Remove Outlet Body (Item 14) from Outlet Body (Item 8).
- Page 6 To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Models 84918 and 84919 POWER-MASTER III TRANSFER PUMPS Shovel Type Foot Valve Torque to 65 - 75 Ft. Lbs. Torque to 100-110 Ft. Lbs. Torque to 200 - 220 Torque to 55 - 60 Ft. Lbs.
- Page 7 To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Models 84918 and 84919 POWER-MASTER III TRANSFER PUMPS Shovel Type Foot Valve Torque to 65-75 Ft. Lbs. Torque to 100-110 Ft. Lbs. Torque to 55-60 Ft. Lbs. Torque to 200 - 220 Ft. Lbs.
-
Page 8: Parts List
To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Models 84918 and 84919 POWER-MASTER III TRANSFER PUMPS Shovel Type Foot Valve PARTS LIST Part Number Item No. Description Qty. Model 84918 Model 84919 Bolt Connector 236225 236225 Coupling Nut 237051... -
Page 9: Troubleshooting
To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Models 84918 and 84919 POWER-MASTER III TRANSFER PUMPS Shovel Type Foot Valve TROUBLESHOOTING Problem Possible Cause Solution Pump does not operate. Restricted or inadequate air supply. Check air supply pressure and air hose... - Page 10 SL-V Series, Single Injectors-85772, 85782, and Replacement Injectors-85771, 85781 Lincoln warrants the SL-V Injector series to be free from defects in material and workmanship for two (2) years following the date of purchase. If an injector model (single or replacement) is determined to be defective by Lincoln, in its sole discretion, during this warranty period, it will be repaired or replaced, at Lincoln’s discretion, without charge.
