Lincoln POWERMASTER III Owner's/Operator's Manual

It is the responsibility of the Owner/Operator to properly use and maintain this equipment.
The Instructions and Warnings contained in this manual shall be read and understood by the Owner/Operator prior to operating
this equipment.
It is the responsibility of the Owner/Operator to maintain the legibility of all Warning and Instruction labels.
The Owner/Operator shall retain this manual for future reference to Important Warnings, Operating and Maintenance
Instructions.
DO NOT operate these pumps with 10" airmotor.
DO NOT exceed the stated maximum working pressure of the airmotor or the
lowest rated component in your system.
DO NOT alter or modify any part of this equipment.
DO NOT operate this equipment with combustible gas.
DO NOT attempt to repair or disassemble the equipment while the system Is
pressurized.
TIGHTEN all fluid connections securely before using this equipment
ALWAYS read and follow the fluid manufacturer's recommendations regarding
fluid compatibility, and the use of protective Clothing and equipment.
CHECK all equipment regularlyand repair or replace worn or damaged parts
immediately.
IMPORTANT: Failure to heed these warnings including misuse, overpressur-
izing, modifying parts, using incompatible chemicals and fluids, or using worn or
damaged parts, may result in equipment damage and/or serious personal injury,
fire, explosion, or property damage.
PUMP
TUBE AIRMOTOR* RATIO
84804 75:1
84999
84803 36:1
*Refer to Airmotor Owner/Operator Manual, Section A50 Page 78

SPECIFICATIONS

Pump stroke - 6 in. (152 mm)
Max. recommended speed (continuous) - 75 cycles/min.
Output per cycle: 2.1 cu. in. (34 cc)
Approx. cycles per gallon (liter): 111 (29)
Output at 75 cycles/min.: 0.7 gpm (2.6 liter/min.) n.)
Wetted part materials-Steel, Cast Iron, Brass, Copper, Polyurethane, Nitrile
MAY - 2010
To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com
OWNER/OPERATOR MANUAL
MODEL CHART
MAXIMUM DELIVERY MAXIMUM AIR
PRESSURE PRESSURE
7500 psi (517 bar) 100 psi
7200 psi (497 bar) 200 psi
Form 404141

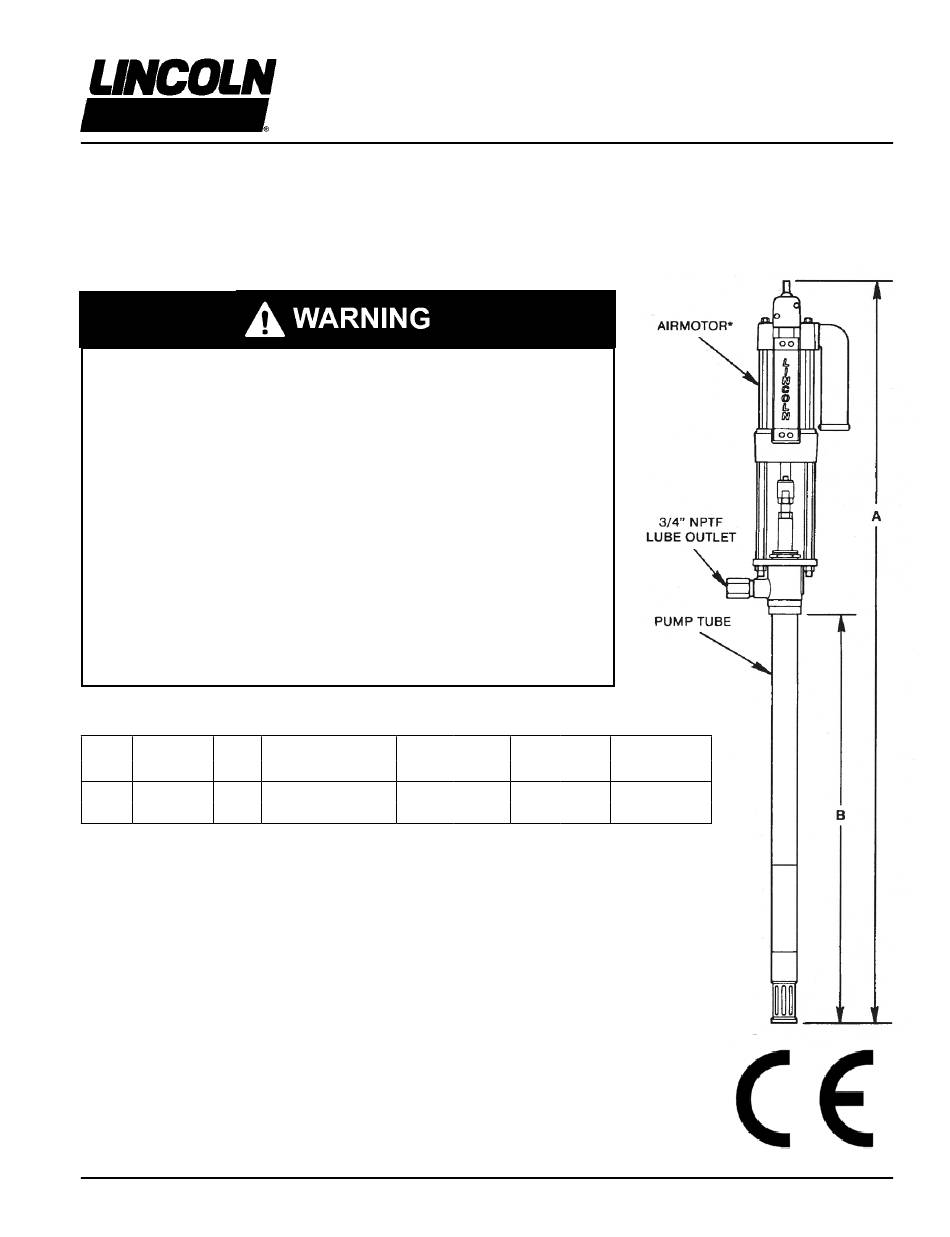

POWERMASTER III DRUM PUMP
Bushing & Plunger / Shovel Type Foot Valve
DIMENSION "A" DIMENSION "B"
in. (cm.) in.
(7 bar)
62-1/8 (158) 34
(14 bar)
Model 84999
(cm.)
(86)
- A50
Section Page
- 93
